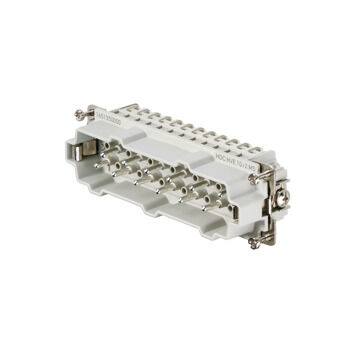

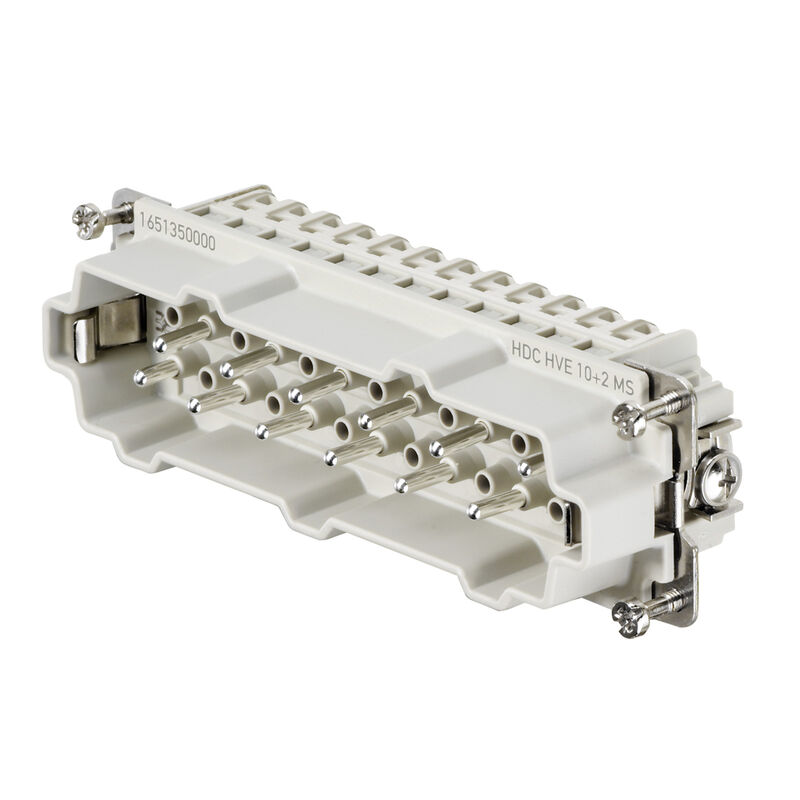

HDC insert, Male, 830 V, 20 A, Number of poles: 12, Screw connection, Installation size: 8

Produkt ID 1651350000
Download datablad Engineering-support Produktdownloads
Tilbehør 2 Anvendte produkter 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dimensions General data Connection data PE Version Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E92202

General ordering data

Version
HDC insert, Male, 830 V, 20 A, Number of poles: 12, Screw connection, Installation size: 8
Order No.
1651350000
Type
HDC HVE 10+2 MS
GTIN (EAN)
4008190299958
Qty.
1 Styk

Dimensions and weights

Depth
111 mm
Depth (inches)
4,37 inch
Height
35,7 mm
Height (inches)
1,406 inch
Width
34 mm
Width (inches)
1,339 inch
Net weight
97 g

Temperatures

Limit temperature
-40 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
Potassium perfluorobutane sulfonate 29420-49-3
SCIP
b67daa31-7dca-434d-8290-da7fb52f83a2
Chemical resistance
  • Substance:
    Acetone
  • Chemical resistance:
    Resistant
  • Substance:
    Ammonia, watery
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Petrol
  • Chemical resistance:
    Resistant
  • Substance:
    Benzene
  • Chemical resistance:
    Resistant
  • Substance:
    Diesel oil
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Acetic acid, concentrated
  • Chemical resistance:
    Resistant
  • Substance:
    Potassium hydroxide
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Methanol
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Motor oil
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Lye, diluted
  • Chemical resistance:
    Resistant
  • Substance:
    Hydrochlorofluorocarbons
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Outdoor use
  • Chemical resistance:
    Conditionally resistant

Dimensions

Height of plug
35,7 mm
Total length base
111 mm
Width
34 mm

General data

Baugröße
8
BG
8
Brennbarkeitsklasse nach UL 94
V-0
Conductor cross-section
2,5 mm²
Coppia di serraggio, min. collegamento PE
1,2 Nm
Durchgangswiderstand
≤2 mΩ
Farbe
beige
Grado di lordura
3
Insulating material
PC glass-fibre reinforced (UL-listed and railway-certified)
Insulating material group
IIIa
Isolationswiderstand
1010 Ω
Low smoke acc. DIN EN 45545-2
Yes
Materiale di base
Copper alloy
Max. torque for main contact
0,55 Nm
Märkspänning enligt UL/CSA
600 V AC/DC
Number of power contacts
10
Number of signal contacts
2
Par de apriete, máx. PE en un lado
1,5 Nm
Plugging cycles, silver
≥ 500
Počet pólů
12
Rated current (DIN EN 61984)
20 A
Rated impulse voltage (DIN EN 61984)
8 kV
Series
HVE
Superficie
Silver passivated
Tightening torque
0,5 Nm
Type
Male
Type of connection
Screw connection
Расчетное напряжение (DIN EN 61984)
830 V
주 접점에 대한 최소 토크
0,5 Nm

Connection data PE

Blade size, slotted (PE connection)
SD 0.8 x 4.0
Connection type PE
Screw connection
Fixing screw
M 4
Rated cross-section
4 mm²
Stripping length PE connection
10 mm
Tightening torque, max. PE connection
1,5 Nm
Tightening torque, min. PE connection
1,2 Nm
Wire cross section, AWG (PE), max.
AWG 12
Wire cross section, AWG (PE), min.
AWG 20

Version

Basic material
Copper alloy
BG
8
Blade size
size PZ0
Blade size, slotted (screw connection)
SD 0.6 x 3.5
Clamping screw
M 3
Conductor cross-section, max.
2,5 mm²
Conductor cross-section, min.
0,5 mm²
Installation size
8
Max. torque for main contact
0,55 Nm
Min. torque for main contact
0,5 Nm
Stripping length, rated connection
9 mm
Surface finish
Silver passivated
Type of connection
Screw connection
Volume resistance
≤2 mΩ
Wire connection cross section AWG, max.
AWG 14
Wire connection cross section AWG, min.
AWG 20
Wire connection cross section, finely stranded, max.
4 mm²
Wire connection cross section, finely stranded, min.
0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,5 mm²
Wire cross-section, solid, max.
4 mm²
Wire cross-section, solid, min.
0,5 mm²

Classifications

ETIM 8.0
EC000438
ETIM 9.0
EC000438
ETIM 10.0
EC000438
ECLASS 14.0
27-44-02-05
ECLASS 15.0
27-44-02-05
