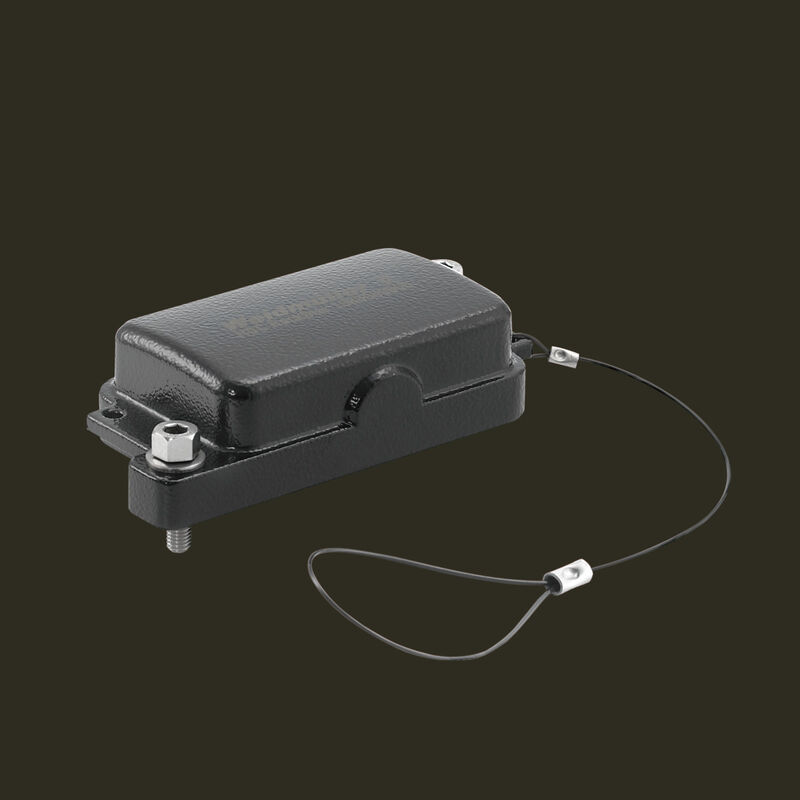

HDC IP68 06B COVER
HDC IP68 06B COVER

HDC IP68 06B COVER

HDC enclosures, Installation size: 3, Protection degree: IP66, IP68, in plugged condition, Cover for lower part of housing, Clamping yoke connection, Standard, Size of cable entries: none

Ürün No. 1083060000
Veri sayfasını indir Engineering Support Product Downloads
Aksesuarlar 1 İlgili ürünler 1
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dimensions General data Version Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319234/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Version
HDC enclosures, Installation size: 3, Protection degree: IP66, IP68, in plugged condition, Cover for lower part of housing, Clamping yoke connection, Standard, Size of cable entries: none
Order No.
1083060000
Type
HDC IP68 06B COVER
GTIN (EAN)
4032248846832
Qty.
1 adet

Dimensions and weights

Depth
132 mm
Depth (inches)
5,197 inch
Height
31 mm
Height (inches)
1,22 inch
Width
58 mm
Width (inches)
2,283 inch
Net weight
149 g

Temperatures

Limit temperature
-50 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Chemical resistance
  • Substance:
    Acetone
  • Chemical resistance:
    Resistant
  • Substance:
    Diesel oil
  • Chemical resistance:
    Unstable
  • Substance:
    Ethyl alcohol
  • Chemical resistance:
    Resistant
  • Substance:
    Transmission oil
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Hydraulic oil
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Petroleum benzine
  • Chemical resistance:
    Unstable
  • Substance:
    Sweat
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Premium gasoline
  • Chemical resistance:
    Unstable
  • Substance:
    Water
  • Chemical resistance:
    Resistant
  • Substance:
    UV
  • Chemical resistance:
    Resistant
  • Substance:
    Ozone
  • Chemical resistance:
    Resistant

Dimensions

Altura capota B
31 mm
Entrada de cable
No
Longitud, caja
132 mm

General data

Boîtiers CEM
Yes
Degré de protection
IP66
IP68
in plugged condition
Matériau de base du boîtier
diecast aluminium
Matériau de l'élément de verrouillage
Stainless steel, rust-proof
Surface
Powder coating
Tightening torque
6,5 Nm

Version

BG
3
Cable entry
No
Clamp version
Clamping yoke connection
Colour (RAL)
RAL 9011
RAL 9005
Cover
with cover
Design
Standard
Design of housing
Cover for lower part of housing
Design of locking system
Clamping yoke connection
Geeignet für ModuPlug®
Yes
Installation size
3
Number of cable entry sideways
0
Number of cable glands
0
Size of cable entries
none
Tightening torque
6,5 Nm
Top part/bottom part/lid
Cover
Type
Cover
Těsnění
no sealing

Classifications

ETIM 8.0
EC000437
ETIM 9.0
EC000437
ETIM 10.0
EC000437
ECLASS 14.0
27-44-02-02
ECLASS 15.0
27-44-02-02
