特性

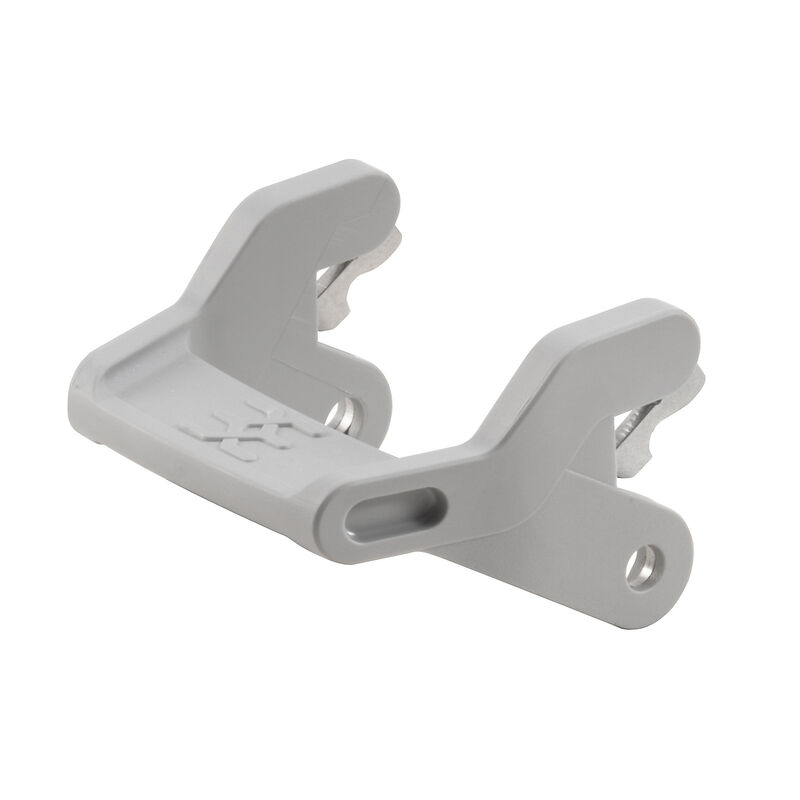

| 版本 | 重载接插件, 附件, 锁定杆 |
| 订货号 | 2535150000 |
| 类型 | HDC LL 10B N |
| GTIN (EAN) | 4050118562057 |
| 数量 | 10 PC |
| 净重 | 18.27 g |
| RoHS 合规状态 | 合规，无例外 |
| REACH SVHC | No SVHC above 0.1 wt% |
| BG |
4
6 8 |

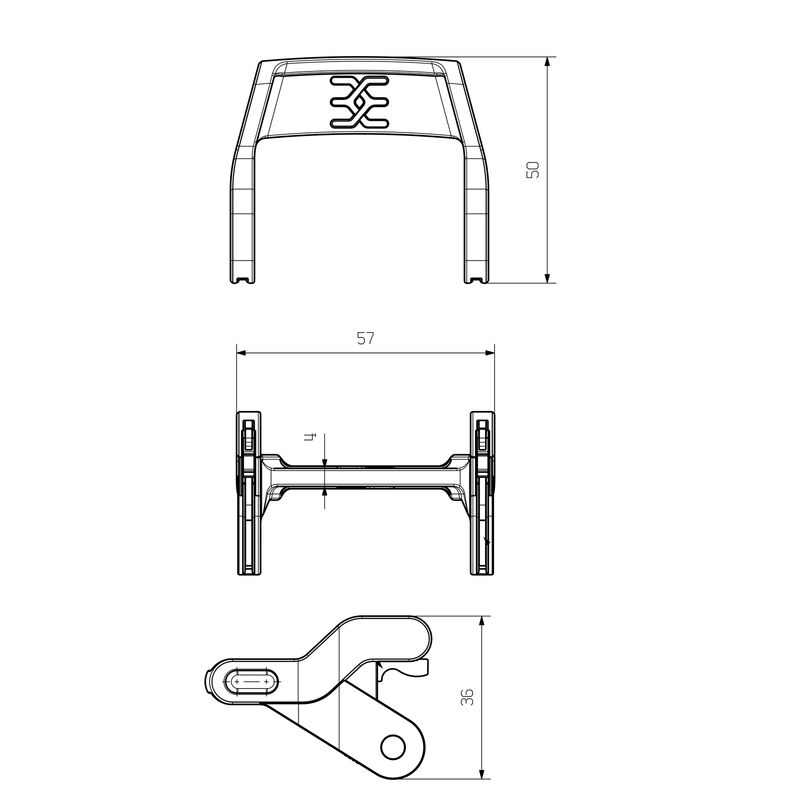

| 产品外形尺寸 |
4
6 8 |
| 机罩设计 | 十字托架 |
| 颜色 (RAL) | RAL 7035 |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2535150000) |
| 产品目录 | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002943 |
| ETIM 7.0 | EC002943 |
| ETIM 8.0 | EC002943 |
| ETIM 9.0 | EC002943 |
| ECLASS 9.0 | 27-44-02-92 |
| ECLASS 9.1 | 27-44-01-92 |
| ECLASS 10.0 | 27-44-02-92 |
| ECLASS 11.0 | 27-44-02-92 |
| ECLASS 12.0 | 27-44-02-92 |
| ECLASS 13.0 | 27-44-02-92 |
| ECLASS 14.0 | 27-44-02-92 |
| ROHS | 一致 |
