Modulo segnale, 400 V, 16 A, Numero di poli: 5, PUSH IN con attuatore, Femmina, Slot a innesto necessari: 1

Produkt ID 2636190000
Download datablad Engineering Support Product Downloads
Tilbehør 24 Modstykker 1 Er et modstykke til 1 Anvendte produkter 105
Tanúsítványok Dati generali per l’ordinazione Dimensioni e pesi Temperatures Conformità ambientale del prodotto General data PE connection data Version Classifications

Tanúsítványok

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
ROHS
Zgodny
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E92202

Dati generali per l’ordinazione

Version
Modulo segnale, 400 V, 16 A, Numero di poli: 5, PUSH IN con attuatore, Femmina, Slot a innesto necessari: 1
Order No.
2636190000
Type
HDC MHE 5 FP
GTIN (EAN)
4050118692594
Qty.
1 Styk

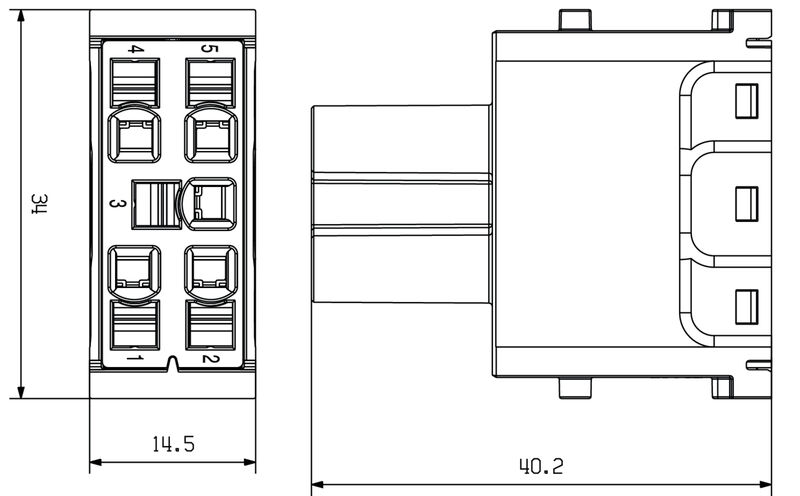

Dimensioni e pesi

Depth
34 mm
깊이 (인치)
1,339 inch
Height
38,9 mm
Height (inches)
1,531 inch
Width
14,5 mm
Width (inches)
0,571 inch
Net weight
19,731 g

Temperatures

Limit temperature
-40 °C ... 125 °C

Conformità ambientale del prodotto

RoHS Compliance Status
Conforme con esenzione
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
Potassium perfluorobutane sulfonate 29420-49-3
SCIP
b67daa31-7dca-434d-8290-da7fb52f83a2

General data

Basic material
Polycarbonate, glass fibre reinforced
Insulation resistance
1012 Ω
Number of poles
5
Plugging cycles
≥ 500
Pollution severity
3
Rated current (DIN EN 61984)
16 A
Rated impulse voltage (DIN EN 61984)
6 kV
Rated voltage (DIN EN 61984)
400 V
Rated voltage according to UL/CSA
600 V
Required plug-in slots
1
Series
ModuPlug
Surge voltage category
III
Type
Female
UL 94 flammability rating
V-0

PE connection data

Connection type PE
Screw connection via module frame

Version

Conductor cross-section, max.
2,5 mm²
Conductor cross-section, min.
0,5 mm²
Stripping length, rated connection
10 mm
Type of connection
PUSH IN with actuator
Wire connection cross section AWG, max.
AWG 14
Wire connection cross section AWG, min.
AWG 20

Classifications

ETIM 8.0
EC000438
ETIM 9.0
EC000438
ETIM 10.0
EC000438
ECLASS 14.0
27-44-02-17
ECLASS 15.0
27-44-02-17
