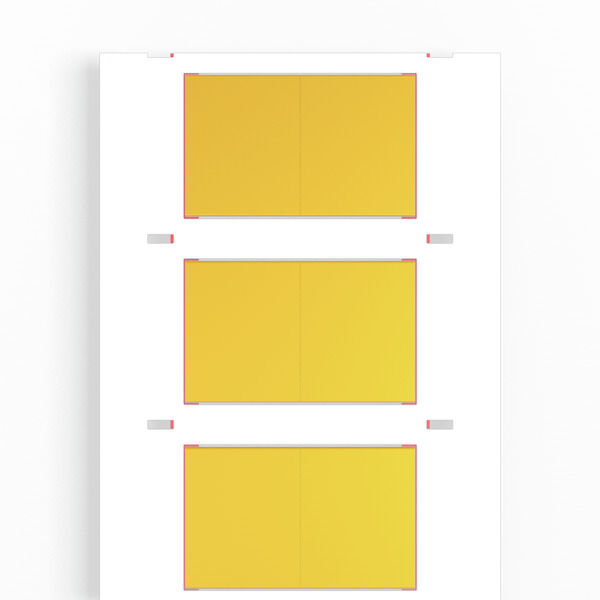

Conductor and cable markers, 9.5 - 19.1 mm, 25.4 x 30.9 mm, yellow

Item No. 2438200000
Download data sheet Product Downloads Engineering Support
Accessories 3 Related products 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dati generali Conductor and cable markers Classifications

Approvals

ROHS
Conform

General ordering data

Version
Conductor and cable markers, 9.5 - 19.1 mm, 25.4 x 30.9 mm, yellow
Order No.
2438200000
Type
HS-HF 9.5-19.1/25 MM Y
GTIN (EAN)
4050118458060
Qty.
800 items

Dimensions and weights

Depth
0.77 mm
Depth (inches)
0.03 inch
Height
25.4 mm
Height (inches)
1 inch
Width
30.9 mm
Width (inches)
1.217 inch
Net weight
0.8 g

Temperatures

Operating temperature range
-55...105 °C

Environmental Product Compliance

Stato conformità RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Dati generali

Anchura
30.9 mm
Art des Aufdrucks
neutral
Caracteres impresos
without
Color
yellow
Gama de temperaturas de servicio
-55...105 °C
Gama de temperaturas de servicio, max.
105 °C
Gama de temperaturas de servicio, min.
-55 °C
Halógenos
No
Impresora compatible
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000)
[THM-TWINMARK](~/p/1140490000)
Material básico
Polyolefine
Number per roll
800

Conductor and cable markers

Conductor cross-section, max.
70 mm²
Conductor cross-section, min.
16 mm²
Conductor O.D.
9.5 - 19.1 mm
Conductor O.D., max.
19.1 mm
Conductor O.D., min.
9.5 mm
Cross-section for connected wire
16 - 70 mm²
Halogen
No
Rate of shrinkage
2:1
Recommended shrinking temperature
90 °C

Classifications

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
