IE-C5DD4UG0150MCAMCA-E

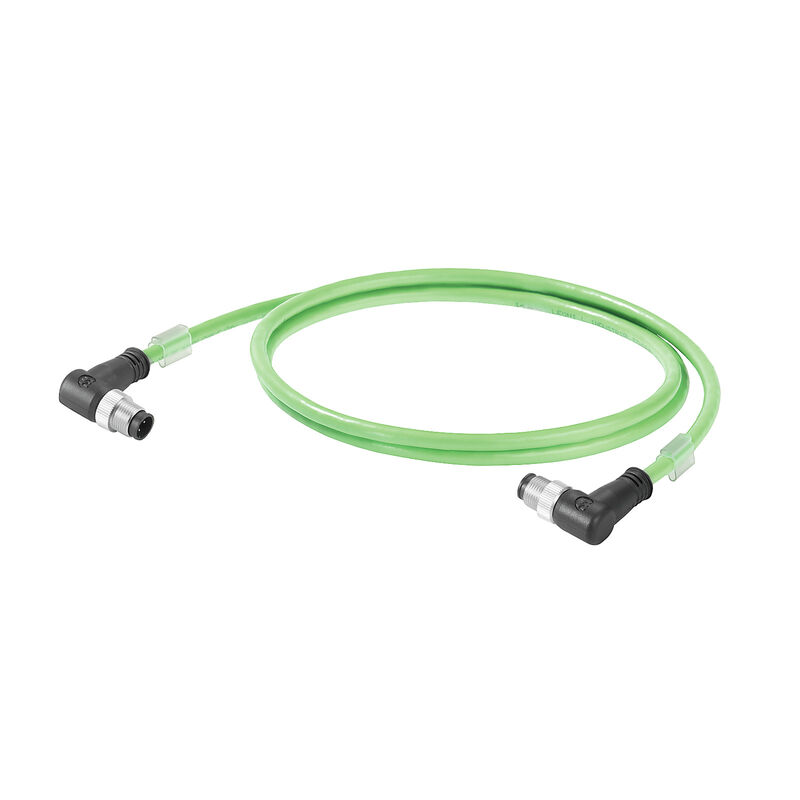

Dragline cable, PROFINET, M12 D-code – IP 67 angled pin, M12 D-code – IP 67 angled pin, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 15 m

Produkt ID 1059890150
Download datablad Engineering-support Produktdownloads
Tilbehør 6 Anvendte produkter 11
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable specific standards General standards Standards Cable structure Electrical properties of cable Mechanical and material properties of cable Plug, left Plug, right Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Сертификат № (cULus)
E316369

General ordering data

Version
Dragline cable, PROFINET, M12 D-code – IP 67 angled pin, M12 D-code – IP 67 angled pin, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 15 m
Order No.
1059890150
Тип
IE-C5DD4UG0150MCAMCA-E
GTIN (EAN)
4050118171655
Qty.
1 Styk

Dimensions and weights

Length
15 m
Length (inches)
590,551 inch
Net weight
959 g

Temperatures

Storage temperature
-50 °C...70 °C
Operating temperature
-40 °C...70 °C
Installation temperature
-20 °C...60 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
Исключение из RoHS (если применимо/известно)
6c
REACH SVHC
Lead 7439-92-1
SCIP
67cf1078-beca-4687-860b-dc475a6ec24a

Cable specific standards

Standard, insulating material
DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3)
Standard, shielding material
DIN EN 13602 Cu-ETP-A..B
Standard, wire material
DIN EN 13602 Cu-ETP-A

General standards

Certificate no. (cULus)
E316369

Standards

Norm Schirmmaterial
DIN EN 13602 Cu-ETP-A..B
Standard, insulating material
DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3)
Standard, wire material
DIN EN 13602 Cu-ETP-A

Cable structure

Diametro guaina, max.
6,7 mm
Diametro guaina, min.
6,3 mm
Disposizione dei fili
Star-quad
Grubość materiału płaszcza
0,9 mm
Grubość oplotu ekranującego
0,13 mm
Isolamento
PE
Materiale rivestimento
PUR
Materiał przewodowy
Stranded tin-plated copper wire
Number of wires
4
Overlap of shielding braid
85 %
Riempitore
As central element
Sección
4*AWG 22/7 - 0.32 mm²
Sekwencja kolorów żył - pary żył
white, yellow, blue, orange
Sheathing colour
green (RAL 6018)
Shielding
SF/UTP
Spessore isolamento fili
0,38 mm
Standard designations
2YH(ST)C11Y 2x2x0,75/1,5-100 LI VZN GN FRNC
Strands
7
Szigetelés keresztmetszete
1,5 mm
Średnica płaszcza wewnętrznego
3,9 mm
완전 차폐
Aluminium foil
Shielding braid made from copper wiring

Electrical properties of cable

Characteristic impedance
100 ± 15 Ω at 1–100 MHz
Delay skew
40 ns/100m
Kategoria
Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
Operating voltage (UL rating)
600 V
Operating voltage, UL
600 V
Pojemność przy 1 kHz
52 nF/km
Prędkość
180 m/min
Resistance differential
3 %
Rezystancja pętli
120 Ω/km
Transfer impedance
20 mΩ/m at 10 MHz
Время прохождения сигнала
5,3 ns/m
Испытательное напряжение: провод–провод–экран
2000 Veff, 50 Hz, 1 min

Mechanical and material properties of cable

Acceleration
4 m/s²
Hajlítási ciklusok
3 Mio
Halogene
halogen-free, according to IEC 60754-2
Min. bending radius, repetitive
7.5 x cable diameter
Min. hajlítási sugár, csak egyszer
5 x cable diameter
Resistance to oils
in accordance with IEC 60811-2-1
Resistenza all'abrasione
very good
Resistenza alla fiamma
in accordance with IEC 60332-1
Silicone-free
Yes
UV-resistant
Yes
Velocità
180 m/min
Ziehkraft
≤ 150 N
화재 확산
No

Plug, left

Wtyk po lewej
M12, D-coded, IP67, male contact, angled 90°, plug, Plastic, shielded

Plug, right

Plug right
M12, D-coded, IP67, male contact, angled 90°, plug, Plastic, shielded

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-07
