Wiring diagram

IE-C5DS4VG0150A60A60-E

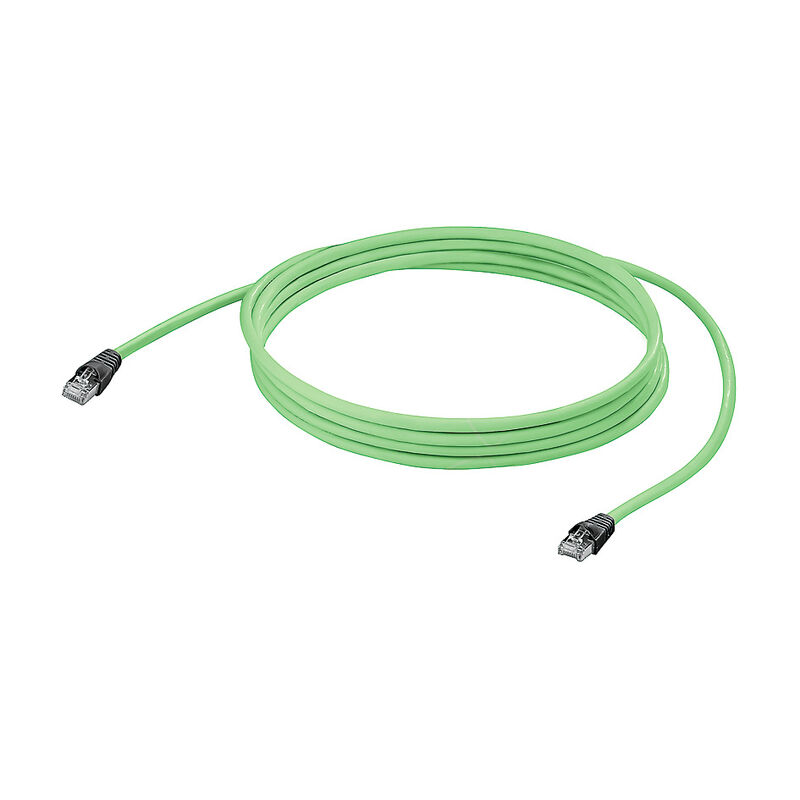

System cable, RJ45 IP 20, RJ45 IP 20, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PVC, 15 m

Ürün No. 1522100150
Veri sayfasını indir Ürün İndirmleri
İlgili ürünler 34
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable specific standards Standards Cable structure Electrical properties of cable Mechanical and material properties of cable Plug, left Plug, right Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
System cable, RJ45 IP 20, RJ45 IP 20, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PVC, 15 m
Order No.
1522100150
Type
IE-C5DS4VG0150A60A60-E
GTIN (EAN)
4050118333725
Qty.
1 adet

Dimensions and weights

Length
15 m
Length (inches)
590,551 inch
Net weight
940 g

Temperatures

Storage temperature
-40 °C...80 °C
Operating temperature
-40 °C...70 °C
Installation temperature
-40 °C...80 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Cable specific standards

Standard, assembly
UL-Style 21694
Standard, insulating material
DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3)
Standard, shielding material
DIN EN 13602 Cu-ETP-A..B
Standard, wire material
DIN EN 13602 Cu-ETP-A

Standards

Standard, assembly
UL-Style 21694
Standard, insulating material
DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3)
Standard, shielding material
DIN EN 13602 Cu-ETP-A..B
Standard, wire material
DIN EN 13602 Cu-ETP-A

Cable structure

PE
Arrangement of wire cores
Star-quad
Complete shielding
Aluminium foil
Shielding braid made from copper wiring
Cross-section
4*AWG 22/7 - 0.32 mm²
Diameter of inner sheathing
4,05 mm
Filler
As central element
Insulation cross-section
1,5 mm
Material sheath
PVC
Number of wires
4
Překrývání opletu stínění
85 %
Secuencia de los colores conductores – pares de conductores
white, yellow, blue, orange
Sheath diameter, max.
6,7 mm
Sheath diameter, min.
6,3 mm
Sheathing colour
green (RAL 6018)
Shielding
SF/UTP
Shielding braid thickness
0,13 mm
Standard designations
2YY(ST)CY 2x2x0,75/1,5-100 LI VZN GN
Strands
7
Stärke Mantelmaterial
0,9 mm
Wire material
Stranded tin-plated copper wire

Electrical properties of cable

Catégorie
Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
Impedancja przejścia
20 mΩ/m at 10 MHz
Jelterjedési idő
5,3 ns/m
Operating voltage (UL rating)
600 V
Résistance de boucle
120 Ω/km
Tensione di prova: filo-filo-schermo
2000 Veff, 50 Hz, 1 min
Характеристический импеданс
100 ± 5 Ω at 100MHz
작동 전압, UL
600 V

Mechanical and material properties of cable

Abrasion resistance
good
Halogen
Yes
Min. bending radius, once only
3.5 *diameter
Min. bending radius, repetitive
7.5 x cable diameter
Resistance to spread of flame
in accordance with IEC 60332-1 / UL 1685

Plug, left

Plug left
RJ45, IP20, male contact, straight, plug, Plastic, shielded

Plug, right

Plug right
RJ45, IP20, male contact, straight, plug, Plastic, shielded

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-08
