IE-C5DS4VG0200A60A60-E
IE-C5DS4VG0200A60A60-E
Wiring diagram

IE-C5DS4VG0200A60A60-E

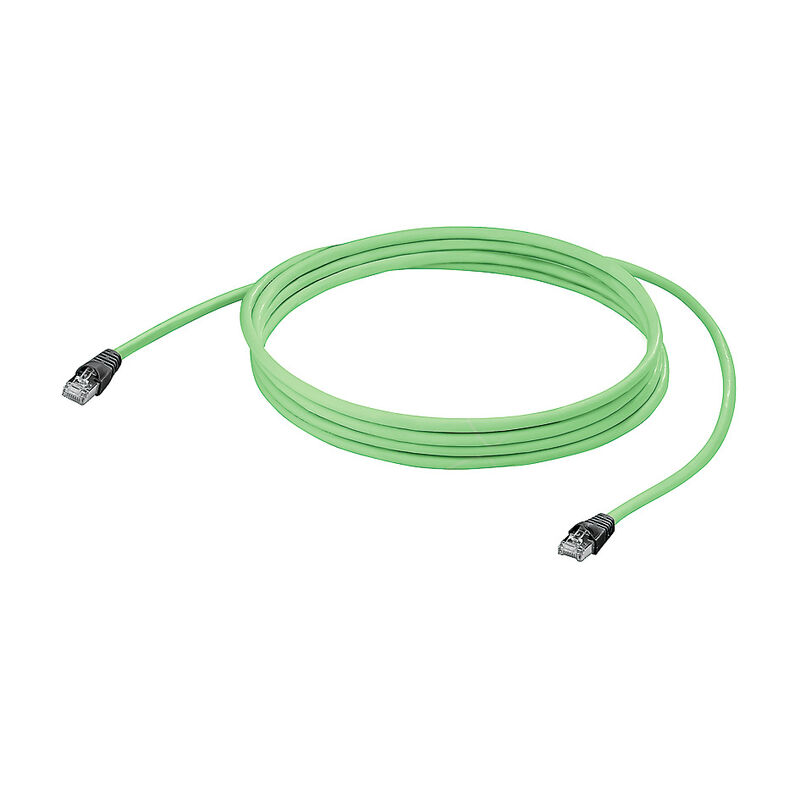

System cable, RJ45 IP 20, RJ45 IP 20, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PVC, 20 m

Produkt ID 1522100200
Download datablad Produktdownloads
Anvendte produkter 34
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable specific standards Standards Constitution du câble Propriétés électriques du câble Механические свойства и свойства материала кабеля Plug, left Plug, right Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
System cable, RJ45 IP 20, RJ45 IP 20, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PVC, 20 m
Référence
1522100200
Type
IE-C5DS4VG0200A60A60-E
GTIN (EAN)
4050118333640
Qty.
1 Styk

Dimensions and weights

Length
20 m
Length (inches)
787,402 inch
Net weight
1.351 g

Temperatures

Storage temperature
-40 °C...80 °C
Operating temperature
-40 °C...70 °C
Installation temperature
-40 °C...80 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Cable specific standards

Standard, assembly
UL-Style 21694
Standard, insulating material
DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3)
Standard, shielding material
DIN EN 13602 Cu-ETP-A..B
Standard, wire material
DIN EN 13602 Cu-ETP-A

Standards

Standard, assembly
UL-Style 21694
Standard, insulating material
DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3)
Standard, shielding material
DIN EN 13602 Cu-ETP-A..B
Standard, wire material
DIN EN 13602 Cu-ETP-A

Constitution du câble

Arrangement of wire cores
En quatre étoiles
Colour sequence or wires - wire pairs
bianco, giallo, blu, arancione
Complete shielding
알루미늄 호일
구리 배선으로 제조된 차폐 편주
Cross-section
4*AWG 22/7 - 0.32 mm²
Diameter of inner sheathing
4,05 mm
Filler
В качестве центрального элемента
Insulation
PE
Insulation cross-section
1,5 mm
Material sheath
PVC
Number of wires
4
Overlap of shielding braid
85 %
Sheath diameter, max.
6,7 mm
Sheath diameter, min.
6,3 mm
Sheathing colour
green (RAL 6018)
Sheathing material thickness
0,9 mm
Shielding
SF/UTP
Shielding braid thickness
0,13 mm
Standard designations
2YY(ST)CY 2x2x0,75/1,5-100 LI VZN GN
Strands
7
Wire material
Stranded tin-plated copper wire

Propriétés électriques du câble

Category
Cat.5 (ISO/CEI 11801)/Cat.5e (TIA T568-B)
Characteristic impedance
100 ± 5 Ω 100MHz-en
Loop resistance
120 Ω/km
Operating voltage, UL
600 V
Provozní napětí (UL klasifikace)
600 V
Signal propagation time
5,3 ns/m
Test voltage: wire-wire-shield
2000 Veff, 50 Hz, 1 min
Transferimpedanz
20 mΩ/m at 10 MHz

Механические свойства и свойства материала кабеля

Halogen
Ja
Min. bending radius, repetitive
7.5 x cable diameter
Radio de flexión, mín., Único
3.5 *diameter
Resistencia a la abrasión
good
Retardo de llama
in accordance with IEC 60332-1 / UL 1685

Plug, left

Plug left
RJ45, IP20, male contact, straight, plug, Plastic, shielded

Plug, right

Plug right
RJ45, IP20, male contact, straight, plug, Plastic, shielded

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-07
