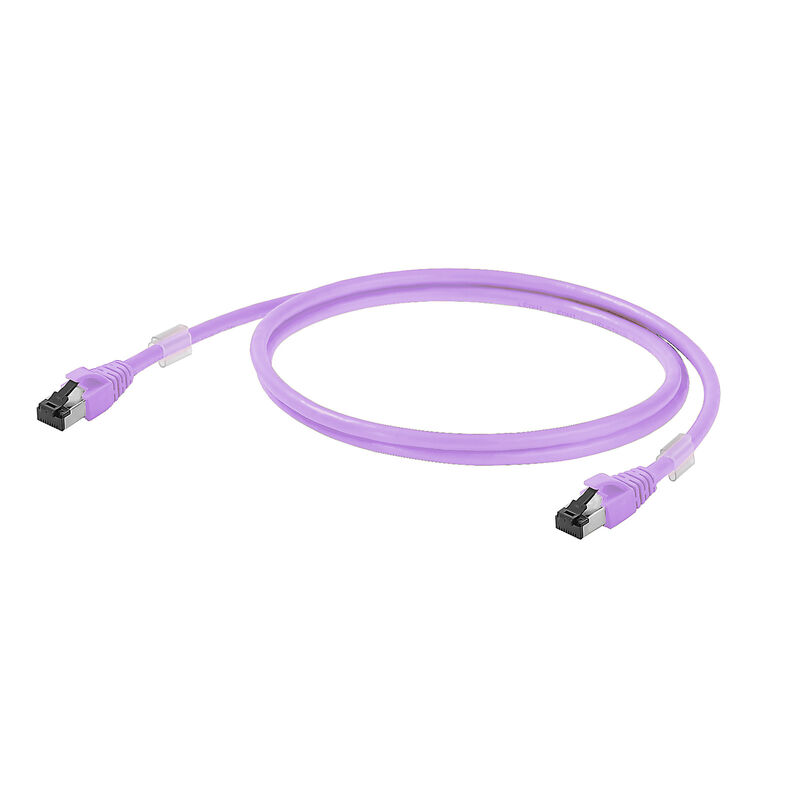

Patch cable, RJ45 IP 20, RJ45 IP 20, <20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010), LSZH, 10 m

Product ID 2701550100
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Toebehoren 2 Verwante producten 12
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance 전기 속성 General standards Standards 케이블 구조 Electrical properties of cable Mechanical and material properties of cable Plug Plug, left Plug, right Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/c4bf74a6-04a5-4e4b-82e5-d75bdf1b56fe/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Zgodny
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
인증 번호(cULus)
E316369

General ordering data

Version
Patch cable, RJ45 IP 20, RJ45 IP 20, <20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010), LSZH, 10 m
주문 번호
2701550100
Type
IE-C6FP8LV0100M40M40-V
GTIN (EAN)
4050118769173
Qty.
1 items

Dimensions and weights

Length
10 m
Length (inches)
393.701 inch
Net weight
417 g

Temperatures

Storage temperature
-20 °C...60 °C
Operating temperature
-20 °C...60 °C
Installation temperature
0 °C...50 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Bez SVHC powyżej 0,1 wt%

전기 속성

50 °C에서 전류 전달 용량
1 A
PoE / PoE+
conforming to IEEE 802.3at

General standards

응용 분야별 통신 케이블 설비
ANSI / TIA / EIA-568-B.2-10
ISO / IEC 11801:2002
EN50173-1:2007
인증 번호(cULus)
E316369
커넥터 표준
IEC 60603-7-51

Standards

커넥터 표준
IEC 60603-7-51

케이블 구조

Apantallamiento par de conductores
Aluminiumfolie
Arrangement of wire cores
Twisted pair
Complete shielding
Shielding braid made from copper wiring
Materiál pláště
LSZH
Průměr pláště, min.
5.5 mm
Recouvrement par tressage de blindage
60 %
Vezetékek – vezetékpárok színsorrendje
white - blue, white - orange, white - green, white - brown
꼬임
7
단면적
4*2*AWG 27/7 - 4*2*0.1 mm²
와이어 개수
8
외피 색상
violet
외피 직경, 최대
5.9 mm
절연
PE
절연재 단면적
1.04 mm
차폐
S/FTP

Electrical properties of cable

Capacity at 1 kHz
46 nF/km
Categoria
<20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010)
Characteristic impedance
100 ± 15 Ω at 1–100 MHz
Coupling attenuation up to 1000 MHz
80 dB
Coupling resistance at 10 MHz / m
5 mΩ
Delay skew
2.5 ns/100m
Operating voltage
50 V DC
Operating voltage (UL rating)
30 V AC / 42.4 V DC
Resistance differential
5 %
Separating class according to EN 50174-2
d
Test voltage: wire-wire-shield
2.5 kV / DC for 2 sec
Átviteli sebesség
10 Gbit/s

Mechanical and material properties of cable

Färgkod
violet
Halogenki
halogen-free, according to IEC 60754-2
최소 구부림 반경, 한 번만
4 x cable diameter
화염 내성
in accordance with IEC 60332-2-2
in accordance with IEC 60332-1-2
in accordance with IEC 60332-3-24
in accordance with UL 2556 (FT1)

Plug

Wtyk po lewej
RJ45, IP20, male contact, straight, plug, Plastic, shielded
Штекер правый
RJ45, IP20, male contact, straight, plug, Plastic, shielded

Plug, left

플러그 좌측
RJ45, IP20, male contact, straight, plug, Plastic, shielded

Plug, right

플러그 우측
RJ45, IP20, male contact, straight, plug, Plastic, shielded

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-08
