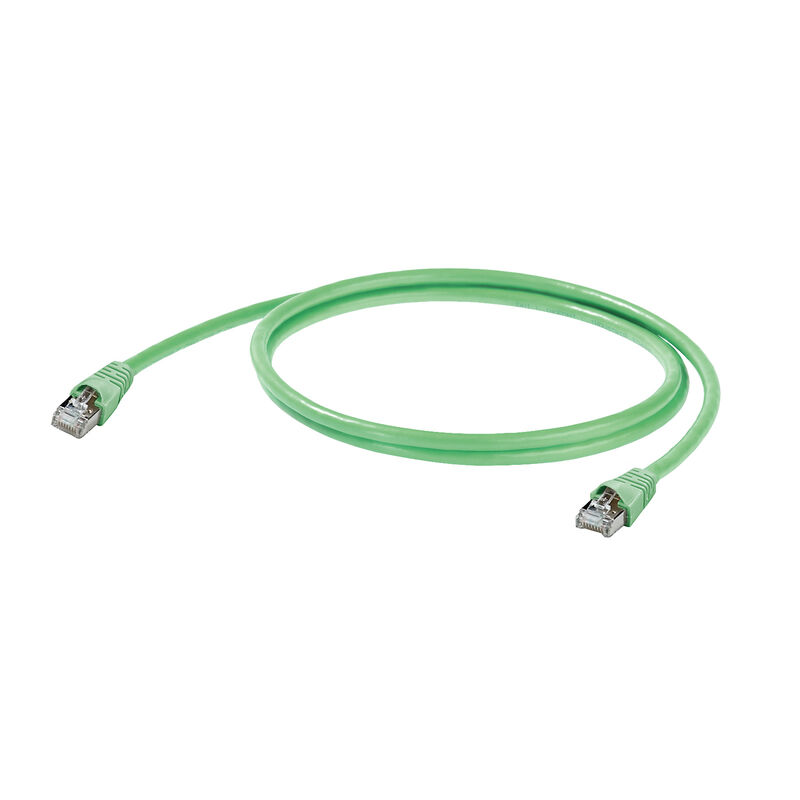

System cable, RJ45 IP 20, RJ45 IP 20, <20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010), PUR, 1 m

Produkt ID 8941350010
Download datablad Engineering-support Produktdownloads
Tilbehør 2 Anvendte produkter 24
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable specific standards Electrical properties General standards Standards Cable structure Electrical properties of cable Mechanical and material properties of cable Plug Plug, left Plug, right Classifications

Approvals

Zulassungen
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E316369

General ordering data

Version
System cable, RJ45 IP 20, RJ45 IP 20, <20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010), PUR, 1 m
Best.-Nr.
8941350010
Type
IE-C6FS8UG0010A40A40-G
GTIN (EAN)
4032248734597
Cantidad
1 Styk

Dimensions and weights

Length
1 m
Length (inches)
39,37 inch
Net weight
52,8 g

Temperatures

Storage temperature
-40 °C...85 °C
Operating temperature
-40 °C...85 °C
Installation temperature
-10 °C...60 °C

Environmental Product Compliance

RoHS megfelelőségi állapot
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Cable specific standards

Generic communication cable facilities
ISO / IEC 11801:2002
ANSI / TIA / EIA-568-B.2-10
EN 50173-1:2007
Korozyjność gazów pożarowych
According to EN50288-2-2

Electrical properties

PoE / PoE+
conforming to IEEE 802.3at

General standards

Certificate no. (cULus)
E316369
Connector standard
IEC 60603-7-51

Standards

Connector standard
IEC 60603-7-51
Corrosiveness of fumes
According to EN50288-2-2
Generic communication cable facilities
ISO / IEC 11801:2002
ANSI / TIA / EIA-568-B.2-10
EN 50173-1:2007

Cable structure

Arrangement of wire cores
Twisted pair
Colour sequence or wires - wire pairs
white - blue, white - orange, white - green, white - brown
Complete shielding
Shielding braid made from copper wiring
Cross-section
4*2*AWG 27/7 - 4*2*0.1 mm²
Insulation
PE
Insulation cross-section
1,02 mm
Material sheath
PUR
Number of wires
8
Overlap of shielding braid
60 %
Sheath diameter, max.
6,4 mm
Sheath diameter, min.
6 mm
Sheathing colour
green
Shielding
S/FTP
Strands
7
Wire material
Stranded tin-plated copper wire
Wire pair shielding
Aluminium foil

Electrical properties of cable

Capacity at 1 kHz
46 nF/km
Category
<20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010)
Charakteristická impedance
100 ± 15 Ω at 1–100 MHz
100 ± 22 Ω at 100–250 MHz
100 ± 25 Ω at 250–600 MHz
Delay skew
25 ns/100m
Signal propagation time
4,27 ns/m
Test voltage: wire-wire-shield
750 V DC, 1 min
Transmission rate
10 Gbit/s

Mechanical and material properties of cable

Abrasion resistance
very good
Corrosiveness of fumes
According to EN50288-2-2
Halogener
halogen-free, according to IEC 60754-2
Min. bending radius, once only
5 x cable diameter
Min. bending radius, repetitive
10 x cable diameter
Odporność na olej
in accordance with IEC 60811-2-1
Resistance to spread of flame
in accordance with IEC 60332-1 / UL 1581 FT2
UV-resistant
Yes
не содержится силикона
Yes

Plug

Spina di collegamento a destra
RJ45, IP20, male contact, straight, plug, Plastic, shielded
플러그 좌측
RJ45, IP20, male contact, straight, plug, Plastic, shielded

Plug, left

Plug left
RJ45, IP20, male contact, straight, plug, Plastic, shielded

Plug, right

플러그 우측
RJ45, IP20, male contact, straight, plug, Plastic, shielded

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-08
