特性

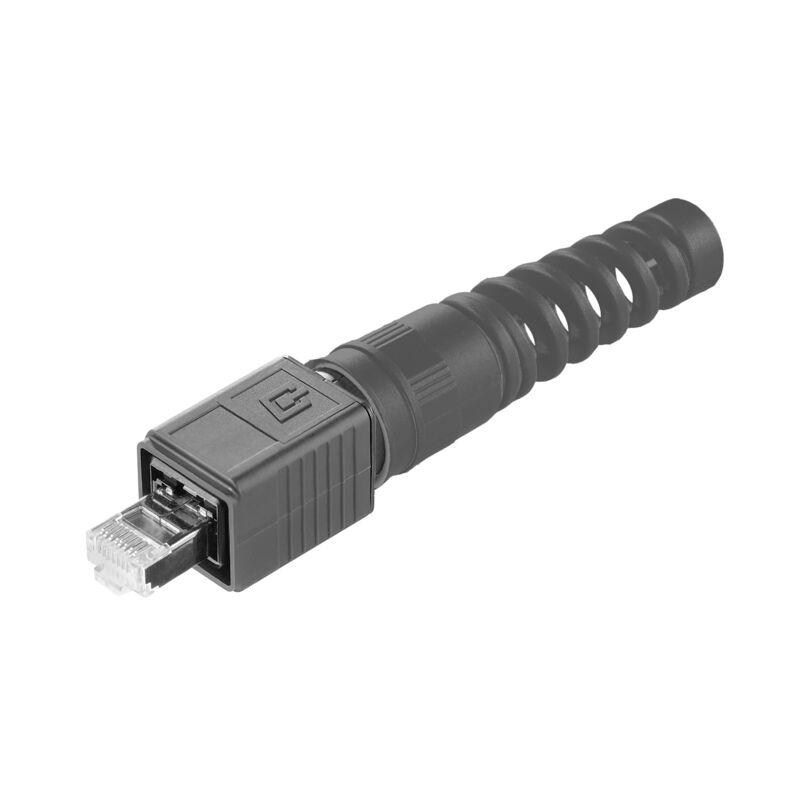

| 版本 | RJ45 压接插头, 类别4, 带扭折保护, Cat.6A / Class EA (ISO/IEC 11801 2010) |
| 订货号 | 1963190000 |
| 类型 | IE-PS-V04P-RJ45-TH-BP |
| GTIN (EAN) | 4032248651672 |
| 数量 | 1 PC |
| 净重 | 2.7 g |
| 工作温度 | -40 °C...70 °C |
| RoHS 合规状态 | 合规，无例外 |
| REACH SVHC | No SVHC above 0.1 wt% |
| 端口1 | RJ45 |
| 端口 2 | Crimp |
| 物品描述 | 类别4, 带扭折保护 |
| 外壳基本材料 | PA UL 94 V0 |
| 最小绝缘直径 | 0.85 mm |
| 最大绝缘直径 | 1.05 mm |
| 目录册 | Cat.6A / Class EA (ISO/IEC 11801 2010) |
| 插针镀层 | 镍镀金 |
| 连接线经，硬导线 | 0.36...0.51 mm |
| 连接导线截面积，硬导线 (AWG) | AWG 26/1...AWG 24/1 |
| 连接直径，软导线 | 0.46...0.61 mm |
| 连接导线截面积，软导线 (AWG) | AWG 27/7...AWG 24/7 |
| MICE-分类 M | M3 |
| MICE-分类 I | I3 |
| MICE-分类 C | C1 |
| MICE-分类 E | E3 |
| 最小护套直径 | 5 mm |
| 最大护套直径 | 10 mm |
| 屏蔽 | 360度；全封闭外壳 |
| 防护等级 | IP67 |
| 插拔次数 | 750 |
| 介电强度，触点-触点 | ≥ 1000 V AC/DC |
| 电源联接器耐压强度，触点-触点，最小 | ≥ 1500 V AC/DC |
| 证书号 (cULus) | E316369 |
| 连接器标准 |
IEC 61076-3-106 型号4
IEC 60603-7-51 |
| 认证/证书/一致性声明 |
[GOST Approval](https://mdcop.weidmueller.com/mediadelivery/asset/900_58423)
[ISO/IEC EN and TIA/EIA Screened Class EA Category 6A, 4 connector channel](https://mdcop.weidmueller.com/mediadelivery/asset/900_58439) [DUXR.E316369](https://mdcop.weidmueller.com/mediadelivery/asset/900_58418) |
| 工程数据 | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_192269) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1963190000) |
| 产品更改通知 |
[20210412 Technical change for cap nut V1 and V4](https://mdcop.weidmueller.com/mediadelivery/asset/900_207360)
[20210412 Technische Änderung zu Hutmutter V1 und V4](https://mdcop.weidmueller.com/mediadelivery/asset/900_207361) |
| 用户文档 |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) [Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_96752) |
| 产品目录 | [Catalogues in PDF-format](LINK/Catalog.html) |
| 样本 |
[MB FREECONCONTACT EN](http://download.weidmueller.com/asset/download/file/38173)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC001121 |
| ETIM 7.0 | EC001121 |
| ETIM 8.0 | EC001121 |
| ETIM 9.0 | EC001121 |
| ECLASS 9.0 | 27-44-03-90 |
| ECLASS 9.1 | 27-44-03-90 |
| ECLASS 10.0 | 27-44-03-90 |
| ECLASS 11.0 | 27-44-03-90 |
| ECLASS 12.0 | 27-44-03-90 |
| ECLASS 13.0 | 27-44-03-90 |
| ECLASS 14.0 | 27-44-03-90 |
| 认证 |  |
| ROHS | 一致 |
| UL File Number Search | [UL 网站](LINK/UL_search.html) |
| 证书号 (cULus) | E316369 |
