特性

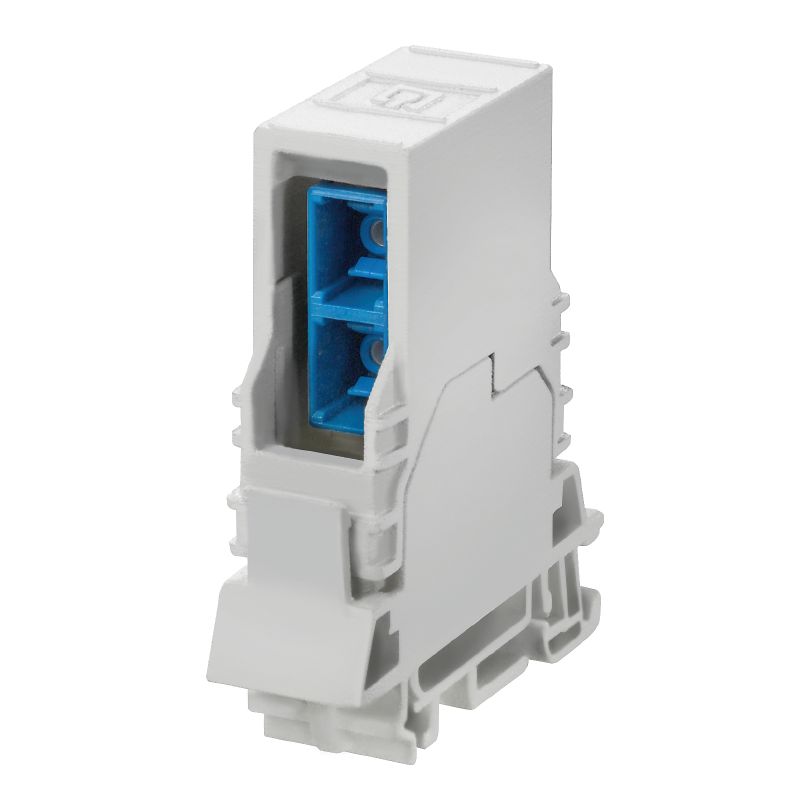

| 版本 | 安装导轨出线， 光纤, SC双工, 单模, IP20 |
| 订货号 | 8946980000 |
| 类型 | IE-TO-SCD-SM |
| GTIN (EAN) | 4032248734993 |
| 数量 | 1 PC |
| 净重 | 40 g |
| 工作温度 | -40 °C...70 °C |
| RoHS 合规状态 | 合规，无例外 |
| REACH SVHC | No SVHC above 0.1 wt% |
| 光纤类型 | 单模 |
| 外壳基本材料 | PA UL 94 V0 |
| 安装方式 | TS 35 |
| 插入损耗 | ≤ 0.5 dB |
| 插拔次数 | 1000 |
| 端口 2 | SC双工 |
| 端口1 | SC双工 |
| 防护等级 | IP20 |
| 颜色编码 | 浅灰 |
| UL 证书号 | E477798 |
| 连接器标准 | IEC 61754-4 |
| 工程数据 | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_104109) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8946980000) |
| 用户文档 |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) [Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_91194) |
| 产品目录 | [Catalogues in PDF-format](LINK/Catalog.html) |
| 样本 |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC000313 |
| ETIM 7.0 | EC000313 |
| ETIM 8.0 | EC000313 |
| ETIM 9.0 | EC000313 |
| ECLASS 9.0 | 27-44-03-20 |
| ECLASS 9.1 | 19-17-01-25 |
| ECLASS 10.0 | 27-44-03-20 |
| ECLASS 11.0 | 27-44-03-20 |
| ECLASS 12.0 | 27-44-03-20 |
| ECLASS 13.0 | 27-44-03-20 |
| ECLASS 14.0 | 27-44-03-20 |
| 认证 |  |
| ROHS | 一致 |
| UL File Number Search | [UL 网站](LINK/UL_search.html) |
| UL 证书号 | E477798 |
