IE-XRJ45/IDC
IE-XRJ45/IDC

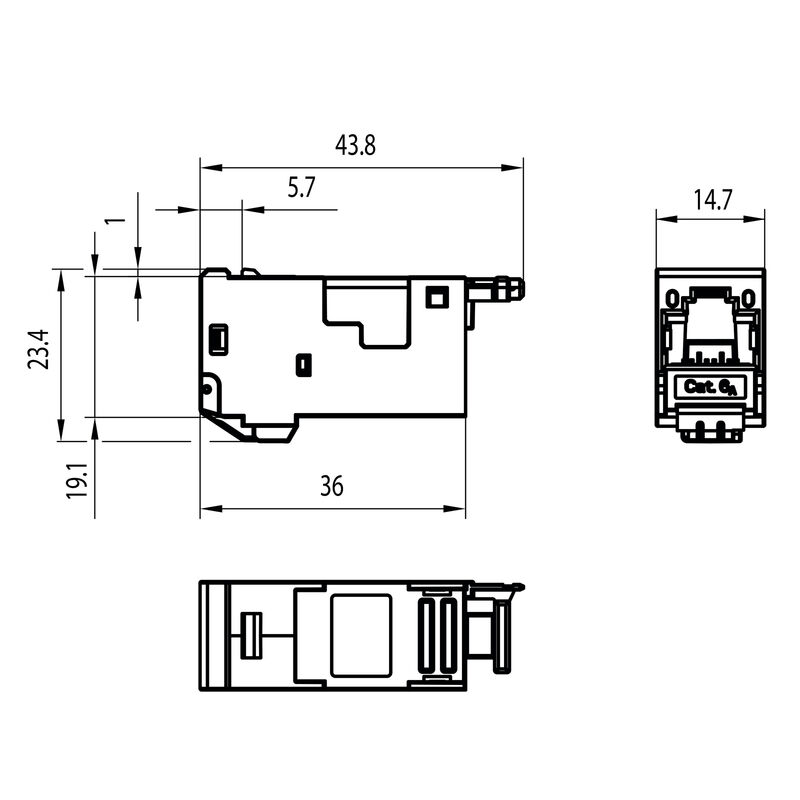

Dimensioned drawing
IE-XRJ45/IDC

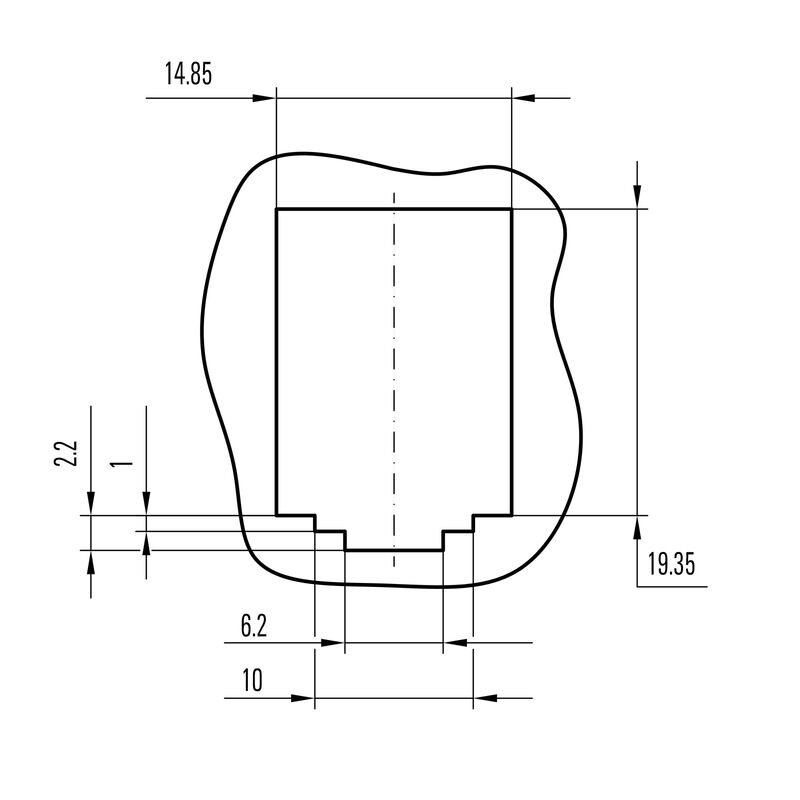

Installation cut-out

IE-XRJ45/IDC

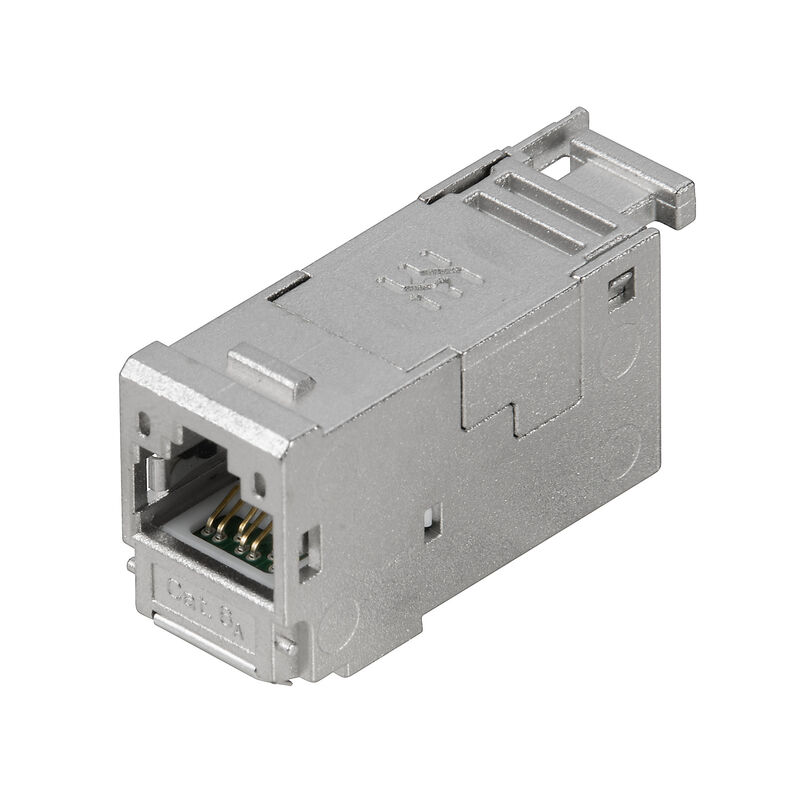

Flange insert, Cat.6A / Class EA (ISO/IEC 11801 2010), IP20

Produkt ID 8808330000
Download datablad Engineering Support Product Downloads
Er tilbehør til 4 Anvendte produkter 3
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data 전기 속성 Normas generales Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319234/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Ausfuehrung
Flange insert, Cat.6A / Class EA (ISO/IEC 11801 2010), IP20
Order No.
8808330000
Type
IE-XRJ45/IDC
GTIN (EAN)
4032248505913
Qty.
1 Styk

Dimensions and weights

Height
23,4 mm
Height (inches)
0,921 inch
Width
14,7 mm
Width (inches)
0,579 inch
Length
43,8 mm
Length (inches)
1,724 inch
Wall thickness, min.
1,45 mm
Wall thickness, max.
1,55 mm
Net weight
24,64 g

Temperatures

Operating temperature
-40 °C...70 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Connection 1
RJ45
Connection 2
IDC
Wiring
TIA-568A
TIA-568B
PROFINET
Housing main material
Zinc diecast
Insulation cross-section, max.
1,8 mm
Category
Cat.6A / Class EA (ISO/IEC 11801 2010)
Contact surface
Gold over nickel
Connection diameter, solid
0.41...0.64 mm
Conductor connection cross-section, solid (AWG)
AWG 26...AWG 22
Conductor connection cross-section, solid
0.13...0.32 mm²
Connection diameter, flexible
0.48...0.76 mm
Conductor connection cross-section, flexible (AWG)
AWG 26...AWG 22
Wire connection cross section, finely stranded, min.
0,141 mm²
Conductor connection cross-section, flexible
0.14...0.35 mm²
Shielding
360° shield contact
Protection degree
IP20
Insertion force
20 N
Plugging cycles
750

전기 속성

Contact resistance
≤ 20 mΩ
Dielectric strength, contact / contact
≥ 1000 V DC
Insulation resistance
500 MΩ
PoE / PoE+
conforming to IEEE 802.3at

Normas generales

Certificate No. (DNV)
TAE00003EW
Connector standard
IEC 60603-7-51

Classifications

ETIM 8.0
EC001121
ETIM 9.0
EC001121
ETIM 10.0
EC001121
ECLASS 14.0
27-44-03-90
ECLASS 15.0
27-44-03-90
