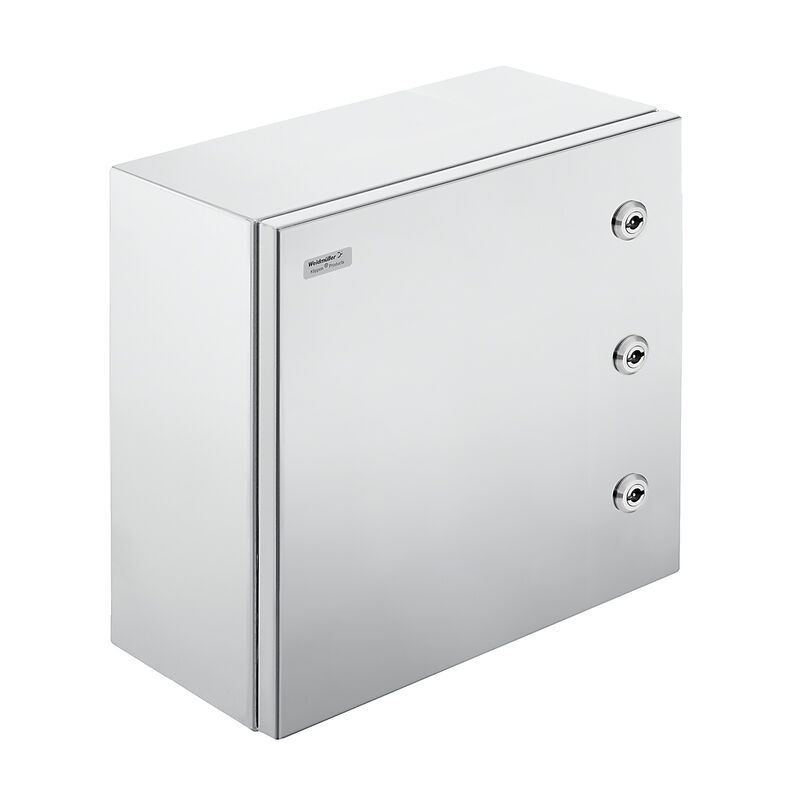

Klippon EBi QL (Essential Box industrial - Quarter Lock), Enclosures, Height: 600 mm, Width: 600 mm, Depth: 200 mm, Basic material: Stainless steel 1.4301 (304), Brushed, untreated, silver

Product ID 8000133642
Gegevensblad downloaden Engineering Support Product Downloads
Toebehoren 12 Verwante producten 1
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable glands, right Cable glands, top/bottom Certificate numbers enclosure General information horizontal assembly Housing earth vertical assembly Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)

General ordering data

Version
Klippon EBi QL (Essential Box industrial - Quarter Lock), Enclosures, Height: 600 mm, Width: 600 mm, Depth: 200 mm, Basic material: Stainless steel 1.4301 (304), Brushed, untreated, silver
Order No.
8000133642
Type
KEBIQL606020S2N0 AL
GTIN (EAN)
4099987805803
Qty.
1 items

Dimensions and weights

Depth
200 mm
Depth (inches)
7,874 inch
Height
600 mm
Height (inches)
23,622 inch
Width
600 mm
Width (inches)
23,622 inch
Nettó tömeg
5.995,784 g

Temperatures

Operating temperature
-40 °C...85 °C

Environmental Product Compliance

RoHS megfelelőségi állapot
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Cable glands, right

M12
135
M16
60
M20
60
M25
36
M32
20
M40
16
M50
6
M63
5
M75
1

Cable glands, top/bottom

M12
115
M16
45
M20
42
M25
24
M32
20
M40
14
M50
6
M63
5
M75
1

Certificate numbers enclosure

Megfelelőségi nyilatkozat száma (DoC LVD)
DE PS2650 220428 001ISS01

General information

Areas of use
Building systems and technology
Basic material
Stainless steel 1.4301 (304)
Flange plate
No
Flange plate mounting
TX20 screws
Grubość materiału wieka
1,5 mm
Impact resistance
10 J version standard
Lid
Yes
Lid attachment
M5 hexagonal screw with slot and 10mm distance across flats + hinge
Material thickness of enclosure
1,5 mm
Materialtjocklek
1,5 mm
Number of lid screws
6
Opening angle lid
120 °
Operating temperature, max.
85 °C
Operating temperature, min.
-40 °C
Protection degree
IP66
Seal material
Polyurethane
Chloroprene (cover & flange)
Seal material of cover
Chloroprene
Seal material of flange plate
Chloroprene
Surface finish
Brushed
untreated
Толщина материала - розеточная часть
3 mm

horizontal assembly

WDU 10 / ZDU 10
4x51
WDU 16 / ZDU 16
3x44
WDU 2,5 / ZDU 2,5 / IDU 2,5
4x98
WDU 35 / ZDU 35
2x31
WDU 4 / ZDU 4
4x83
WDU 6 / ZDU 6
4x64

Housing earth

Earth, enclosure, external
M6 earth tab rivet
Earth, enclosure, internal
Welded-on M6 stainless-steel earth stud in enclosure body and lid.

vertical assembly

WDU 10 / ZDU 10
4x51
WDU 16 / ZDU 16
3x44
WDU 2,5 / ZDU 2,5 / IDU 2,5
4x98
WDU 35 / ZDU 35
2x31
WDU 4 / ZDU 4
4x83
WDU 6 / ZDU 6
4x64

Classifications

ETIM 8.0
EC000261
ETIM 9.0
EC000261
ETIM 10.0
EC000261
ECLASS 14.0
27-18-01-01
ECLASS 15.0
27-18-01-01
