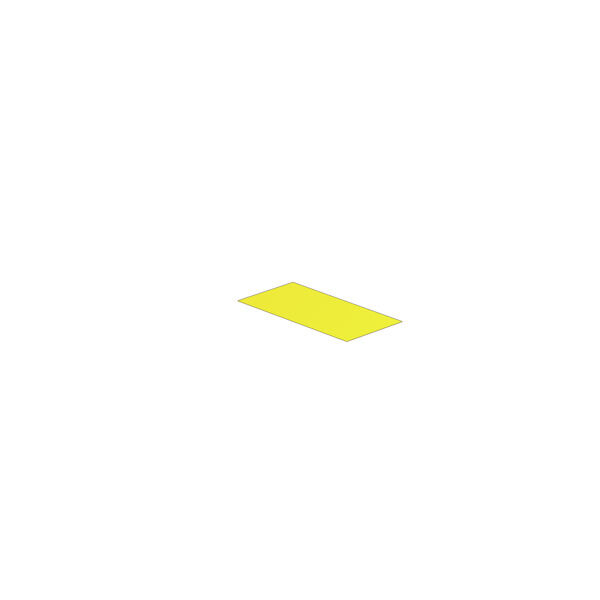

LaserMark, Device markers, 12.7 x 25.4 mm, yellow

Product ID 1686391687
Gegevensblad downloaden Engineering Support Product Downloads
Verwante producten 3
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dane ogólne Device markers Classifications

Approvals

ROHS
Conform

General ordering data

Version
LaserMark, Device markers, 12.7 x 25.4 mm, yellow
Order No.
1686391687
Type
LM MT300 25.4/12.7 GE
GTIN (EAN)
4008190493981
Qty.
10 items

Dimensions and weights

Depth
0,08 mm
Depth (inches)
0,003 inch
Height
12,7 mm
Height (inches)
0,5 inch
Width
25,4 mm
Width (inches)
1 inch
Net weight
12 g

Temperatures

Operating temperature range
-40...150 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Dane ogólne

Adhesive
Akrylatlim
Anzahl je Bogen
147
Approval acc. to UL 969
Yes
Aufdruckverfahren
Laser print
Basic material
Polyester, PVC-free
Colour
yellow
Halogen
No
Jelölők száma kombinációnként

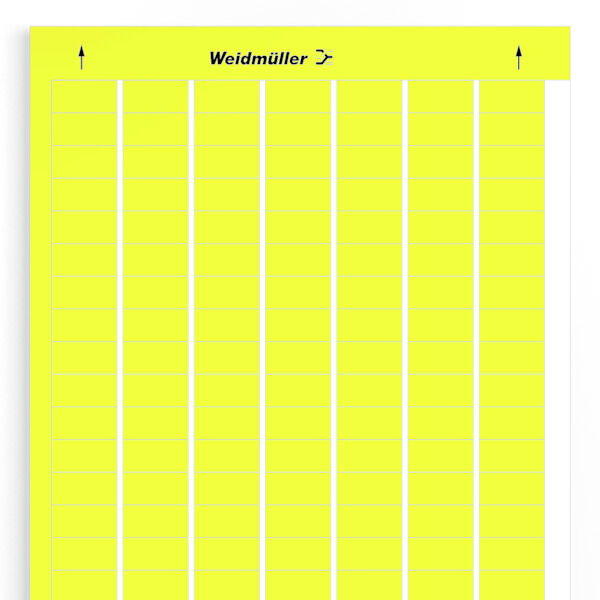

1 Label sheet = 147 Device markers
Material colour according to resistance code
4
Number of markers per packaging unit
1470
Número de señalizadores por unidad de embalaje
  • Form of supply:
    Label sheet
  • Number of combinations per packaging unit:
    10
  • Number of markers per combination:
    147
Operating temperature range
-40...150 °C
Operating temperature range, max.
150 °C
Operating temperature range, min.
-40 °C
Printed characters
without
UL 94 flammability rating
HB
Version
Self-adhesive
Width
25,4 mm

Device markers

Halogen
No

Classifications

ETIM 8.0
EC001288
ETIM 9.0
EC001288
ETIM 10.0
EC001288
ECLASS 14.0
27-28-11-04
ECLASS 15.0
27-28-11-04
