LSF-SMD 3.50/11/180 SN BK RL

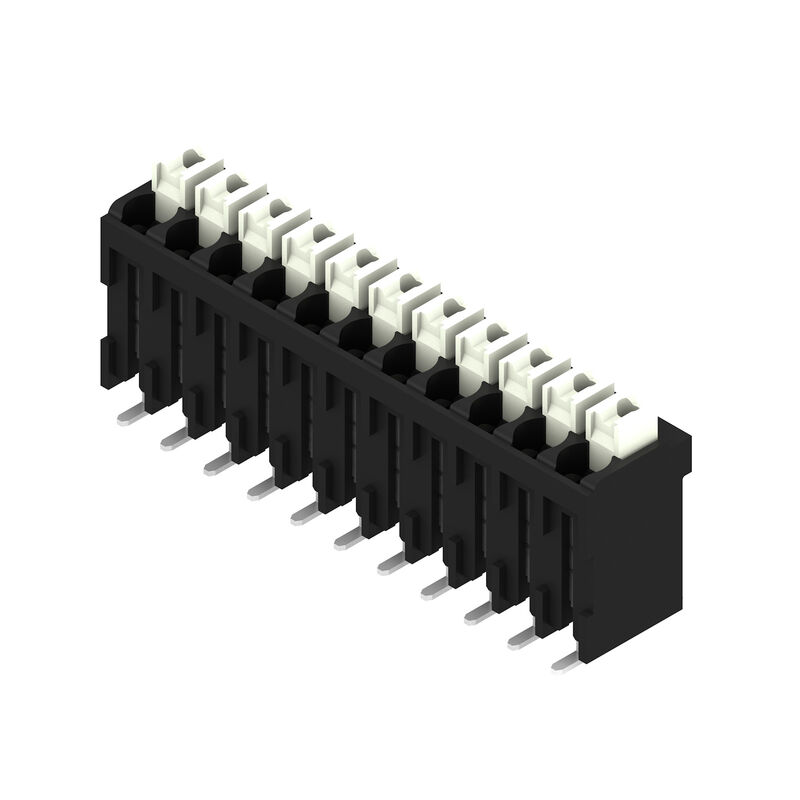

Product image
LSF-SMD 3.50/11/180 SN BK RL

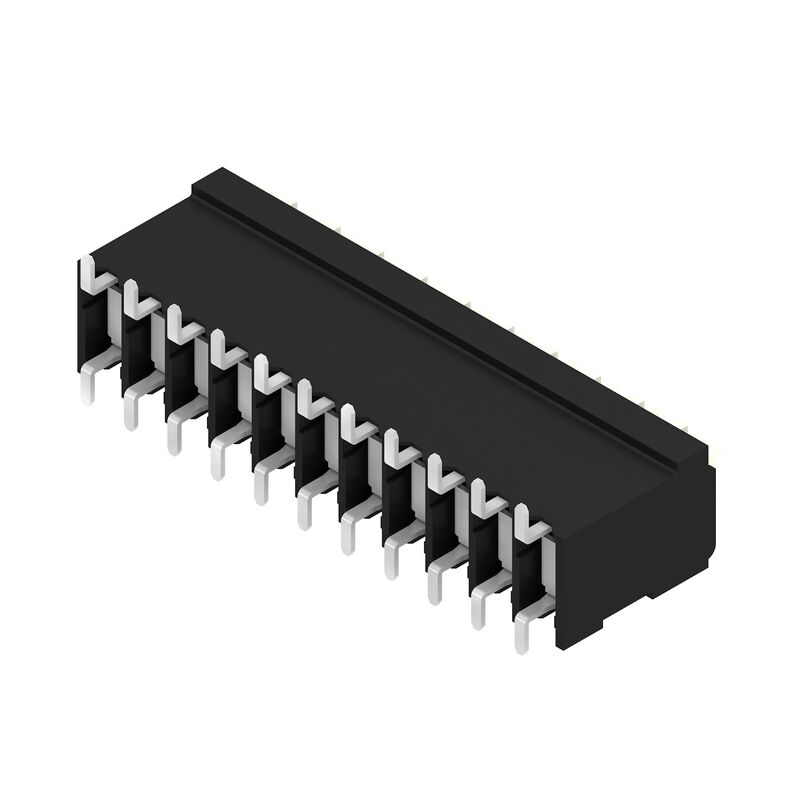

Product image
LSF-SMD 3.50/11/180 SN BK RL
Dimensional drawing
LSF-SMD 3.50/11/180 SN BK RL
Graph
LSF-SMD 3.50/11/180 SN BK RL
Graph
LSF-SMD 3.50/11/180 SN BK RL
Product benefits
Stable solder connection
LSF-SMD 3.50/11/180 SN BK RL
Product benefits
PUSH IN wire connection
LSF-SMD 3.50/11/180 SN BK RL
Product benefits
Packaged in tape-on-reel
LSF-SMD 3.50/11/180 SN BK RL
Dimensional drawing
LSF-SMD 3.50/11/180 SN BK RL
Dimensional drawing
Optimised for the SMT process
Safe board-to-board connection

LSF-SMD 3.50/11/180 SN BK RL

Printed circuit board terminals, 3.50 mm, Number of poles: 11, 180°, black, PUSH IN with actuator, Clamping range, max. : 1.5 mm², Tape

Item No. 1250460000
Download data sheet Engineering Support Product Downloads
Related products 17
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance System parameters Material data Conductors suitable for connection Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Type tests Important note Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Version
Printed circuit board terminals, 3.50 mm, Number of poles: 11, 180°, black, PUSH IN with actuator, Clamping range, max. : 1.5 mm², Tape
Order No.
1250460000
Type
LSF-SMD 3.50/11/180 SN BK RL
GTIN (EAN)
4050118041163
Qty.
180  items
Product data
IEC: 320 V / 17.5 A / 0.2 - 1.5 mm²
UL: 300 V / 12 A / AWG 24 - AWG 14
Packaging
Tape

Dimensions and weights

Depth
10.5  mm
Depth (inches)
0.413  inch
Height
16.3  mm
Height (inches)
0.642  inch
Height of lowest version
16.3  mm
Width
39.2  mm
Width (inches)
1.543  inch
Net weight
6.996  g

Temperatures

Continuous operating temp., max.
120  °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System parameters

Product family
OMNIMATE Signal - series LSF
Wire connection method
PUSH IN with actuator
Mounting onto the PCB
SMD solder connection
Conductor outlet direction
180°
Pitch in mm (P)
3.5  mm
Pitch in inches (P)
0.138  "
Number of poles
11
Pin series quantity
1
Fitted by customer
No
Number of rows
1
Coplanarity:
100  µm
Number of solder pins per pole
2
Stripping length
8  mm
L1 in mm
35  mm
L1 in inches
1.38  "
Touch-safe protection acc. to DIN VDE 0470
IP 20
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch
Protection degree
IP20
Volume resistance
1.60 mΩ

Material data

Insulating material
LCP GF
Colour
black
Colour chart (similar)
RAL 9011
Insulating material group
IIIa
Comparative Tracking Index (CTI)
≥ 175
Moisture Level (MSL)
1
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Layer structure of solder connection
4...6 µm Sn matt
Storage temperature, min.
-40  °C
Storage temperature, max.
70  °C
Operating temperature, min.
-50  °C
Operating temperature, max.
120  °C
Temperature range, installation, min.
-30  °C
Temperature range, installation, max.
120  °C

Conductors suitable for connection

Clamping range, min.
0.13  mm²
Clamping range, max.
1.5  mm²
Wire connection cross section AWG, min.
AWG 28
Wire connection cross section AWG, max.
AWG 14
Solid, min. H05(07) V-U
0.2  mm²
Solid, max. H05(07) V-U
1.5  mm²
Flexible, min. H05(07) V-K
0.2  mm²
Flexible, max. H05(07) V-K
1.5  mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0.25  mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
0.75  mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0.25  mm²
w. wire end ferrule, DIN 46228 pt 1, max.
1.5  mm²
Clampable conductor
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0.25 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9025760000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0.34 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9025770000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0.5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0690700000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0.75 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9021040000
Reference text
Length of ferrules is to be chosen depending on the product and the rated voltage.
The outside diameter of the plastic collar should not be larger than the pitch (P)

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
17.5  A
Rated current, max. number of poles (Tu=20°C)
16  A
Rated current, min. number of poles (Tu=40°C)
17.5  A
Rated current, max. number of poles (Tu=40°C)
14  A
Rated voltage for surge voltage class / pollution degree II/2
320  V
Rated voltage for surge voltage class / pollution degree III/2
160  V
Rated voltage for surge voltage class / pollution degree III/3
160  V
Rated impulse voltage for surge voltage class/ pollution degree II/2
2.5  kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
2.5  kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
2.5  kV
Short-time withstand current resistance
3 x 1s with 80 A

Rated data acc. to CSA

Institute (CSA)
CSA
Certificate No. (CSA)
200039-1664286
Rated voltage (Use group B / CSA)
300  V
Rated voltage (Use group D / CSA)
300  V
Rated current (Use group B / CSA)
10  A
Rated current (Use group D / CSA)
10  A
Wire cross-section, AWG, min.
AWG 28
Wire cross-section, AWG, max.
AWG 14
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group B / UL 1059)
300  V
Rated voltage (Use group D / UL 1059)
300  V
Rated current (Use group B / UL 1059)
12  A
Rated current (Use group D / UL 1059)
10  A
Wire cross-section, AWG, min.
AWG 24
Wire cross-section, AWG, max.
AWG 14
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

ESD Level packaging
static dissipative
Packaging
Tape
VPE length
330  mm
VPE width
330  mm
VPE height
61  mm
Tape depth (T2)
17.6  mm
Tape width (W)
56 mm
Tape pocket depth (K0)
17.1  mm
Tape pocket height (A0)
11.2  mm
Tape pocket width (B0)
43.7  mm
Tape pocket separation (P1)
20  mm
Tape hole separation (E)
1.75  mm
Tape pocket separation (F)
26.2  mm
Tape reel diameter ∅ (A)
330 mm
Surface resistance
Rs = 109 - 1012 Ω
Width Pick & Place Pad (WPPP)
7.5  mm
Length Pick & Place Pad (LPPP)
8.5  mm
Diameter of the withdrawal surface (ø Dmax)
9  mm

Type tests

Test: Durability of markings
  • Test:
    mark of origin, type identification, pitch, approval marking UL, durability
Test: Clampable cross section
  • Standard:
    DIN EN 60999-1 section 7 and 9.1 / 12.00, DIN EN 60947-1 section 8.2.4.5.1 / 12.02
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.14 mm²
    • Type of conductor and conductor cross-section:
      stranded 0.14 mm²
    • Type of conductor and conductor cross-section:
      solid 1.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 1.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 24/1
    • Type of conductor and conductor cross-section:
      AWG 22/19
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed
Test for damage to and accidental loosening of conductors
  • Standard:
    DIN EN 60999-1 section 9.4 / 12.00
  • Requirement:
    0.2 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 24/1
    • Type of conductor and conductor cross-section:
      AWG 24/19
  • Evaluation:
    passed
  • Requirement:
    0.3 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      stranded 0.25 mm²
    • Type of conductor and conductor cross-section:
      solid 0.5 mm²
  • Evaluation:
    passed
  • Requirement:
    0.4 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 1.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 1.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed
Pull-out test
  • Standard:
    DIN EN 60999-1 section 9.5 / 12.00
  • Requirement:
    ≥10 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 24/1
    • Type of conductor and conductor cross-section:
      AWG 24/19
  • Evaluation:
    passed
  • Requirement:
    ≥20 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      stranded 0.25 mm²
    • Type of conductor and conductor cross-section:
      H05V-U0.5
  • Evaluation:
    passed
  • Requirement:
    ≥40 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U1.5
    • Type of conductor and conductor cross-section:
      H07V-K1.5
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Additional push button colours on request
  • Operating force of slider max. 40 N
  • Rated current related to rated cross-section & min. No. of poles.
  • Wire end ferrule with plastic collar to DIN 46228/4
  • Wire end ferrule without plastic collar to DIN 46228/1
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • Crimping shape "A" for wire end ferrules with PZ 6/5 crimping tool recommended.
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months
