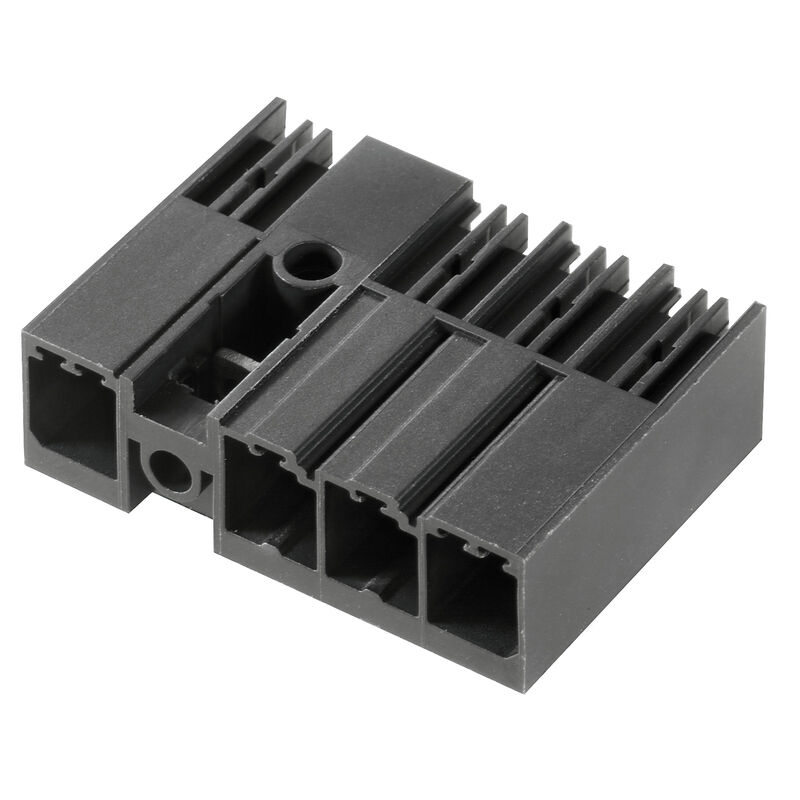

Male headers, solder connection
Male header with middle solder flange fastening in 7.62 pitch for 400-V IT systems according to IEC 61800-5-1.
UL approval in compliance with UL840 600 V.
When used together with a BVZ 7.62 IT socket block, they fulfil the expanded requirements for 5.5 mm of touch protection with IT systems (400 V relative to earth), according to IEC 61800-5-1.
When no female header is present, the mating profile ensures that more than 3 mm of touch safety is present with a finger pressure of 20 N.
UL approval in compliance with UL840 600 V.
When used together with a BVZ 7.62 IT socket block, they fulfil the expanded requirements for 5.5 mm of touch protection with IT systems (400 V relative to earth), according to IEC 61800-5-1.
When no female header is present, the mating profile ensures that more than 3 mm of touch safety is present with a finger pressure of 20 N.
-
№ продукта:1156550000Упаковочная единица:60 PC
PCB 接插件, 插座, 侧面封闭, 中央法兰, THT 焊接联接, 7.62 mm, 回路数: 3, 90°, 焊脚长度 (l): 3.5 mm, 镀锡, 黑色, 盒装
-
№ продукта:1156570000Упаковочная единица:60 PC
PCB 接插件, 插座, 侧面封闭, 中央法兰, THT 焊接联接, 7.62 mm, 回路数: 3, 90°, 焊脚长度 (l): 3.5 mm, 镀锡, 黑色, 盒装
-
Produkt-ID:1156590000VPE:48 PC
PCB 接插件, 插座, 侧面封闭, 中央法兰, THT 焊接联接, 7.62 mm, 回路数: 4, 90°, 焊脚长度 (l): 3.5 mm, 镀锡, 黑色, 盒装
-
Produkt-ID:1156580000VPE:48 PC
PCB 接插件, 插座, 侧面封闭, 中央法兰, THT 焊接联接, 7.62 mm, 回路数: 4, 90°, 焊脚长度 (l): 3.5 mm, 镀锡, 黑色, 盒装
-
Produkt-ID:1156500000VPE:60 PC
PCB 接插件, 插座, 侧面封闭, 中央法兰, THT 焊接联接, 7.62 mm, 回路数: 3, 270°, 焊脚长度 (l): 3.5 mm, 镀锡, 黑色, 盒装
-
Produkt-ID:1156510000VPE:60 PC
PCB 接插件, 插座, 侧面封闭, 中央法兰, THT 焊接联接, 7.62 mm, 回路数: 3, 270°, 焊脚长度 (l): 3.5 mm, 镀锡, 黑色, 盒装
-
Ürün No.:1156520000Ambalaj birimi:48 PC
PCB 接插件, 插座, 侧面封闭, 中央法兰, THT 焊接联接, 7.62 mm, 回路数: 4, 270°, 焊脚长度 (l): 3.5 mm, 镀锡, 黑色, 盒装
-
Ürün No.:1156530000Ambalaj birimi:48 PC
PCB 接插件, 插座, 侧面封闭, 中央法兰, THT 焊接联接, 7.62 mm, 回路数: 4, 270°, 焊脚长度 (l): 3.5 mm, 镀锡, 黑色, 盒装
