标记MF-WO 12/5 MC SDR
标记MF-WO 12/5 MC SDR
图纸

标记MF-WO 12/5 MC SDR

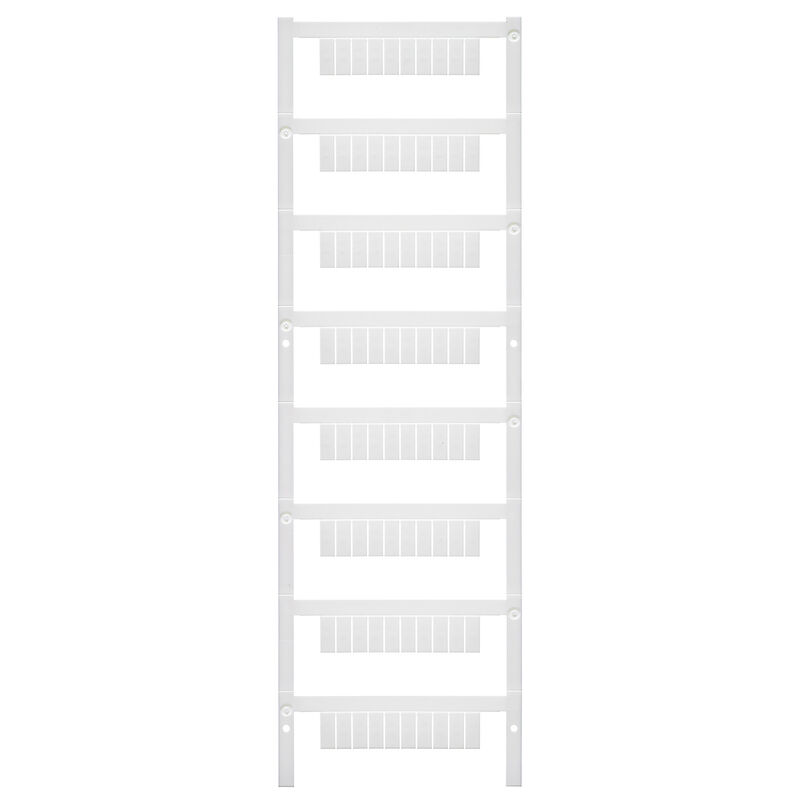

MultiFit, Terminal marker, 12 x 5 mm, Pitch in mm (P): 5.00 Woertz, To customer specification

Produkt ID 1692280000
Download datablad Descargas de productos Engineering Support
Anvendte produkter 3
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Connector markers Product images Classifications

Approvals

ROHS
Conform

General ordering data

Ausfuehrung
MultiFit, Terminal marker, 12 x 5 mm, Pitch in mm (P): 5.00 Woertz, To customer specification
Best.-Nr.
1692280000
Art
MF-WO 12/5 MC SDR
GTIN (EAN)
4008190864880
Qty.
80 Styk

Dimensions and weights

Höhe
12 mm
Height (inches)
0,472 inch
Breite
5 mm
Width (inches)
0,197 inch
Nettogewicht
0,22 g

Temperatures

Einsatztemperaturbereich
-40...100 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.005 kg CO2 eq.

General data

Antal märkningar per förpackningsenhet
  • Form of supply:
    MultiCard
Application/manufacturer
Woertz
Basic material
Polyamide 66
Classe d'infiammabilità UL 94
V-2
Colour
To customer specification
Halogen
No
Kolor nadruku
black
Number of markers per combination
1 MultiCard = Terminal marker
Operating temperature range, min.
-40 °C
Orientierung des Aufdrucks
horizontal and vertical
Procedimiento de impresión
MC Laser
Temperaturområde för användning
-40...100 °C
Width
5 mm
Напечатанные символы
Requires M-Print PRO File
작동 온도 범위, 최대
100 °C

Connector markers

Paso en mm (P)
5 mm

Product images

Classifications

ETIM 8.0
EC000761
ETIM 9.0
EC000761
ETIM 10.0
EC000761
ECLASS 14.0
27-28-11-01
ECLASS 15.0
27-28-11-01
