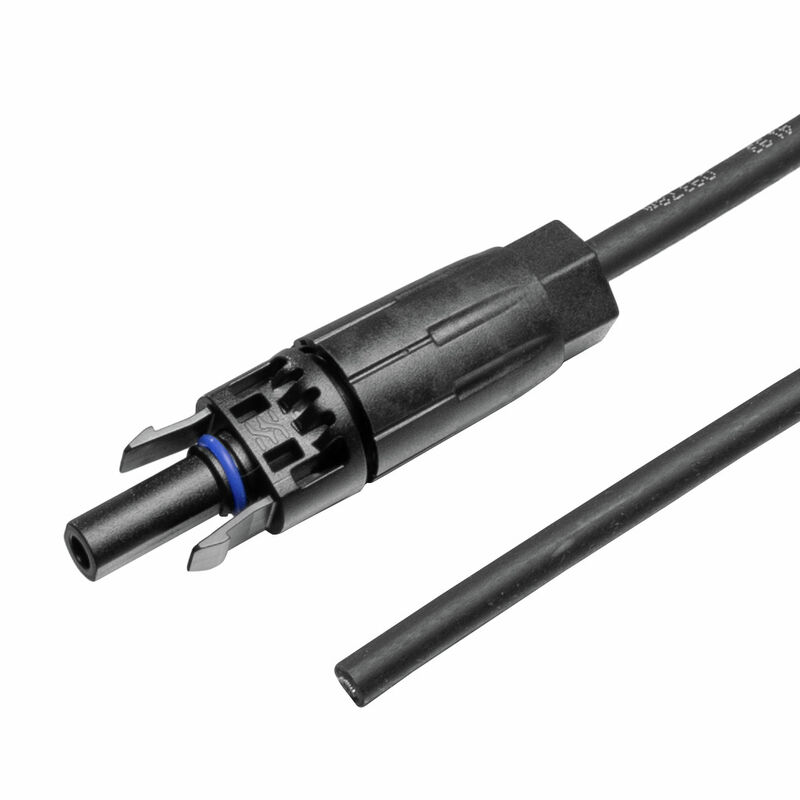

PV XSTU06 BUOWM4C-C250

PV XSTU06 BUOWM4C-C250

Photovoltaics, Y connector

Item No. 3010170250
Download data sheet Product Downloads
Related products 8
General ordering data Dimensions and weights Environmental Product Compliance PV cable harnessing Electrical characteristics Classifications Approvals

General ordering data

Version
Photovoltaics, Y connector
Order No.
3010170250
Type
PV XSTU06 BUOWM4C-C250
GTIN (EAN)
4099986930322
Qty.
1  items

Dimensions and weights

Net weight
1,000  g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1

PV cable harnessing

PV cable version
  • Cable side:
    left
  • Number:
    1
  • Cable length:
    2,500 mm
  • Cable colour:
    black
  • Cable cross section:
    6 mm²
  • Inline fuse integrated:
    No
  • Version of cable end [In-Block):
    free conductor end
  • Connector version:
    WM4 C
  • Type of plug-in contact:
    female
  • Cable side:
    right
Rated DC voltage
1,500  V
Wire cross-section
6  mm²

Electrical characteristics

Rated DC voltage
1,500  V

Classifications

ETIM 6.0
EC001576
ETIM 7.0
EC001576
ETIM 8.0
EC001576
ETIM 9.0
EC001576
ETIM 10.0
EC001576
ECLASS 9.0
27-06-04-02
ECLASS 9.1
27-06-91-90
ECLASS 10.0
27-06-04-02
ECLASS 11.0
27-06-04-02
ECLASS 12.0
27-06-04-02
ECLASS 13.0
27-06-04-02
ECLASS 14.0
27-06-04-02
ECLASS 15.0
27-06-04-02

Approvals

ROHS
Conform
