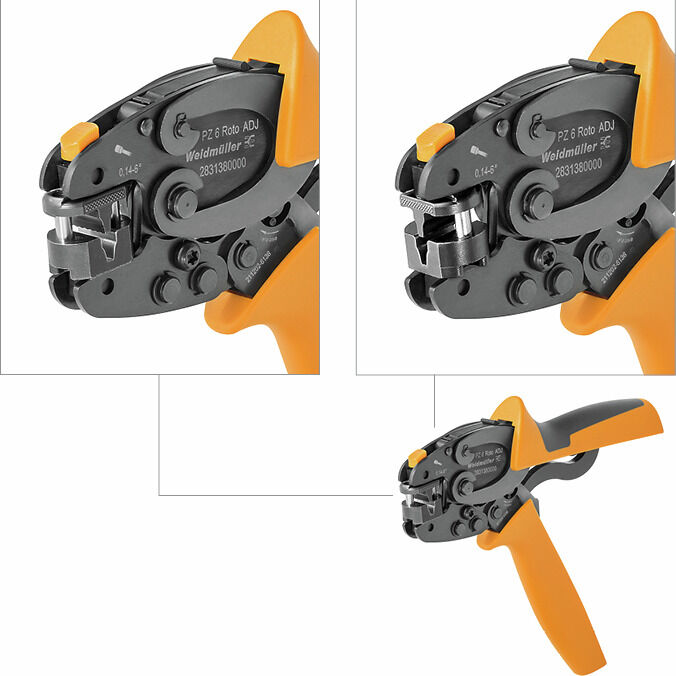

PZ 6 ROTO ADJ
PZ 6 ROTO ADJ

PZ 6 ROTO ADJ

0.14mm², 6mm², Trapezoidal crimp

№ продукта 2831380000
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Onderdelen 3 Afzonderlijke onderdelen van 4 Verwante producten 12
General ordering data Dimensions and weights Environmental Product Compliance Technical data Description of contact tool data crimping Classifications

General ordering data

Version
0.14mm², 6mm², Trapezoidal crimp
Order No.
2831380000
Type
PZ 6 ROTO ADJ
GTIN (EAN)
4064675415909
Qty.
1 items

Dimensions and weights

Depth
22 mm
Depth (inches)
0,866 inch
Height
80 mm
Height (inches)
3,15 inch
Width
200 mm
Width (inches)
7,874 inch
Net weight
425 g

Environmental Product Compliance

RoHS Compliance Status
Not affected
REACH SVHC
Lead 7439-92-1
SCIP
2159813b-98fd-4068-b62a-bc89a046c012

Technical data

Artikelbeskrivning
(1)Crimping tool
Version
Mechanical, without interchangeable inserts

Description of contact

Conductor cross-section, max. AWG
AWG 10
Krimpelési tartomány, min.
0,14 mm²
Plage de sertissage, max.
6 mm²
Průřez vodiče, min. AWG
AWG 26
Type of contact
Wire-end ferrules with/without plastic collars

tool data crimping

Hajtás
mechanical
Érvéghüvelyek keresztmetszete, max.
6 mm²
クリンプタイプ/プロファイル
Trapezoidal crimp

Classifications

ETIM 8.0
EC000168
ETIM 9.0
EC000168
ETIM 10.0
EC000168
ECLASS 14.0
21-04-38-11
ECLASS 15.0
21-04-38-11
