特性
| 版本 | 横联件（端子） |
| 订货号 | 1257140000 |

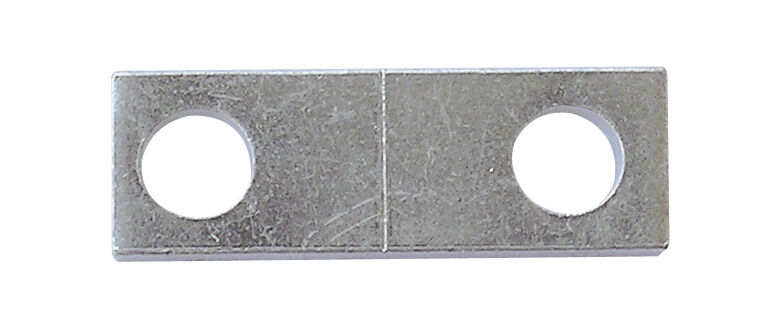

| 类型 | QL SAKQ 35/2 |
| GTIN (EAN) | 4050118120714 |
| 数量 | 20 PC |
| 本地产品 | 仅在特定国家有售 |
| 净重 | 4 g |
| 存储温度 | -25 °C...55 °C |
| 环境温度 | -5 °C…40 °C |
| RoHS 合规状态 | 合规，无例外 |
| REACH SVHC | No SVHC above 0.1 wt% |
| 工程数据 | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_213345) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1257140000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1257140000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1257140000&norm=0) |
| 用户文档 | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| 产品目录 | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000489 |
| ETIM 7.0 | EC000489 |
| ETIM 8.0 | EC000489 |
| ETIM 9.0 | EC000489 |
| ECLASS 9.0 | 27-14-11-40 |
| ECLASS 9.1 | 27-14-11-40 |
| ECLASS 10.0 | 27-14-11-40 |
| ECLASS 11.0 | 27-14-11-40 |
| ECLASS 12.0 | 27-14-11-40 |
| ECLASS 13.0 | 27-25-03-03 |
| ECLASS 14.0 | 27-25-03-03 |
| ROHS | 一致 |
是附件
接线端子通用范围螺钉式联接技术SAKDU 系列直通端子1 层35 mm²
