RS ELCO 56/56RM S
RS ELCO 56/56RM S

RS ELCO 56/56RM S

Interfaccia, RS ELCO, Connettore ELCO, 56, LP2N 5.08mm

Product ID 1126770000
Gegevensblad downloaden Product Downloads
Verwante producten 15
Approvals Dati generali per l’ordinazione Dimensions et poids Temperature Conformità ambientale del prodotto Rated data UL Connection Data Névleges adatok Aislamiento aplicado (EN50178) Connection field Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319262/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E141197

Dati generali per l’ordinazione

Version
Interfaccia, RS ELCO, Connettore ELCO, 56, LP2N 5.08mm
Order No.
1126770000
Type
RS ELCO 56/56RM S
GTIN (EAN)
4032248908455
Qty.
1 items

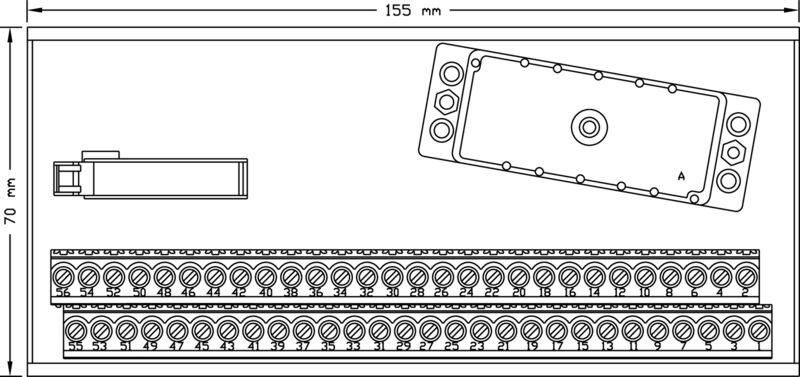

Dimensions et poids

Depth
60 mm
Profondità (pollici)
2,362 inch
Height
70 mm
Height (inches)
2,756 inch
Width
155 mm
Width (inches)
6,102 inch
Net weight
220 g

Temperature

Storage temperature
-40...60 °C
Operating temperature
-25...50 °C

Conformità ambientale del prodotto

RoHS Compliance Status
Conforme con esenzione
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
7b5ffb72-271d-4c73-8b09-bd0aaee3697a

Rated data UL

Operating temperature UL, max.
50 °C
Operating temperature UL, min.
-25 °C
Rated current IN
1 A
Napięcie znamionowe UN
150 V AC / 200 V DC

Connection Data

Connection (field side)
LP2N 5.08mm
Connection on control side
ELCO plug-in connector
Contact material (control side)
Phosphor bronze alloy
Number of poles (control side)
56-pole plug
Polarity hardware codification
1

Névleges adatok

Rated voltage
150 V AC / 200 V DC
Rated current per connection
1,5 A
Total operating current
84 A

Aislamiento aplicado (EN50178)

According to
DIN EN 50178
Rated insulation voltage
<150 V AC
Surge voltage category
II
Pollution severity level
2
Pulse voltage test (1,2/50μs)
2,5 kV
Insulation test voltage AC
0,8 kV

Connection field

Clamping range, max.
6 mm²
Clamping range, min.
0,5 mm²
Flexible with sleeve, max.
2,5 mm²
Flexible with sleeve, min.
0,5 mm²
Flexible, max. H05(07) V-K
4 mm²
Flexible, min. H05(07) V-K
0,5 mm²
Max. wire cross-section, AWG
AWG 12
Min. wire cross-section, AWG
AWG 26
Sleeve with plastic collar, max.
2,5 mm²
Solid, max. H05(07) V-U
6 mm²
Solid, min. H05(07) V-U
0,5 mm²
Stripping length
6 mm
Tightening torque, max.
0,6 Nm
Tightening torque, min.
0,5 Nm
Type of connection
Conexión brida-tornillo

Classifications

ETIM 8.0
EC002780
ETIM 9.0
EC002780
ETIM 10.0
EC002780
ECLASS 14.0
27-14-11-52
ECLASS 15.0
27-14-11-52
