RS RJ45 2WAY
RS RJ45 2WAY

RS RJ45 2WAY

Tämä tuote ei ole pian enää saatavana.

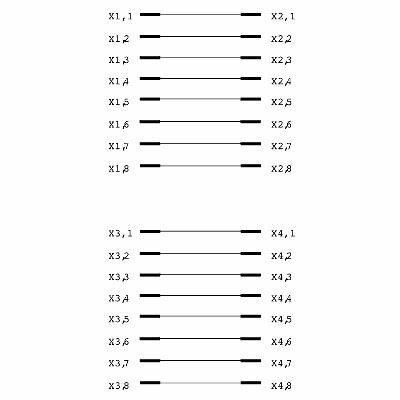

Interface, RS RJ45, 2 x RJ45 connector

Tuotteen tunnus 8555440000
Lataa tietosivu Tuotelataukset Tekninen tuki
Lisävarusteet 4 Samankaltaiset tuotteet 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Données de raccordement Rating data Insulation coordination (EN50178) Standard features Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
Interface, RS RJ45, 2 x RJ45 connector
Order No.
8555440000
Type
RS RJ45 2WAY
GTIN (EAN)
4032248193882
Qté.
1 items
Delivery status
This article will no longer be available in the future.
Last order date
10.02.2026

Dimensions and weights

Depth
44 mm
Depth (inches)
1,732 inch
Height
45 mm
Height (inches)
1,772 inch
Width
47 mm
Width (inches)
1,85 inch
Net weight
60 g

Temperatures

Storage temperature
-40...70 °C
Operating temperature
0...55 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Données de raccordement

Conexión (lado de control)
2 x connettori RJ45
Connection (field side)
2 x RJ45 plug-in connectors
Contact material (control side)
Фосфористая бронза 6 мк AU
Transmission rate
Cat. 5, 100 MBit/s

Rating data

Rated voltage
50 V
Rated current per connection
1 A
Total operating current
1,5 A

Insulation coordination (EN50178)

According to
DIN EN 50178
Rated insulation voltage
< 50 V AC
Surge voltage category
III
Degré de pollution
2
Pulse voltage test (1,2/50μs)
0,8 kV
Tension d'essai d'isolation AC
0,35 kV

Standard features

Forme
RJ45 socket connector

Classifications

ETIM 8.0
EC002780
ETIM 9.0
EC002780
ETIM 10.0
EC002780
ECLASS 14.0
27-14-11-52
ECLASS 15.0
27-14-11-52
