RSM-16 C 1CO Z
RSM-16 C 1CO Z

RSM-16 C 1CO Z

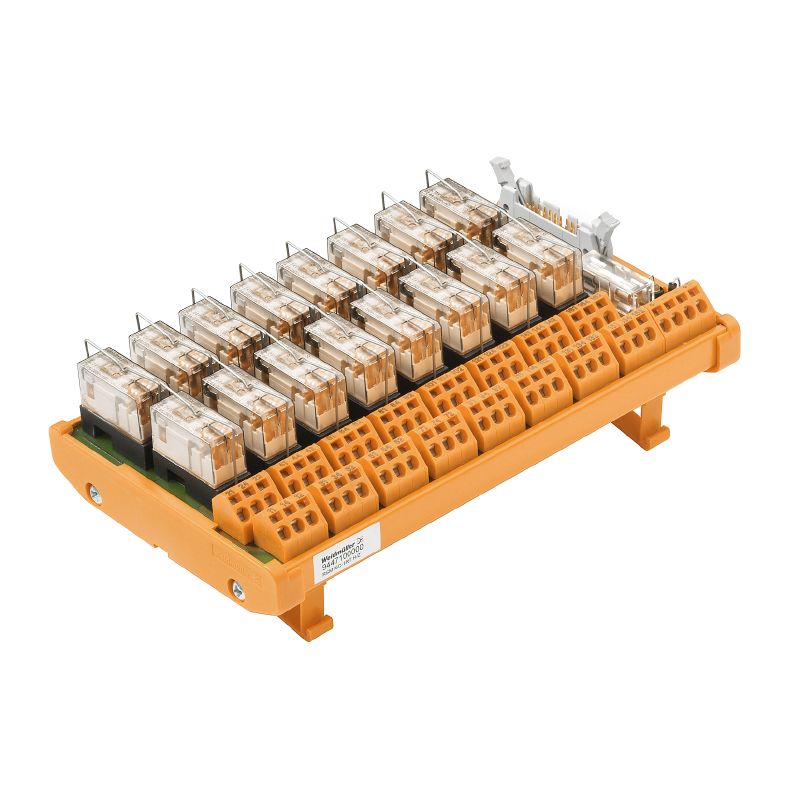

Interface, RSM, 16 compact, RCL, Tension-clamp connection

Tuotteen tunnus 9447100000
Lataa tietosivu Engineering Support Product Downloads
Samankaltaiset tuotteet 13
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Datos de conexión Rating data Ratings data input Ratings data output Insulation coordinates (EN50178) Connection field Supply connection Classifications

Approvals

Zulassungen
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Ausfuehrung
Interface, RSM, 16 compact, RCL, Tension-clamp connection
Order No.
9447100000
Art
RSM-16 C 1CO Z
GTIN (EAN)
4032248253111
Qty.
1 items

Dimensions and weights

Tiefe
68 mm
Depth (inches)
2,677 inch
Höhe
109 mm
Height (inches)
4,291 inch
Breite
185 mm
Width (inches)
7,283 inch
Net weight
607 g

Temperatures

Lagertemperatur
-40...60 °C
Betriebstemperatur
-25...50 °C

Environmental Product Compliance

RoHS-Konformitätsstatus
Compliant with exemption
RoHS-Ausnahme (falls zutreffend/bekannt)
7a, 7cI
REACH SVHC
Lead 7439-92-1
4,4'-isopropylidenediphenol 80-05-7
SCIP
66e752f3-a24f-4fef-89c4-f29f52d01390

General data

LED status display per relay
green
Fuse per relay
No
LED status of the supply voltage
yellow
Power supply fuse
3.15 A

Datos de conexión

Connection (field side)
LMNZF 5.08mm
Connection on control side
Dugaszolható csatlakozó IEC60603-13 / DIN41651 szerint
Connection supply
LMNZF 5.08mm
Number of poles (control side)
20-pole plug

Rating data

Mechanical service life
3 x 107 switching cycles

Ratings data input

Input voltage
24 V DC ± 10%
Input current
20 mA
Power rating
0.4 VA

Ratings data output

Relay type
RCL
Type of output
Potential-free contact
Material of contacts
AgNi 90/10
Rated voltage
≤ 250 Vdc ≤ 250 Vac
Max. AC continuous current
5 A
AC peak current
16 A
Minimum contact current
0,01 A
Minimum contact voltage
10 V

Insulation coordinates (EN50178)

According to
DIN EN 50178
Rated input insulation voltage
<50 V AC
Rated output insulation voltage
<250 V AC
Overvoltage category input/input
III
Overvoltage category input/output
III
Overvoltage category output/output
II
Pollution severity level
2
Pulse voltage test (1,2/50μs)
6 kV
Insulation test voltage AC
1,2 kV
Clearance input/output
≥ 5.5 mm
Clearance input/input
≥ 0.2 mm
Clearance output/output
≥ 1.17 mm

Connection field

Clamping range, max.
1,5 mm²
Clamping range, min.
0,15 mm²
Flexible with sleeve, max.
1,5 mm²
Flexible, max. H05(07) V-K
1,5 mm²
Flexible, min. H05(07) V-K
0,5 mm²
Max. wire cross-section, AWG
AWG 14
Min. wire cross-section, AWG
AWG 26
Solid, max. H05(07) V-U
1,5 mm²
Solid, min. H05(07) V-U
0,5 mm²
Stripping length
7 mm
Type of connection
Tension-clamp connection

Supply connection

Type of connection
Tension-clamp connection
Clamping range, min.
0,15 mm²
Clamping range, max.
1,5 mm²
Solid, min. H05(07) V-U
0,5 mm²
Solid, max. H05(07) V-U
1,5 mm²
Flexible, min. H05(07) V-K
0,5 mm²
Flexible, max. H05(07) V-K
1,5 mm²
Flexible with sleeve, max.
1,5 mm²
Wire cross-section, min. AWG
AWG 26
Wire cross-section, max. AWG
AWG 14
Stripping length
7 mm

Classifications

ETIM 8.0
EC002780
ETIM 9.0
EC002780
ETIM 10.0
EC002780
ECLASS 14.0
27-14-11-52
ECLASS 15.0
27-14-11-52
