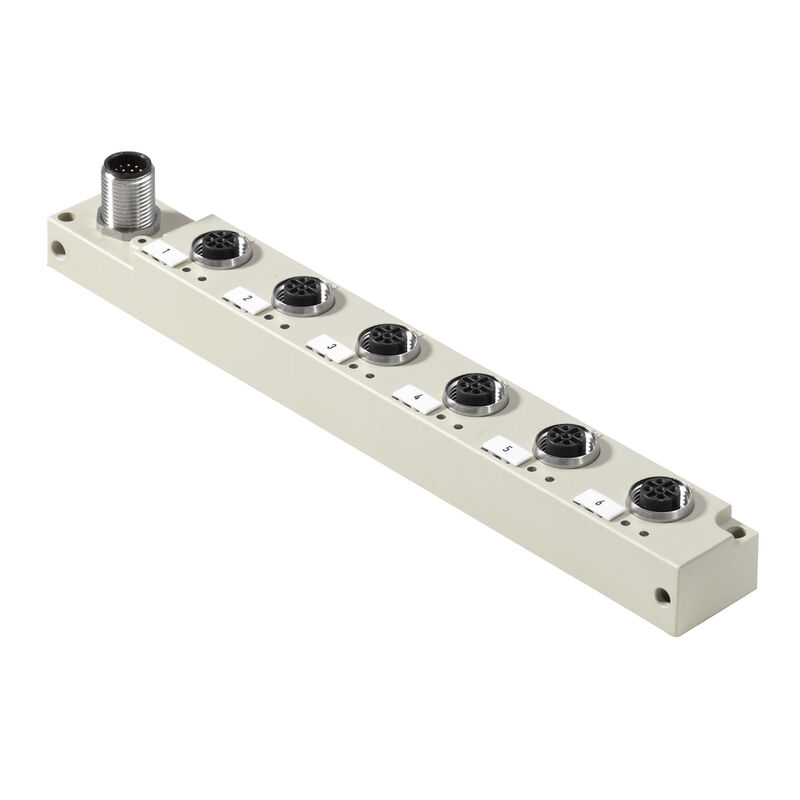

SAI-6-S12 4P M12 L

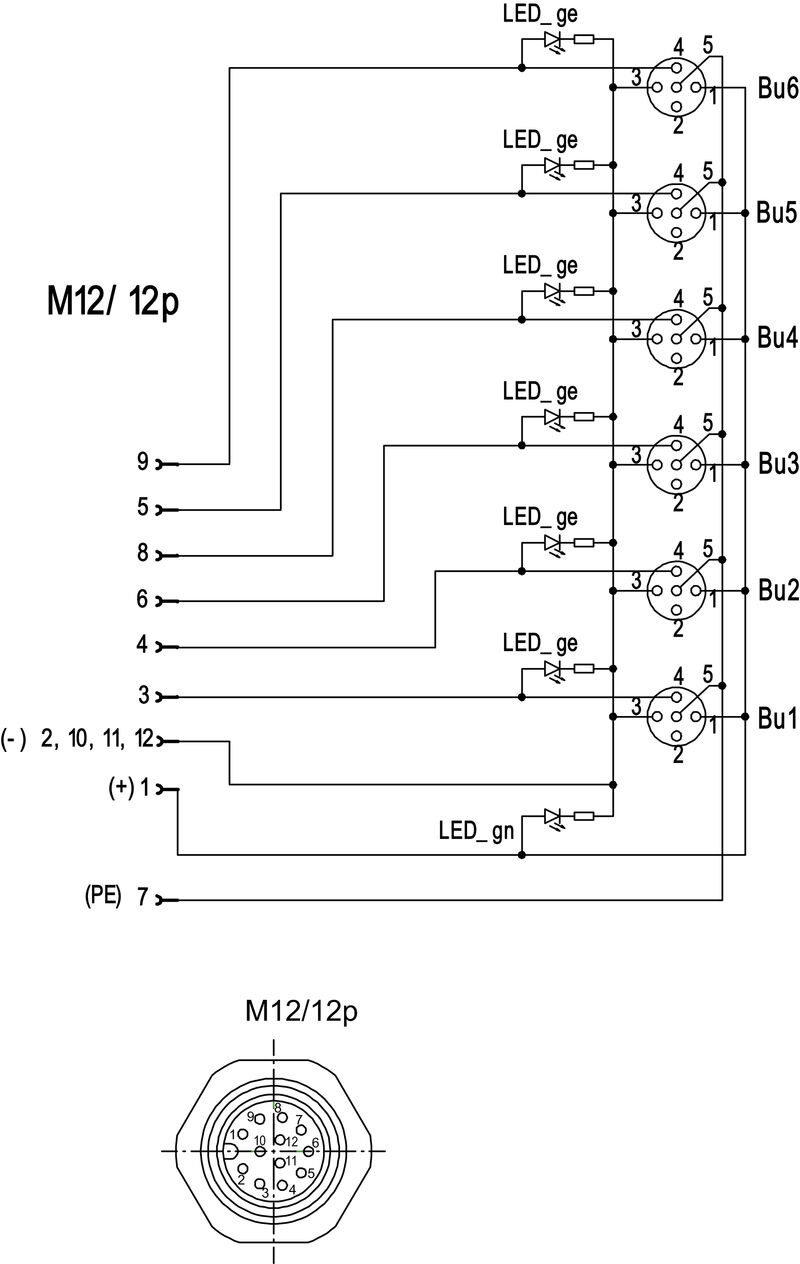

Wiring
SAI-6-S12 4P M12 L

SAI-6-S12 4P M12 L

with M12 outlet, 12-pole, A-coded, M12, 30 V, A-coded, LED: Yes, LED initiator: Yes, Wiring type: PNP

N.º de artículo 1265940000
Descargar hoja de datos Engineering-support Produktdownloads
Tilbehør 2 Anvendte produkter 2
Approvals General ordering data Dimensions and weights Temperaturen Environmental Product Compliance Connection data Electrical data General technical data Material data Technical data cable Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Megfelel
UL File Number Search
[Witryna UL](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E92202

General ordering data

Version
with M12 outlet, 12-pole, A-coded, M12, 30 V, A-coded, LED: Yes, LED initiator: Yes, Wiring type: PNP
Order No.
1265940000
Type
SAI-6-S12 4P M12 L
GTIN (EAN)
4050118055641
Qty.
1 adet

Dimensions and weights

Net weight
148 g

Temperaturen

Operating temperature
- 80°C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Pas de SVHC au-dessus de 0,1 % en poids

Connection data

Distributor outlet
with M12 outlet
12-pole
A-coded

Electrical data

Rated voltage, min.
10 V
Rated voltage, max.
30 V
Max. current-carrying capacity per slot
2 A
Total current
6 A
Current per signal
1 A
Elektromos szigetelés lehetséges
No

General technical data

Plug-in station coding
A-coded
Вид защиты
IP67
Количество полюсов
4
접점 소켓 수
6
Connection thread
M12
Pollution severity
3
Brandegenskaper
V-0
LED
Yes
LED initiator
Yes
LED colour for indicating operation
green
LED colour for I/O function
yellow

Material data

Housing main material
PBT
Housing colour
Grau, RAL 7032
Screw socket
CuZn, förnicklad
Contact material
CuZn
Contact surface
Gold-plated
Contact carrier material
PBT (UL 94 V0)

Technical data cable

Number of poles
4
Suitable for cable carriers
No

Classifications

ETIM 8.0
EC003558
ETIM 9.0
EC003558
ETIM 10.0
EC003558
ECLASS 14.0
27-44-01-11
ECLASS 15.0
27-44-01-11
