SC-SMT 3.81/06/135LF 3.2SN BK BX

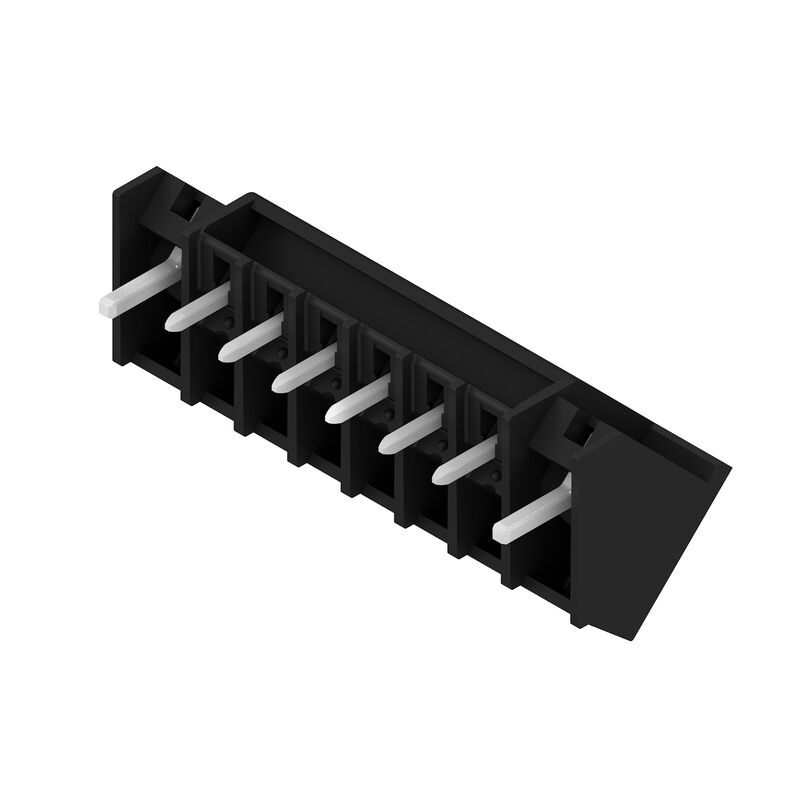

Product image
SC-SMT 3.81/06/135LF 3.2SN BK BX

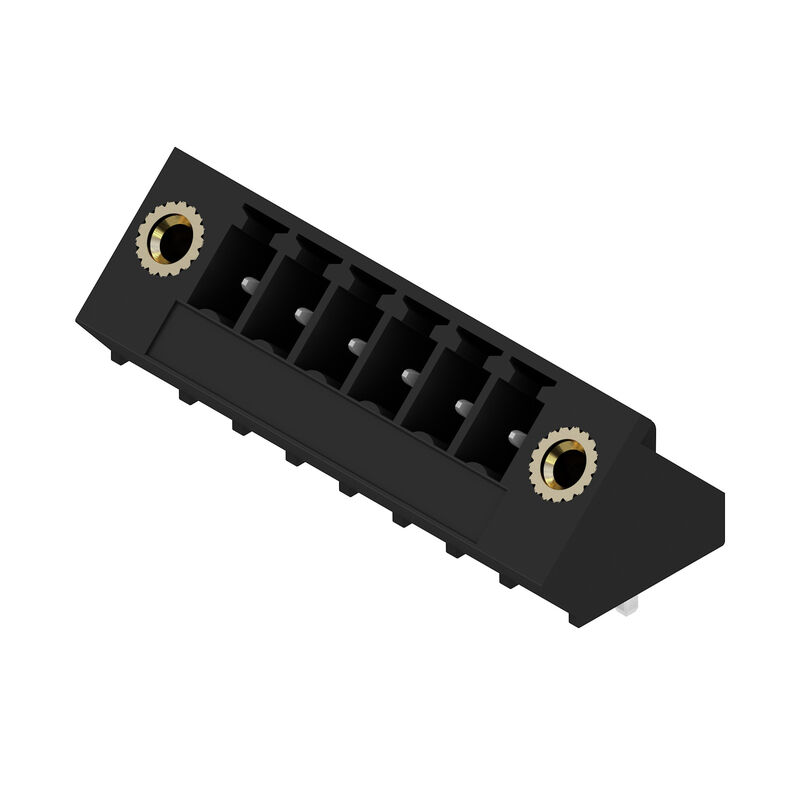

Product image
SC-SMT 3.81/06/135LF 3.2SN BK BX
Dimensional drawing

SC-SMT 3.81/06/135LF 3.2SN BK BX

PCB plug-in connector, male header, Solder flange, THT/THR solder connection, 3.81 mm, Number of poles: 6, 135°, Solder pin length (l): 3.2 mm, tinned, black, Box

Item No. 1978120000
Download data sheet Engineering Support Product Downloads
Related products 16
Approvals General ordering data Dimensions and weights Environmental Product Compliance System specifications Material data Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Important note Classifications

Approvals

Сертификаты
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certifikat nr (cURus)
E60693

General ordering data

Версия
PCB plug-in connector, male header, Solder flange, THT/THR solder connection, 3.81 mm, Number of poles: 6, 135°, Solder pin length (l): 3.2 mm, tinned, black, Box
Заказ №
1978120000
Тип
SC-SMT 3.81/06/135LF 3.2SN BK BX
GTIN (EAN)
4032248685707
Förp.
50 items
Product data
IEC: 320 V / 17.5 A
UL: 300 V / 11 A
Packaging
Box

Dimensions and weights

Глубина
13,1 mm
Byggdjup (tum)
0,516 inch
Высота
14,2 mm
Height (inches)
0,559 inch
Height of lowest version
11 mm
Ширина
33,25 mm
Width (inches)
1,309 inch
Nettovikt
3,74 g

Environmental Product Compliance

Состояние соответствия RoHS
Compliant with exemption
Исключение из RoHS (если применимо/известно)
6c
REACH SVHC
Lead 7439-92-1
SCIP
308576ca-4abc-409a-b0d0-6626109a7446

System specifications

Produktfamilie
OMNIMATE Signal - series BC/SC 3.81
Anschlussart
Board connection
montaż na płytce drukowanej
THT/THR solder connection
Raster w mm (P)
3,81 mm
Delning i tum (P)
0,15 "
kąt odejścia
135°
Polzahl
6
Anzahl Lötstifte pro Pol
1
Lötstiftlänge (l)
3,2 mm
솔더핀 길이 공차
0 / -0,02 mm
Dimensioner för lödstift
d = 1.0 mm
Octagonal
Lötstift-Abmessungen=d Toleranz
0 / -0,03 mm
Diameter bestyckningshål (D)
1,3 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
Outside diameter of solder pad
2,1 mm
Template aperture diameter
1,9 mm
L1 in mm
19,05 mm
L1 in inches
0,75 "
Number of rows
1
Pin series quantity
1
Touch-safe protection acc. to DIN VDE 57 106
finger-safe unplugged/ back-of-hand-safe plugged
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged/ IP10 unplugged
Volume resistance
≤5 mΩ
Can be coded
Yes

Material data

Isoleringsmaterial
LCP GF
Färgkod
black
Färgtabell (jämförbar)
RAL 9011
Isoleringsmaterialgrupp
IIIa
CTI (Comparative Tracking Index)
≥ 175
Moisture Level (MSL)
1
UL 94 flammability rating
V-0
Kontaktmaterial
Copper alloy
Kontaktyta
tinned
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
120 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
120 °C

Rated data acc. to IEC

testad enligt standard
IEC 60664-1
IEC 61984
Märkström, min. antal poler (Tu=20°C)
17,5 A
Märkström, max. antal poler (Tu=20°C)
17,1 A
Märkström, min. antal poler (Tu=40°C)
17,5 A
Märkström, max. antal poler (Tu=40°C)
17,5 A
Märkspänning vid överspänningsk./Nedsmutsningsgrad II/2
320 V
Märkspänning vid överspänningsk./Nedsmutsningsgrad III/2
160 V
Märkspänning vid överspänningskat./Nedsmutsningsgrad III/3
160 V
Märkspänning vid överspänningsk./Nedsmutsningsgrad II/2
2,5 kV
Märkspänning vid överspänningsk./Nedsmutsningsgrad III/2
2,5 kV
Märkstötspänning vid överspänningsk./Nedsmutsningsgrad III/3
2,5 kV
Korttidströmhållfasthet
3 x 1s with 76 A

Rated data acc. to CSA

Intézet (CSA)
CSA
인증 번호(CSA)
200039-1121690
정격 전압(사용 그룹 B / CSA)
300 V
Prąd znamionowy (grupa użytkowa B / CSA)
11 A
Prąd znamionowy (grupa użytkowa D / CSA)
10 A
Odniesienie do wartości znamionowych
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institut (cURus)
CURUS
Zertifikat-Nr. (cURus)
E60693
Nennspannung (Use group B / UL 1059)
300 V
Märkspänning (användargrupp D / UL 1059)
300 V
Märkström (användargrupp B / UL 1059)
11 A
Intensidad nominal (Use Group D / UL 1059)
10 A
Ссылка на утвержденные значения
Specifications are maximum values, details - see approval certificate.

Packing

Emballage
Box
Lunghezza VPE
20 mm
VPE 폭
120 mm
Wysokość VPE
180 mm

Important note

Соответствие IPC
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Примечания
  • Additional variants on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • P on drawing = pitch
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
