SC-SMT 3.81/09/135LF 3.2SN BK BX

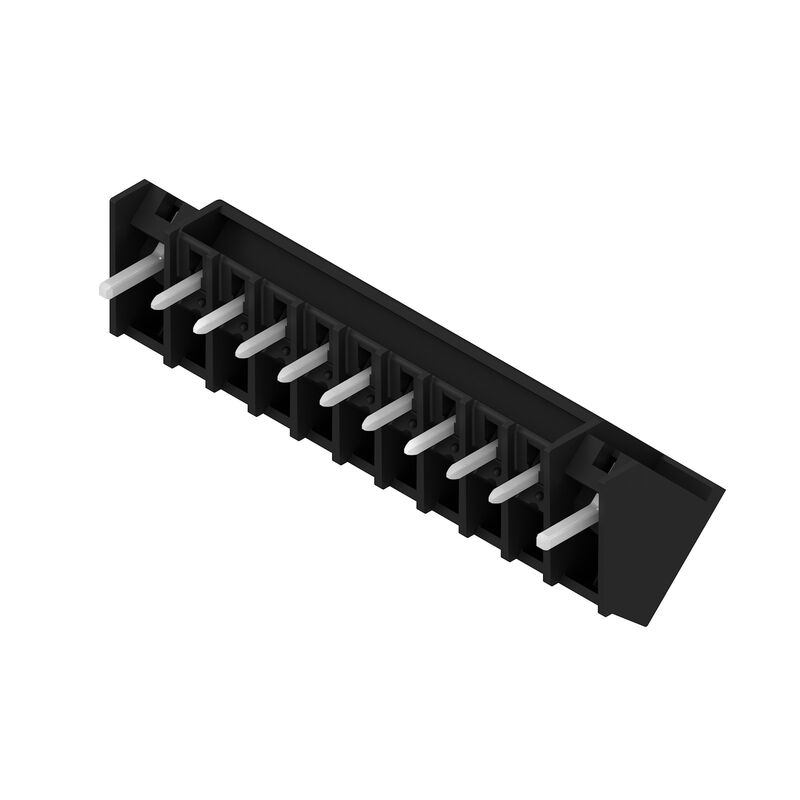

Product image
SC-SMT 3.81/09/135LF 3.2SN BK BX

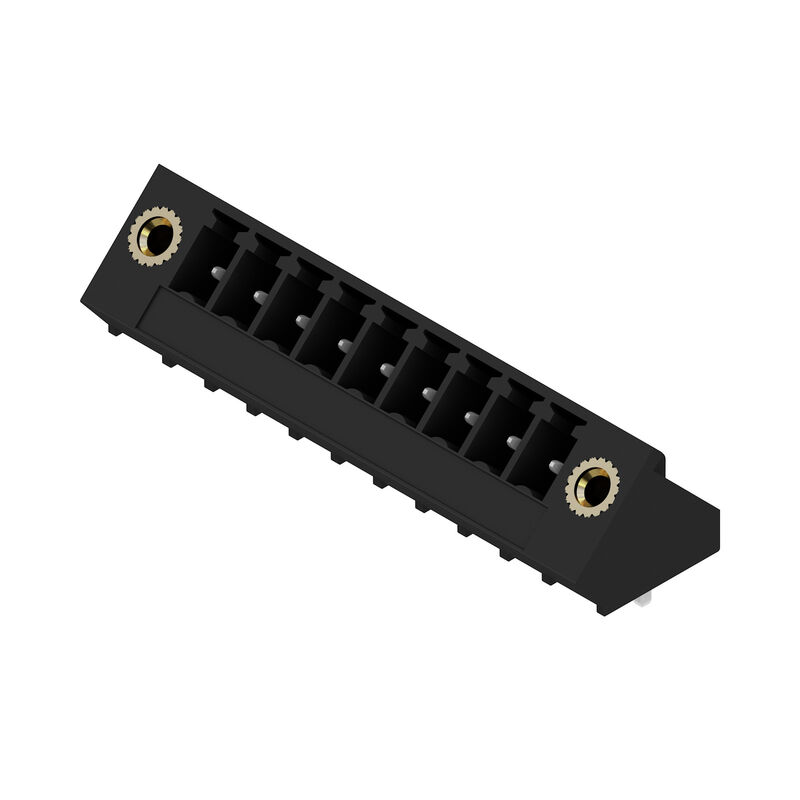

Product image
SC-SMT 3.81/09/135LF 3.2SN BK BX
Dimensional drawing

SC-SMT 3.81/09/135LF 3.2SN BK BX

PCB plug-in connector, male header, Solder flange, THT/THR solder connection, 3.81 mm, Number of poles: 9, 135°, Solder pin length (l): 3.2 mm, tinned, black, Box

Item No. 1978150000
Download data sheet Engineering Support Product Downloads
Related products 16
Approvals General ordering data Dimensions and weights Environmental Product Compliance System specifications Material data Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Important note Classifications

Approvals

Сертификаты
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certifikat nr (cURus)
E60693

General ordering data

Wersja
PCB plug-in connector, male header, Solder flange, THT/THR solder connection, 3.81 mm, Number of poles: 9, 135°, Solder pin length (l): 3.2 mm, tinned, black, Box
Заказ №
1978150000
Typ
SC-SMT 3.81/09/135LF 3.2SN BK BX
GTIN (EAN)
4032248685837
Förp.
50 items
Product data
IEC: 320 V / 17.5 A
UL: 300 V / 11 A
Packaging
Box

Dimensions and weights

Głębokość
13,1 mm
Byggdjup (tum)
0,516 inch
Высота
14,2 mm
Height (inches)
0,559 inch
Height of lowest version
11 mm
Szerokość
44,68 mm
Width (inches)
1,759 inch
Nettovikt
2,9 g

Environmental Product Compliance

Состояние соответствия RoHS
Compliant with exemption
Wyłączenie RoHS (w przypadkach, w których ma to zastosowanie / jest znane)
6c
REACH SVHC
Lead 7439-92-1
SCIP
308576ca-4abc-409a-b0d0-6626109a7446

System specifications

Produktfamilie
OMNIMATE Signal - series BC/SC 3.81
Anschlussart
Board connection
Felszerelés NYÁK-ra
THT/THR solder connection
Passo in mm (P)
3,81 mm
Delning i tum (P)
0,15 "
Angolo di uscita
135°
Polzahl
9
Anzahl Lötstifte pro Pol
1
Solder pin length (l)
3,2 mm
Tolérance sur la longueur du picot à souder
0 / -0,02 mm
Dimensioner för lödstift
d = 1.0 mm
Octagonal
Lötstift-Abmessungen=d Toleranz
0 / -0,03 mm
Diameter bestyckningshål (D)
1,3 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
Outside diameter of solder pad
2,1 mm
Template aperture diameter
1,9 mm
L1 in mm
30,48 mm
L1 in inches
1,2 "
Number of rows
1
Pin series quantity
1
Touch-safe protection acc. to DIN VDE 57 106
finger-safe unplugged/ back-of-hand-safe plugged
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged/ IP10 unplugged
Volume resistance
≤5 mΩ
Can be coded
Yes

Material data

Изоляционный материал
LCP GF
Цветовой код
black
Таблица цветов (аналогич.)
RAL 9011
Isoleringsmaterialgrupp
IIIa
CTI (Comparative Tracking Index)
≥ 175
Moisture Level (MSL)
1
UL 94 flammability rating
V-0
Kontaktmaterial
Copper alloy
Kontaktyta
tinned
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
120 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
120 °C

Rated data acc. to IEC

testad enligt standard
IEC 60664-1
IEC 61984
Märkström, min. antal poler (Tu=20°C)
17,5 A
Märkström, max. antal poler (Tu=20°C)
17,1 A
Номинальный ток, мин. кол-во контактов (Tu = 40 °C)
17,5 A
Märkström, max. antal poler (Tu=40°C)
17,5 A
Märkspänning vid överspänningsk./Nedsmutsningsgrad II/2
320 V
Märkspänning vid överspänningsk./Nedsmutsningsgrad III/2
160 V
Märkspänning vid överspänningskat./Nedsmutsningsgrad III/3
160 V
Märkspänning vid överspänningsk./Nedsmutsningsgrad II/2
2,5 kV
Märkspänning vid överspänningsk./Nedsmutsningsgrad III/2
2,5 kV
Märkstötspänning vid överspänningsk./Nedsmutsningsgrad III/3
2,5 kV
Устойчивость к воздействию кратковременного тока
3 x 1s with 76 A

Rated data acc. to CSA

Instituto (CSA)
CSA
Certificat Nº (CSA)
200039-1121690
Tension nominale (groupe d'utilisation B / CSA)
300 V
Corrente nominale (Gruppo B / CSA)
11 A
정격 전류(사용 그룹 D / CSA)
10 A
승인값 참조
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institut (cURus)
CURUS
Zertifikat-Nr. (cURus)
E60693
Nennspannung (Use group B / UL 1059)
300 V
Märkspänning (användargrupp D / UL 1059)
300 V
Märkström (användargrupp B / UL 1059)
11 A
Nennstrom (Use group D / UL 1059)
10 A
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

Embalaje
Box
Longitud de VPE
236 mm
Largeur VPE
116 mm
Altezza VPE
26 mm

Important note

Соответствие IPC
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Примечания
  • Additional variants on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • P on drawing = pitch
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
