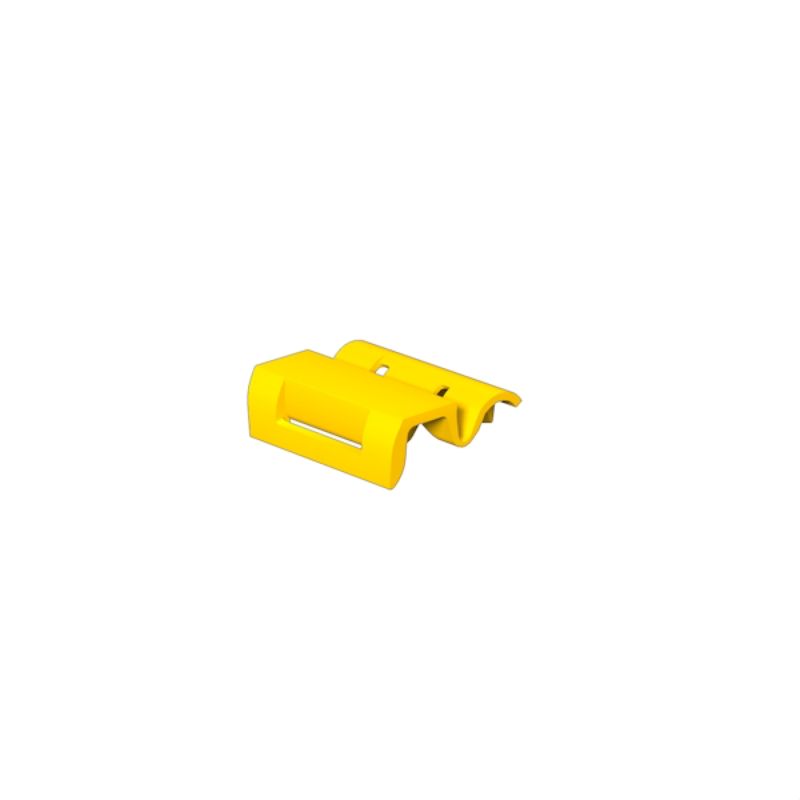

SlimFix Clip, Conductor and cable markers, 1.5 - 2.5 mm, 12 x 5.8 mm, yellow

ID výrobku 1813160000
Stáhnout datový list Engineeringondersteuning Productdownloads
Använda produkter 5
Godkännanden General ordering data Dimensions and weights Temperaturer Environmental Product Compliance Dati generali Leiter- und Kabelmarkierer Klassificeringar

Godkännanden

ROHS
Uppfyllelse

General ordering data

Version
SlimFix Clip, Conductor and cable markers, 1.5 - 2.5 mm, 12 x 5.8 mm, yellow
Order No.
1813160000
Type
SFC 0/12 MC NE GE
GTIN (EAN)
4032248296804
VPE
200 Stück

Dimensions and weights

Depth
7 mm
Depth (inches)
0,276 inch
Height
12 mm
Bygghöjd (tum)
0,472 inch
Width
5,8 mm
Byggbredd (tum)
0,228 inch
Peso neto
0,49 g

Temperaturer

Operating temperature range
-40...100 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Nej mSvHC över 0,1 viktprocent
Uhlíková stopa výrobku
  • Cradle to gate:
    0.003 kg CO2 eq.

Dati generali

Basic material
ポリアミド66
Colour
yellow
compatible printer
[PRINTJET CONNECT](~/p/2715590000)
Halogen
Nem
Material colour according to resistance code
4
Number of markers per combination

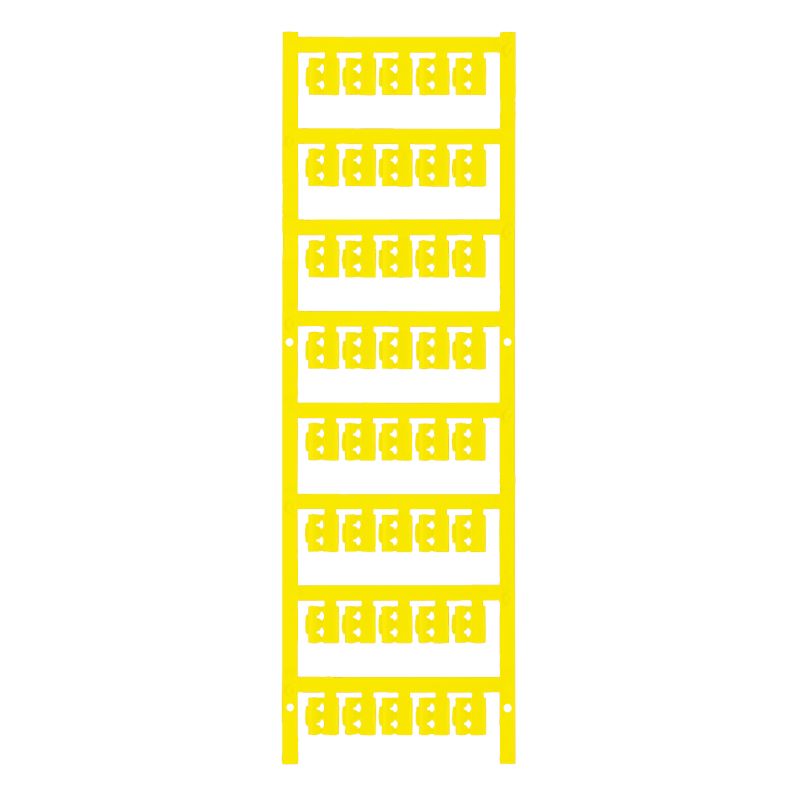

1 MultiCard = 컨덕터 및 케이블 마커
Number of markers per packaging unit
  • 공급 형태:
    MultiCard
Operating temperature range
-40...100 °C
Operating temperature range, max.
100 °C
Operating temperature range, min.
−40 °C
Recommended industries
Machinery
Size of labelling field
12 x 4.1 mm
Type of printing
neutralna
UL 94 flammability rating
V-2
Width
5,8 mm

Leiter- und Kabelmarkierer

Conductor cross-section, max.
1 mm²
Conductor cross-section, min.
0,5 mm²
Conductor O.D.
1.5 - 2.5 mm
Conductor O.D., max.
2,5 mm
Conductor O.D., min.
1,5 mm
Cross-section for connected wire
0.5 - 1 mm²
Halogen
Non

Klassificeringar

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
