SIHA 3/G20

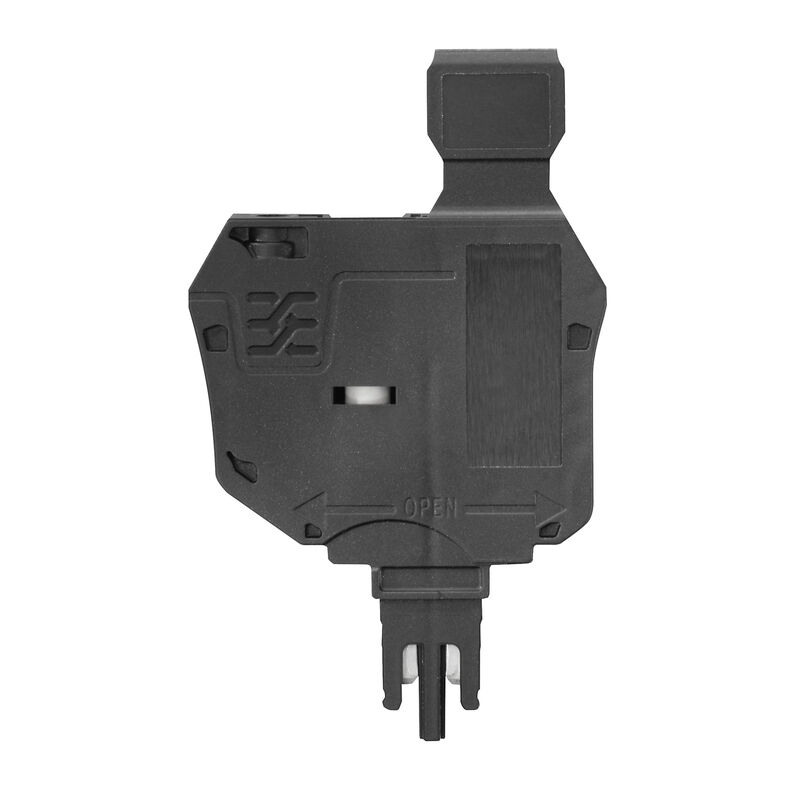

Product image
SIHA 3/G20

SIHA 3/G20

Fuse holder for feed-through modular terminal, black, 6.3 A, pluggable, V-0, Wemid

Item No. 7926190000
Download data sheet Product Downloads Engineering Support
Is accessory of 74 Related products 26
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data General Product images Classifications

Approvals

ROHS
Conform

General ordering data

Version
Fuse holder for feed-through modular terminal, black, 6.3 A, pluggable, V-0, Wemid
Order No.
7926190000
Type
SIHA 3/G20
GTIN (EAN)
4032248264612
Qty.
1,000 Styk

Dimensions and weights

Depth
63.1 mm
Depth (inches)
2.484 inch
Height
39.38 mm
Height (inches)
1.55 inch
Width
6 mm
Width (inches)
0.236 inch
Nettó tömeg
7.08 g

Temperatures

Ambient temperature
-5 °C…40 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
120 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Colour
black
Klasifikace hořlavosti UL 94
V-0

System specifications

Version
Fuse cartridge

Additional technical data

Installation advice
Operating instructions/catalogue
Type of mounting
Plugged

General

Installation advice
Operating instructions/catalogue
Operating temperature range, max.
120 °C

Product images

Classifications

ETIM 8.0
EC002848
ETIM 9.0
EC002848
ETIM 10.0
EC002848
ECLASS 14.0
27-25-03-90
ECLASS 15.0
27-25-03-90
