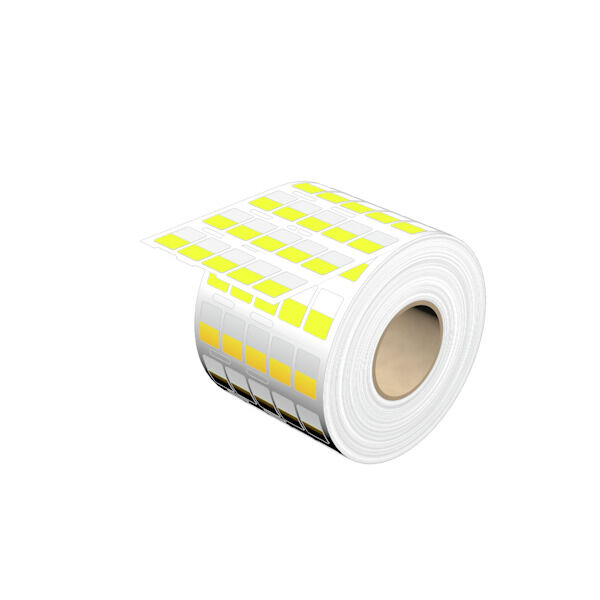

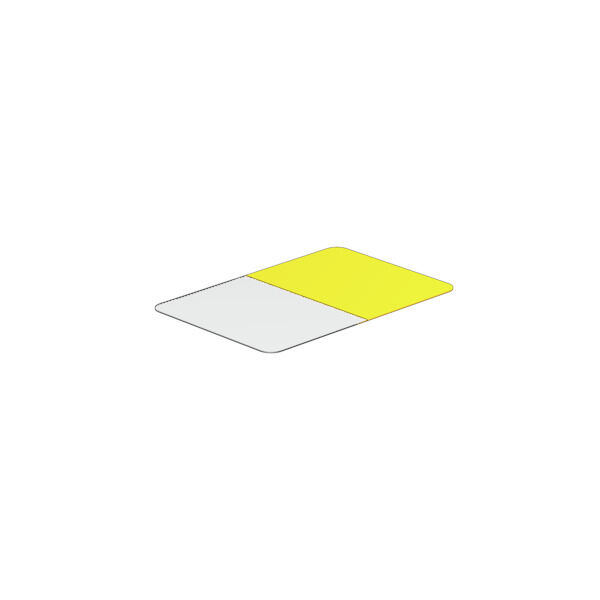

THM, Conductor and cable markers, 1.9 - 1.9 mm, 12 x 18 mm, yellow

Nr. produktu 1856630000
Ladda ner datablad Engineering Support Product Downloads
Accessories 1 Related products 26
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Conductor and cable markers Classifications

Approvals

ROHS
Conform

General ordering data

Verze
THM, Conductor and cable markers, 1.9 - 1.9 mm, 12 x 18 mm, yellow
Číslo objednávky
1856630000
Art
THM WO 12/18 GE
GTIN (EAN)
4032248399574
Qty.
1 items

Dimensions and weights

Hloubka
0,025 mm
Depth (inches)
0,001 inch
Höhe
12 mm
Height (inches)
0,472 inch
Šířka
18 mm
Width (inches)
0,709 inch
Net weight
420 g

Temperatures

Einsatztemperaturbereich
-40...150 °C

Environmental Product Compliance

RoHS-Konformitätsstatus
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Basic material
Polyester film
Colour
yellow
Halogen
No
Limma
Polyacrylate adhesive
Material colour according to resistance code
4
Number of markers per combination
1 Label reel = Conductor and cable markers
Number of markers per packaging unit
  • Form of supply:
    Label reel
Number per roll
10000
Operating temperature range
-40...150 °C
Operating temperature range, max.
150 °C
Operating temperature range, min.
-40 °C
Printed characters
without
Size of labelling field
12 x 9 mm
Type of printing
neutral
UL 94 flammability rating
V-0
Version
Self-adhesive
Width
18 mm

Conductor and cable markers

Diametro esterno conduttore
1.9 - 1.9 mm
Diámetro externo del conductor, max.
1,9 mm
Diámetro externo del conductor, min.
1,9 mm
Halogene
No
Largeur de la zone de texte
12 mm
Leiteranschlussquerschnitt, max.
6 mm²
Leiteranschlussquerschnitt, min.
0,75 mm²
Sección de conexión del conductor
0.75 - 6 mm²
Szövegmező magassága
9 mm

Classifications

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
