Properties
| Order No. | 3035150000 |

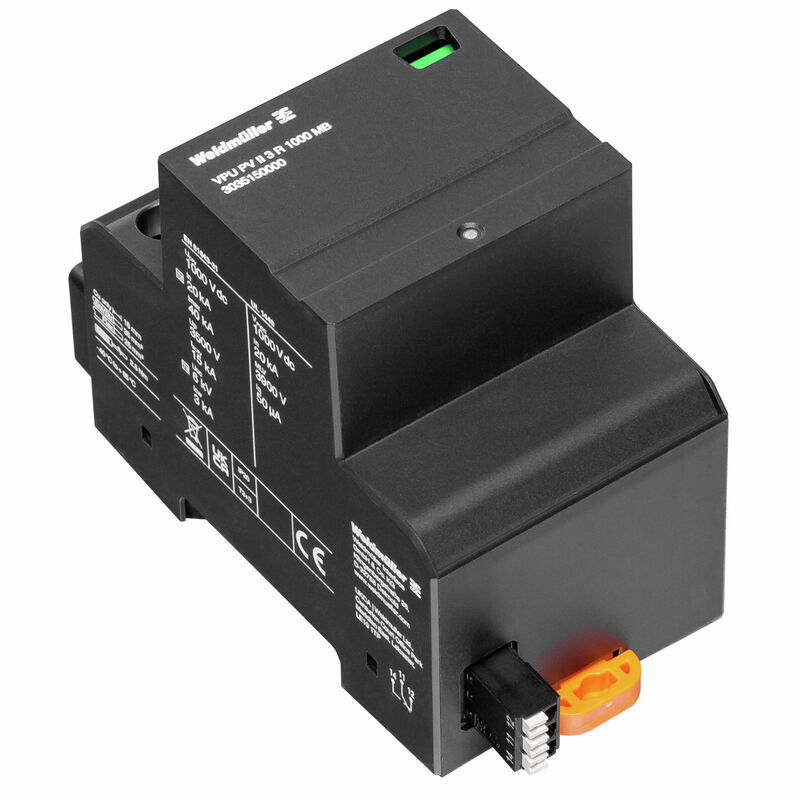

| Type | VPU PV II 3 R 1000 MB |
| GTIN (EAN) | 4099986992030 |
| Qty. | 1 items |
| Depth | 70 mm |
| Depth (inches) | 2.756 inch |
| Height | 112.3 mm |
| Height (inches) | 4.421 inch |
| Width | 53.7 mm |
| Width (inches) | 2.114 inch |
| Net weight | 304.88 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -40 °C...85 °C |
| Humidity | 5 - 95% rel. humidity |
| Cross-section for connected wire, solid core, max. | 1.5 mm² |
| Cross-section for connected wire, solid core, min. | 0.25 mm² |
| Stripping length | 5 mm |
| Colour | black |
| Protection degree | IP20 in installed state |
| Pollution severity | 2 |
| Operating height in the grounded PV system | ≤ 2000 m |
| Operating height in ungrounded PV system | ≤ 4000 m |
| Protection level Up (+/- , -/PE , +/PE) | ≤ 3.8 kV |
| PV system voltage, max. Ucpv | 1,000 V |
| Requirements class | Type II |
| Short-circuit curent ISCPV | 15 kA |
| Standards |
IEC 61643-31
EN 61643-31 |
| Total discharge current Itotal ( 8/20µs) | 40 kA |
| Number of poles | 3 |
| Response time | ≤ 25 ns |
| Standards |
IEC 61643-31
EN 61643-31 |
| Voltage type | DC |
| Stripping length | 18 mm |
| Wire connection method | Screw connection |
| Type of connection | Screw connection |
| Tightening torque, min. | 2.5 Nm |
| Tightening torque, max. | 2.5 Nm |
| Wire cross-section, solid, min. | 6 mm² |
| Wire cross-section, solid, max. | 2.5 mm² |
| Wire connection cross section, finely stranded, min. | 2.5 mm² |
| Wire connection cross section, finely stranded, max. | 25 mm² |
| Connection cross-section, stranded, min. | 2.5 mm² |
| Connection cross-section, stranded, max. | 35 mm² |
| Voltage type | DC |
| Number of poles | 3 |
| Protection degree | IP20 in installed state |
| Colour | black |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_326176) |
| User Documentation | [Beipackzettel / Instruction sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_324419) |
| Catalogues | [Catalogues in PDF-format](https://www.weidmueller.com/int/service/technical_product_catalogues.jsp) |
| ETIM 6.0 | EC000941 |
| ETIM 7.0 | EC000941 |
| ETIM 8.0 | EC000941 |
| ETIM 9.0 | EC000941 |
| ECLASS 9.1 | 27-13-08-05 |
| ECLASS 10.0 | 27-13-08-05 |
| ECLASS 11.0 | 27-13-08-05 |
| ECLASS 12.0 | 27-17-90-90 |
| ECLASS 13.0 | 27-17-90-90 |
| ECLASS 14.0 | 27-17-90-90 |
| ROHS | Conform |
