Ochrona przeciwprzepięciowa mierzenie - sterowanie - regulacja, bez funkcji sygnalizacyjnej / wskaźnika funkcji

Produkt ID 8924660000
Download datablad Engineering-support Produktdownloads
Tilbehør 5 Modstykker 2 Anvendte produkter 1
Omologazioni Ogólne dane zamówieniowe Dimensions and weights Temperatury Probability of failure Zgodność produktu z wymogami środowiska naturalnego Données de mesure UL CSA protection data General data Insulation coordination acc. to EN 50178 Rated data IEC / EN Further details of approvals Connection data Электрические параметры General data Ratings IECEx/ATEX/cUL Garantie 중요 참고 사항 Classifications Tender specification sheets

Omologazioni

Homologaciones
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fe64228-e403-4415-b85f-44f3a8f8bb2c/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/c809b3ab-e765-499c-852e-d528779da9f7/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/a5387a11-3584-42f1-9c6a-815af76ec080/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UL)
E311081

Ogólne dane zamówieniowe

Version
Ochrona przeciwprzepięciowa mierzenie - sterowanie - regulacja, bez funkcji sygnalizacyjnej / wskaźnika funkcji
Référence
8924660000
Típus
VSPC TELE UK0 2WIRE
GTIN (EAN)
4032248696307
Förp.
1 Styk

Dimensions and weights

Profundidad
69 mm
Depth (inches)
2,717 inch
Hauteur
90 mm
Height (inches)
3,543 inch
Width
17,8 mm
Width (inches)
0,701 inch
Net weight
46 g

Temperatury

Storage temperature
-40 °C...80 °C
Operating temperature
-40 °C...70 °C
Humidity
5...96 %

Probability of failure

SIL in compliance with IEC 61508
3
MTTF
2.330 a
SFF
93,98 %
λges
49
PFH w 1*10-9 1/h
2.95

Zgodność produktu z wymogami środowiska naturalnego

Statut de conformité RoHS
Zgodne, z wyłączeniem
RoHS Exemption (if applicable/known)
7a
REACH SVHC
Lead 7439-92-1
SCIP
71e97bb7-979f-4330-94c0-20c629bb05e3

Données de mesure UL

Certificate No. (UL)
E311081
UL certificate
[UL 497b Certificate](PDF/E311081VOL1SEC2.pdf)

CSA protection data

Gas group C
IIB
Gas group D
IIA
Gas groups A, B
IIC
Input voltage, max. Ui
180 V
Internal capacity, max. CI
10 nF
Internal inductance, max. LI
0 µH

General data

Colour
orange
Design
Terminal
miscellaneous
Optical function display
No
Protection degree
IP20
Segment
Measurement - Monitoring - Setting
UL 94 flammability rating
V-0
Version
sans fonction d'avertissement / affichage de fonction

Insulation coordination acc. to EN 50178

Pollution severity
2
Surge voltage category
III

Rated data IEC / EN

Corriente de carga nominal IL
450 mA
Corriente de descarga Imáx. (8/20µs) conductor PE
2 x 10 kA
Corriente de descarga Imáx. (8/20µs) conductor-conductor
10 kA
Corriente de descarga Imáx. (8/20µs) tierra-PE
10 kA
Corriente de fuga In (8/20µs) conductor-conductor
2.5 kA
Corriente de fuga In (8/20µs) conductor-PE
2.5 kA
Corriente de fuga In (8/20µs) tierra-PE
2.5 kA
Corriente de prueba de iluminación, Iimp (10/350 µs) Hilo-PE
2 x 0.2 kA
Impuls-Rücksetzvermögen
≤ 60 ms
Lightning test current, Iimp (10/350 µs) GND-PE
0.2 kA
Lightning test current, Iimp (10/350 µs) wire-wire
0.2 kA
Max. continuous voltage, Uc (AC)
130 V
Max. continuous voltage, Uc (DC)
180 V
Modo de caída de sobrecarga
Modus 2
Number of poles
1
Protection level on output side Wire-PE 1kV/µs, typically
450 V
Protection level on output side Wire-wire 1 kV/µs, typically
250 V
Protection level on output side Wire-wire 8/20 µs, typically
300 V
Rated current IN
450 mA
Rated voltage (AC)
127 V
Rated voltage (DC)
120 V
Requirements category acc. to IEC 61643-21
C1
C2
C3
D1
Resistencia a la corriente de choque C2
5 kA 8/20 μs
Signal transmission properties (-3 dB)
101.7 MHz
Signalling contact
No
Standards
IEC 61643-21 (conforme)
Surge current-carrying capacity C1
<1 kA 8/20 μs
Surge current-carrying capacity C3
100 A 10/1000 μs
Surge current-carrying capacity D1
2.5 kA 10/350 μs
Voltage type
AC
Volume resistance
2,20 Ω

Further details of approvals

GOST certificate
[GOST-Zertifikat](PDF/7950_n1-n4.pdf)

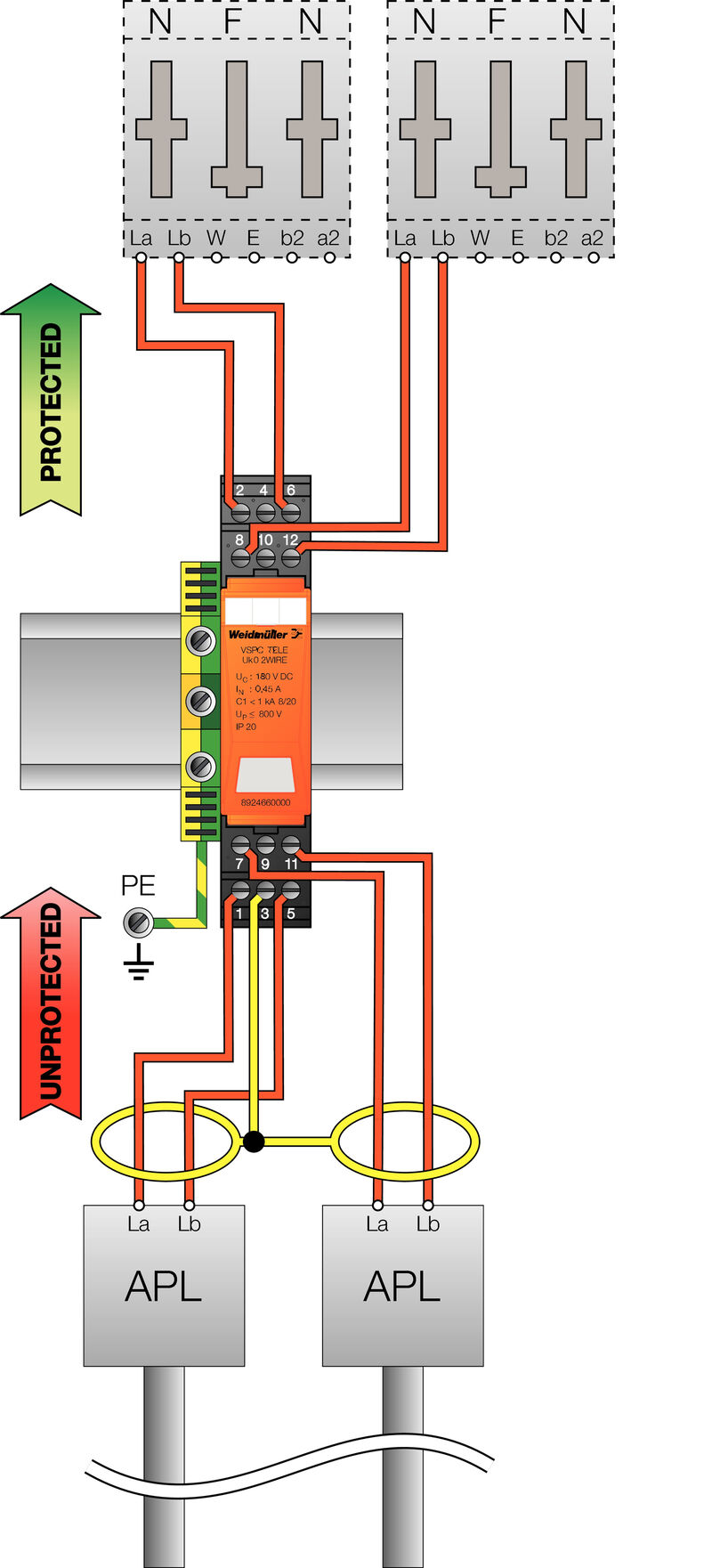

Connection data

Type of connection
Pluggable in VSPC BASE

Электрические параметры

Voltage type
AC

General data

Number of poles
1
Protection degree
IP20
Colour
orange

Ratings IECEx/ATEX/cUL

cUL certificate
[cUL Certificate](pdf/VSPC.PDF)

Garantie

Time interval
5 ans

중요 참고 사항

Informations sur le produit
Mode 2: State where the voltage-limiting part of the SPD was short-circuited due to a very low impedance within the SPD. The line is inoperable, but the measuring equipment is still protected by means of a short-circuit.

Classifications

ETIM 8.0
EC000943
ETIM 9.0
EC000943
ETIM 10.0
EC000943
ECLASS 14.0
27-17-15-01
ECLASS 15.0
27-17-15-01

Tender specification sheets

Long specification
Surge protection plug for base element VSPC BASE 2/4 CH, transverse voltage coarse and fine protection for four wire telecommunication interfaces (Uko/So) with coarse common mode voltage protection to earth. Two-stage protection circuit in the plug consisting of coarse protection, decoupling resistors and fine protection between the signal wires and the signal ground/ground/earth. Mechanical identification of the plug to the base element according to the switching type and rated voltage. Protected plug with coding pin and counter-profile for the base element. Optical identification of the protected plug based on the type of protected switching and the voltage level. It is possible to mark the plug.
Short specification
Surge protection plug for base element VSPC BASE 2/4 CH, transverse voltage coarse and fine protection for four wire telecommunication interfaces (Uko/So) with coarse common mode voltage protection to earth.
