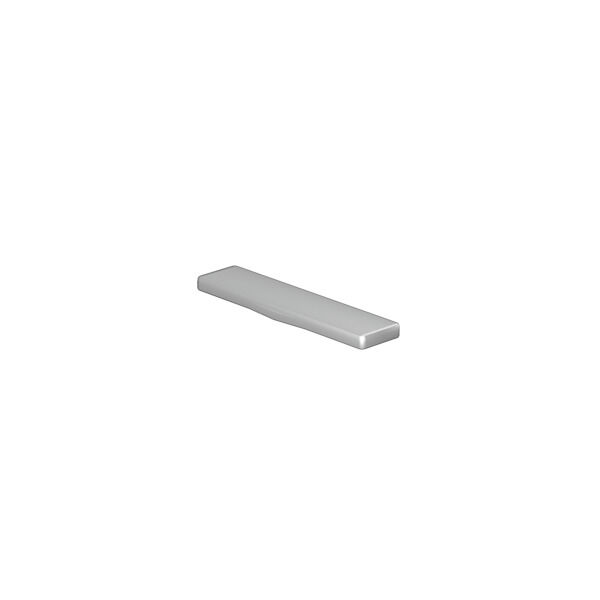

TM-I, Insert markers, 2.5 - 35 mm, 18 x 4 mm, grey

Item No. 1798060000
Download data sheet Engineering Support Product Downloads
Is accessory of 6 Related products 12
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Conductor and cable markers Classifications

Approvals

ROHS
Conform

General ordering data

Versione
TM-I, Insert markers, 2.5 - 35 mm, 18 x 4 mm, grey
Rendelési szám
1798060000
Tipo
VT-TM-I 18 MC NE GR
GTIN(EAN)
4032248241040
Qty.
640 items

Dimensions and weights

Profondità
1,7 mm
Depth (inches)
0,067 inch
Posizione verticale
18 mm
Height (inches)
0,709 inch
Larghezza
4 mm
Width (inches)
0,157 inch
Net weight
0,319 g

Temperatures

Campo delle temperature di impiego
-40...100 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.002 kg CO2 eq.

General data

Basic material
Polyamide 66
Colour
grey
compatible printer
[PRINTJET CONNECT](~/p/2715590000)
Halogen
No
Materialfärg enligt motståndskod
8
Number of markers per combination

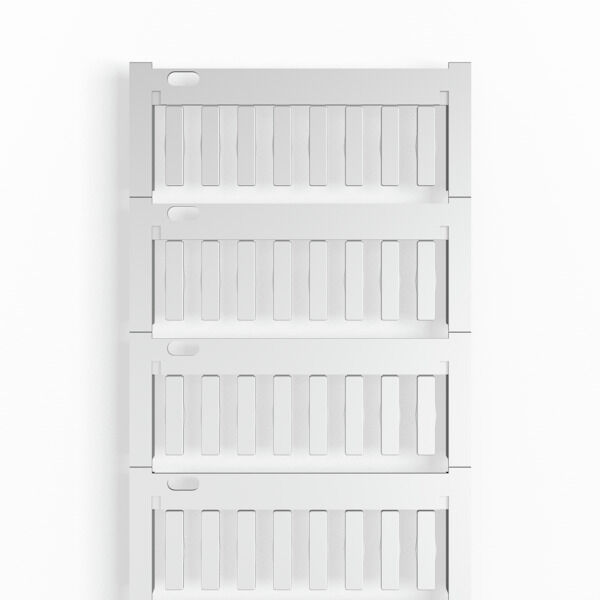

1 MultiCard = Insert markers
Number of markers per packaging unit
  • Form of supply:
    MultiCard
Number per sheet
64
Operating temperature range
-40...100 °C
Operating temperature range, max.
100 °C
Operating temperature range, min.
-40 °C
Printed characters
neutral
Recommended industries
Transportation
Machinery
Type of printing
neutral
UL 94 flammability rating
V-2
Width
4 mm

Conductor and cable markers

Conductor O.D., max.
35 mm
Halogenki
No
Ledarytterdiameter
2.5 - 35 mm
Zewnętrzna średnica przewodu, min.
2,5 mm

Classifications

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
