WDL 2.5/S/NT/L/PE

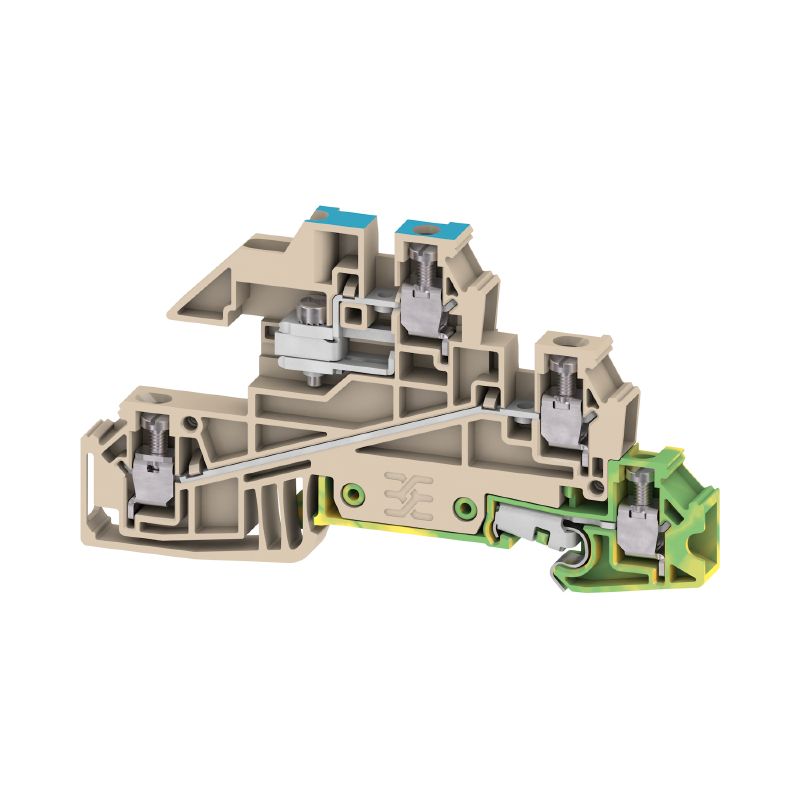

Product image
WDL 2.5/S/NT/L/PE

WDL 2.5/S/NT/L/PE

Multi level installation terminal block, Screw connection, dark beige, 2.5 mm², 24 A, 400 V, Number of connections: 5, Number of levels: 3

Produkt ID 1030600000
Åbn i konfiguratoren
Download datablad Engineering-support Produktdownloads
Tilbehør 15 Anvendte produkter 67
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Conductors for clamping (rated connection) CSA rating data General Rating data UL rating data Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/df507df8-d637-4d59-bdb6-908e5128453b/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/966ab2aa-a692-450f-aa01-511debec6d4c/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E60693

General ordering data

Ausfuehrung
Multi level installation terminal block, Screw connection, dark beige, 2.5 mm², 24 A, 400 V, Number of connections: 5, Number of levels: 3
Order No.
1030600000
Art
WDL 2.5/S/NT/L/PE
GTIN (EAN)
4008190035815
Qty.
50 items

Dimensions and weights

Tiefe
48 mm
Depth (inches)
1,89 inch
Höhe
84,5 mm
Height (inches)
3,327 inch
Breite
6,1 mm
Width (inches)
0,24 inch
Net weight
16,473 g

Temperatures

Temperatura de almacenamiento
-25 °C...55 °C
Ambient temperature
-50 °C…75 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
120 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Colour
Tmavě béžová
UL 94 flammability rating
V-0

System specifications

Version
Screw connection

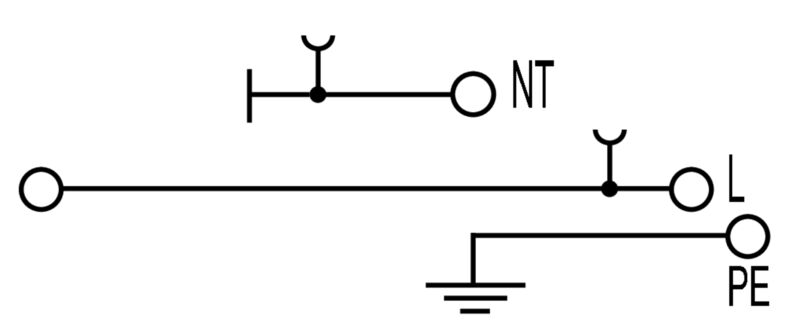

NT, L and PE connection
with busbar connection 10x3
for plug-in cross-connector
One end without connector
End cover plate required
Yes
Number of potentials
3
Number of levels
3
Number of clamping points per level
2
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
Yes
Mounting rail
TS 35
N-function
Oui
PE function
예
PEN function
아니요

Additional technical data

Explosion-tested version
No
Number of similar terminals
1
Open sides
right
Type of mounting
Snap-on

Conductors for clamping (rated connection)

Blade size
0.6 x 3.5 mm
Clampable conductor
  • Connection specification:
    Šroubové připojení
  • Průřez připojení vodiče:
    • Typ:
      eindrähtig, H05(07) V-U
    • min.:
      0,5 mm²
    • max.:
      4 mm²
    • nominal:
      2,5 mm²
  • wire end ferrule:
    • Longitud de desaislado:
      • min.:
        8 mm
      • max.:
        8 mm
      • névleges:
        8 mm
    • Meghúzási nyomaték:
      • min.:
        0,4 Nm
      • max.:
        0,6 Nm
  • Connection specification:
    Złącze śrubowe
  • Przekrój poprzeczny przyłączanego przewodu:
    • Тип:
      многожильный H07V-R
    • мин.:
      1,5 mm²
    • max.:
      4 mm²
    • nominell:
      2,5 mm²
  • kabelsko:
    • Stripping length:
      • min.:
        8 mm
      • max.:
        8 mm
      • nominal:
        8 mm
    • Tightening torque:
      • min.:
        0,4 Nm
      • max.:
        0,6 Nm
  • Connection specification:
    Screw connection
  • Cross-section for conductor connection:
    • Type:
      flexible, H05(07) V-K
    • min.:
      0,5 mm²
    • max.:
      4 mm²
    • nominal:
      2,5 mm²
  • wire end ferrule:
    • Stripping length:
      • min.:
        8 mm
      • max.:
        8 mm
      • nominal:
        8 mm
    • Tightening torque:
      • min.:
        0,4 Nm
      • max.:
        0,6 Nm
Clamping range, max.
4 mm²
Clamping range, min.
0,13 mm²
Clamping screw
M 2.5
Connection cross-section, stranded, max.
4 mm²
Connection cross-section, stranded, min.
0,13 mm²
Gauge to IEC 60947-1
A3
Number of connections
5
Stripping length
8 mm
Tightening torque, min.
0,4 Nm
Torque level with DMS electric screwdriver
1
Type of connection
Screw connection
Type of connection 2
Bus connection
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section, finely stranded, max.
4 mm²
Wire connection cross section, finely stranded, min.
0,13 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,13 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,13 mm²
Wire connection cross-section, solid core, max.
4 mm²
Wire connection cross-section, solid core, min.
0,13 mm²
Åtdragningsmoment, max.
0,6 Nm
Направление соединения
on side
Поперечное сечение подключаемого провода AWG, макс.
AWG 12

CSA rating data

Certificate No. (CSA)
12400-296
Current size B (CSA)
10 A
Current size D (CSA)
10 A
Voltage size B (CSA)
300 V
Voltage size D (CSA)
300 V
Wire cross section max. (CSA)
12 AWG
Wire cross section min. (CSA)
26 AWG

General

Sección de conexión del conductor AWG, máx.
AWG 12
Section de raccordement du conducteur, AWG, min.
AWG 26
Szabványok
In accordance with IEC 60947-7-1
장착 레일
TS 35

Rating data

Rated cross-section
2,5 mm²
Rated voltage
400 V
Rated DC voltage
400 V
Nominal current
24 A
Current at maximum wires
32 A
Standards
Según IEC 60947-7-1
Resistencia de paso según IEC 60947-7-x
1,33 mΩ
Rated impulse withstand voltage
4 kV
Power loss in accordance with IEC 60947-7-x
0,77 W
Märkspänning (L/L)
400 V
Rated voltage (L / N)
250 V
Rated voltage (L / PE)
250 V
Pollution severity
3
Surge voltage category
III

UL rating data

Certificate No. (UR)
E60693
Conductor size Factory wiring max. (UR)
12 AWG
Conductor size Factory wiring min. (UR)
26 AWG
Conductor size Field wiring max. (UR)
12 AWG
Conductor size Field wiring min. (UR)
22 AWG
Current size C (UR)
15 A
Voltage size C (UR)
300 V

Classifications

ETIM 8.0
EC001329
ETIM 9.0
EC001329
ETIM 10.0
EC001329
ECLASS 14.0
27-25-01-10
ECLASS 15.0
27-25-01-10
