ZQV 4N/6

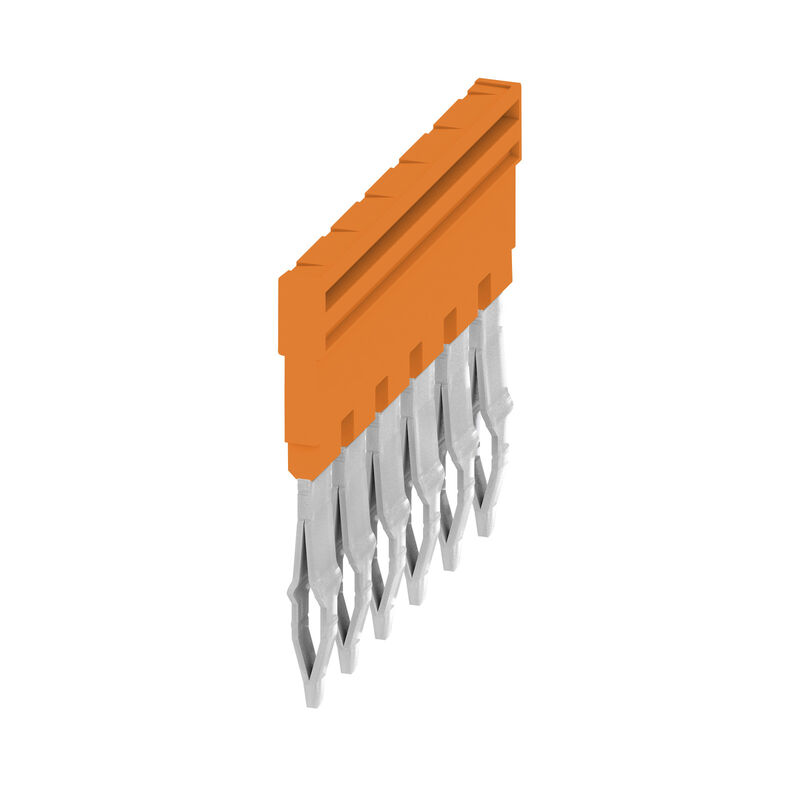

Obrázek výrobku

ZQV 4N/6

Connecteur transversal (bloc de jonction), enfiché, Orange, 32 A, Nombre de pôles: 6, Pas en mm (P): 6.10, Isolé: Oui, Largeur: 34.3 mm

ID výrobku 1527990000
Stáhnout datový list Technická podpora Dokumenty ke stažení
Je příslušenstvím 470 Příbuzné výrobky 458
Approvals Datos generales para pedido Dimensions and weights Temperatures Environmental Product Compliance Caractéristiques des matériaux Additional technical data Rozměry General Märkdata Nota importante Klassificeringar

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/63e27dd8-88d2-46a7-9840-58fe3637ac20/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2a4a8742-86e3-45cc-8b68-a2da67801c40/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/d1a278f5-5acb-4199-8c83-b599817086bc/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/106d65db-9035-4009-8a4b-55480269373e/DAP_Master_ICON,w_80,q_80)
ROHS
Shoda

Datos generales para pedido

Ausfuehrung
Connecteur transversal (bloc de jonction), enfiché, Orange, 32 A, Nombre de pôles: 6, Pas en mm (P): 6.10, Isolé: Oui, Largeur: 34.3 mm
Best.-Nr.
1527990000
Type
ZQV 4N/6
GTIN (EAN)
4050118332919
Qty.
20 ks

Dimensions and weights

Tiefe
27,95 mm
Глубина (дюймов)
1,1 inch
Height
2,8 mm
Bygghöjd (tum)
0,11 inch
Breite
34,3 mm
Šířka (v palcích)
1,35 inch
Čistá hmotnost
4,347 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Operating temperature
-60 °C...130 °C
Trvalá provozní teplota, min.
-60 °C
Trvalá provozní teplota, max.
130 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Ne SVHC nad 0,1 wt%

Caractéristiques des matériaux

Basic material
Wemid
Colour
Oranžová
UL 94 flammability rating
V-0

Additional technical data

Explosion-tested version
Yes
Type of fixing
Plugged

Rozměry

Pitch in mm (P)
6,1 mm

General

Number of poles
6

Märkdata

Rated voltage
400 V
Nominal current
32 A

Nota importante

Product information
Due to stability and temperature reasons It is only possible to break out 60% of contact elements. The usage of cross connectors reduces the rated voltage to 400 V.The voltage reduced to 25 V if cut cross connection with blank cut edges are used.

Klassificeringar

ETIM 8.0
EC000489
ETIM 9.0
EC000489
ETIM 10.0
EC000489
ECLASS 14.0
27-25-03-03
ECLASS 15.0
27-25-03-03
