SCREWTY-M12-DM

Download data sheet Related products

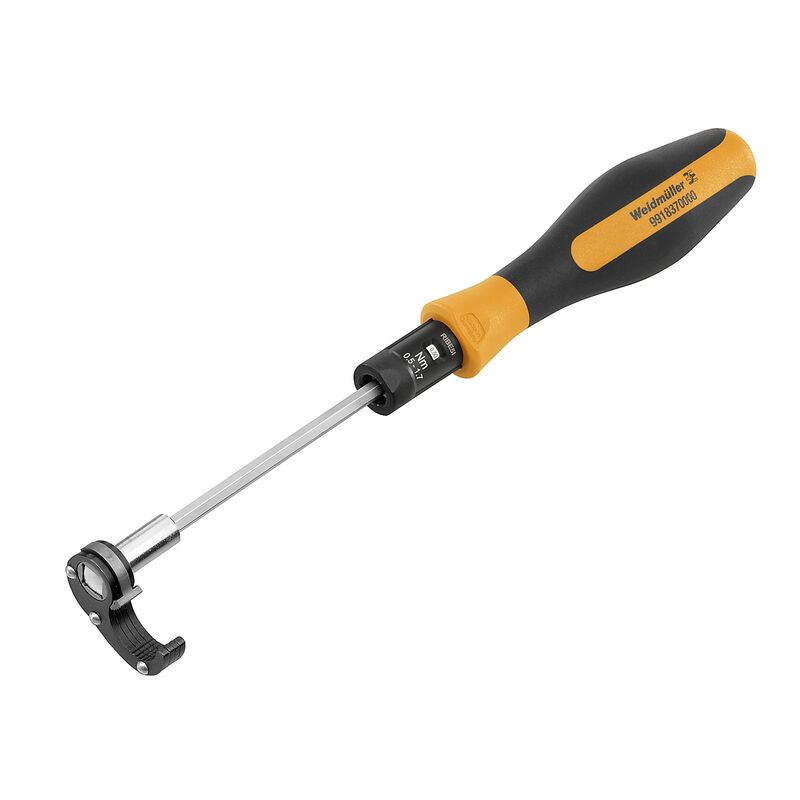

SCREWTY-M12-DM

Cable gland tool for moulded M12 lines

Item No. 1900001000

Properties

General ordering data

Version	Cable gland tool for moulded M12 lines
Order No.	1900001000
Type	SCREWTY-M12-DM
GTIN (EAN)	4032248436408
Qty.	1 items
Packaging	Cardboard box

Dimensions and weights

Net weight

268 g

Environmental Product Compliance

RoHS Compliance Status	Not affected
REACH SVHC	No SVHC above 0.1 wt%

Torque setting, max.	1.7 Nm
Torque setting, min.	0.5 Nm

Product information

Included in delivery:

Torque screwdriver 0.5-1.7 Nm + Setting aid
Interchangeable blade 1/4 inch
Attachment M12 for moulded lines

Product Change Notification	[20210319 Technical change to Screwty® torque screwdriver](https://mdcop.weidmueller.com/mediadelivery/asset/900_203154) [20210319 Technische Änderung zu Screwty® Drehmomentschraubendreher](https://mdcop.weidmueller.com/mediadelivery/asset/900_203155)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)
Brochures	[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)

Classifications

ETIM 6.0	EC000149
ETIM 7.0	EC000149
ETIM 8.0	EC000149
ETIM 9.0	EC000149
ECLASS 9.0	21-04-50-03
ECLASS 9.1	21-01-90-90
ECLASS 10.0	21-04-50-03
ECLASS 11.0	21-01-90-90
ECLASS 12.0	21-01-90-90
ECLASS 13.0	21-01-90-90
ECLASS 14.0	21-01-90-90
