PSSR 24VDC/1PH AC 25A
Power Solid-State Relais, Solid state contactor, Rated control voltage: 3.5…32 V DC , Rated switching voltage: 12...275 V AC, Continuous current: 17 A (AC51) at 40 °C, 3.5 A (AC 53), Screw connection
Item No.
1406200000
Properties
| Version | Power Solid-State Relais, Solid state contactor, Rated control voltage: 3.5…32 V DC , Rated switching voltage: 12...275 V AC, Continuous current: 17 A (AC51) at 40 °C, 3.5 A (AC 53), Screw connection |
| Order No. | 1406200000 |
| Type | PSSR 24VDC/1PH AC 25A |
| GTIN (EAN) | 4050118206821 |
| Qty. | 1 items |
| Depth | 115.9 mm |
| Depth (inches) | 4.563 inch |
| Height | 98 mm |
| Height (inches) | 3.858 inch |
| Width | 22.5 mm |
| Width (inches) | 0.886 inch |
| Net weight | 244 g |
| Storage temperature | -55 °C...125 °C |
| Operating temperature | -55 °C...100 °C |
| Humidity | 40...85 % (indoor) no condensation |
| RoHS Compliance Status | Compliant |
| REACH SVHC | No SVHC above 0.1 wt% |
| Certificate No. (cURus) | E360862 |
| Rated control voltage | 3.5…32 V DC |
| Nominal control current | 10...13 mA |
| Power rating | < 500 mW |
| Status indicator | LED yellow |

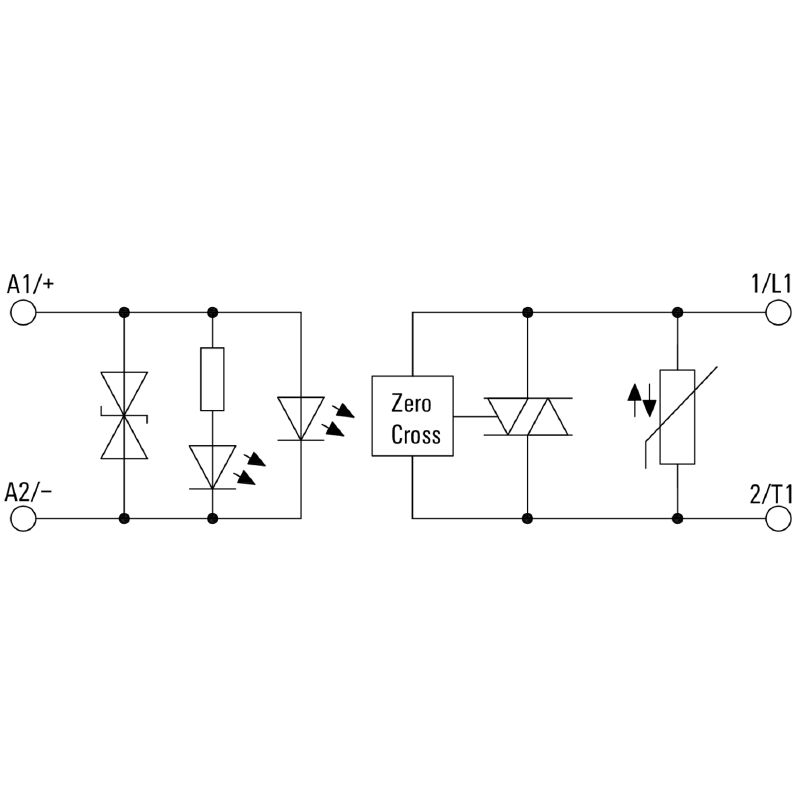

| Protective circuit | Suppressor diode |
| Input frequency | 10 Hz |
| Rated switching voltage | 12...275 V AC |
| Continuous current | 17 A (AC 51) @ 40 °C; 3.5 A (AC 53) |
| Max. switching current | 25 A |
| Load category |
AC 51
AC 53 |
| Inrush current | 140 A (10 ms) |
| Pulse load, max. current | 250 A (10 ms), non-recurrent |
| Load limit integral (I²t) <10 ms | 340 A²s |
| Switch-on delay | ≤ 10 ms |
| Switch-off delay | ≤ 10 ms |
| Voltage drop at max. load | ≤1.25 V |
| Leakage current | ≤ 1 mA |
| Min. switching current | 5 mA |
| Short-circuit-proof | No |
| Protective circuit, load side | Varistor |
| Contact type | 1 NO contact (Triac (zero-cross switch)) |
| Output voltage frequency range | 50...60 Hz |
| max. switching frequency (DC control voltage) | 10 Hz |
| Version | Single-phase with mounted heat sink (zero-voltage switch output) |
| Rail | TS 35 |
| Colour | black |
| Insulation coordination according to | EN 60947-4-3:2014 |
| Pollution severity | 2 |
| Surge voltage category | III |
| Dielectric strength for control side - load side | 4 kVeff |
| Dialectric strength of load side - housing | 4 kVeff |
| Impulse withstand voltage | 4 kV (1.2/50 µs) |
| Protection degree | IP20 |
| Certificate No. (cURus) | E360862 |
| Wire connection method (control side) | Screw connection |
| Nom. rated connection clamping range (control side) | 1.5 mm² |
| Min. rated connection clamping range (control side) | 0.13 mm² |
| Max. rated connection clamping range (control side) | 3.3 mm² |
| Min. tightening torque (control side) | 0.4 Nm |
| Max. tightening torque (control side) | 0.5 Nm |
| Blade size (control side) | 0.6 x 3.5 mm |
| Wire connection method (load side) | Screw connection |
| Nom. rated connection clamping range (load side) | 6 mm² |
| Min. rated connection clamping range (load side) | 1.5 mm² |
| Max. rated connection clamping range (load side) | 6 mm² |
| Wire connection method (load side) | M5 ring cable lug (insulated) |
| Min. tightening torque (load side) | 2 Nm |
| Max. tightening torque (load side) | 3 Nm |
| Blade size (load side) | Gr. PZ2 |
| Wire connection method | Screw connection |
| Approval/Certificate/Document of Conformity | [EU Konformitätserklärung / EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_36000) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_61672) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1406200000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1406200000) |
| User Documentation | [Beipackzettel / Package Insert - multilingual](https://mdcop.weidmueller.com/mediadelivery/asset/900_36030) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002055 |
| ETIM 7.0 | EC002055 |
| ETIM 8.0 | EC002055 |
| ETIM 9.0 | EC002055 |
| ECLASS 9.0 | 27-37-10-14 |
| ECLASS 9.1 | 27-37-10-14 |
| ECLASS 10.0 | 27-37-10-14 |
| ECLASS 11.0 | 27-37-10-14 |
| ECLASS 12.0 | 27-37-10-14 |
| ECLASS 13.0 | 27-37-10-14 |
| ECLASS 14.0 | 27-37-10-14 |
| Approvals |    |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E360862 |
