Properties
| Version | Tools, Crimping tool for contacts, 0.5mm², 2.5mm² |
| Order No. | 9040490000 |

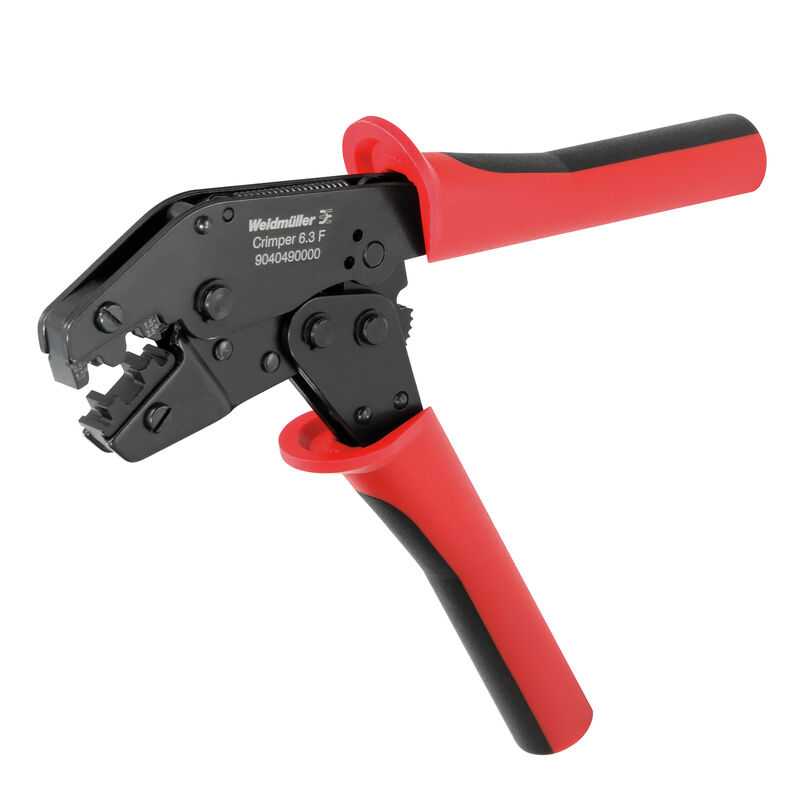

| Type | CRIMPER 6.3 F |
| GTIN (EAN) | 4008190461454 |
| Qty. | 1 items |
| Height | 60 mm |
| Height (inches) | 2.362 inch |
| Width | 250 mm |
| Width (inches) | 9.842 inch |
| Net weight | 418 g |
| RoHS Compliance Status | Not affected |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 2159813b-98fd-4068-b62a-bc89a046c012 |
| Description of article | Crimping tool for flat plug-in connectors 0.5 - 2.5mm² |
| Version | Mechanical, without interchangeable inserts |
| Crimping range, max. | 2.5 mm² |
| Crimping range, min. | 0.5 mm² |
| Plug width | 6.3 mm |
| Type of contact | F-plug / -sleeve |
| Wire end ferrules cross-section, max. | 0.5 mm² |
| Wire end ferrules cross-section, min. | 0.25 mm² |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000168 |
| ETIM 7.0 | EC000168 |
| ETIM 8.0 | EC000168 |
| ETIM 9.0 | EC000168 |
| ECLASS 9.0 | 21-04-38-11 |
| ECLASS 9.1 | 21-04-38-11 |
| ECLASS 10.0 | 21-04-38-11 |
| ECLASS 11.0 | 21-04-38-11 |
| ECLASS 12.0 | 21-04-38-11 |
| ECLASS 13.0 | 21-04-38-11 |
| ECLASS 14.0 | 21-04-38-11 |
