Properties
| Version | Tools, 0.25mm², 6mm², Trapezoidal indentation crimp |
| Order No. | 2676290000 |

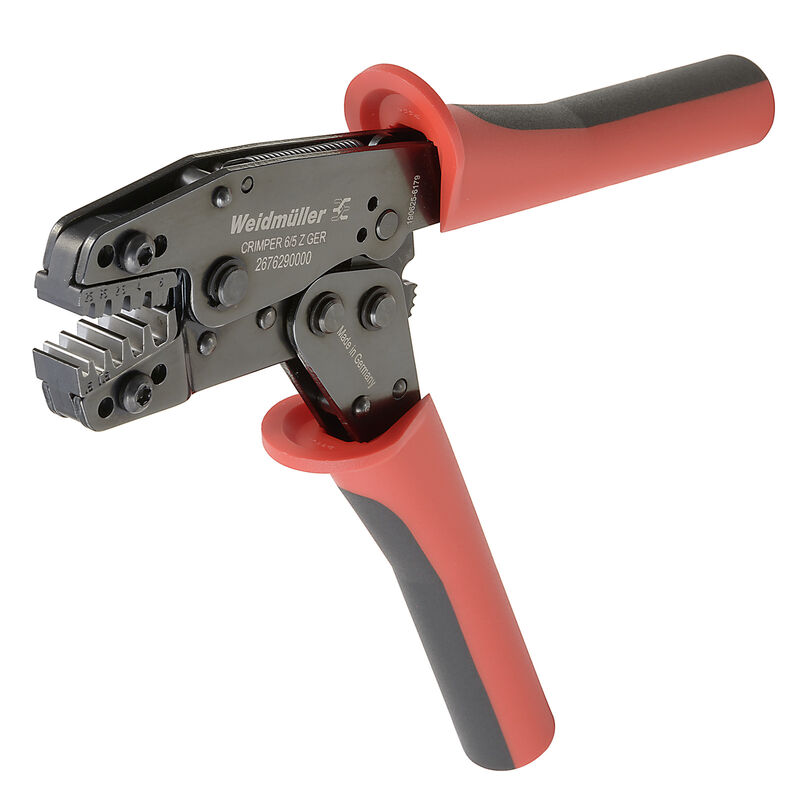

| Type | CRIMPER 6/5 Z GER |
| GTIN (EAN) | 4050118741681 |
| Qty. | 1 items |
| Depth | 30 mm |
| Depth (inches) | 1.181 inch |
| Height | 78 mm |
| Height (inches) | 3.071 inch |
| Width | 200 mm |
| Width (inches) | 7.874 inch |
| Net weight | 419.7 g |
| RoHS Compliance Status | Not affected |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 2159813b-98fd-4068-b62a-bc89a046c012 |
| Version | Mechanical, without interchangeable inserts |
| Crimping range, max. | 6 mm² |
| Crimping range, min. | 0.25 mm² |
| Type of contact | Wire-end ferrules with/without plastic collars |
| Crimping profile 5 | 6 mm² |
| Crimping type/profile | Trapezoidal indentation crimp |
| Wire end ferrules cross-section, max. | 6 mm² |
| Wire end ferrules cross-section, min. | 0.25 mm² |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000168 |
| ETIM 7.0 | EC000168 |
| ETIM 8.0 | EC000168 |
| ETIM 9.0 | EC000168 |
| ECLASS 9.0 | 21-04-38-11 |
| ECLASS 9.1 | 21-04-38-11 |
| ECLASS 10.0 | 21-04-38-11 |
| ECLASS 11.0 | 21-04-38-11 |
| ECLASS 12.0 | 21-04-38-11 |
| ECLASS 13.0 | 21-04-38-11 |
| ECLASS 14.0 | 21-04-38-11 |
