Properties
| Version | Standard distributor for Ex applications EEx(ia), 1-way distributor EEx, IP66 |
| Order No. | 8564150000 |

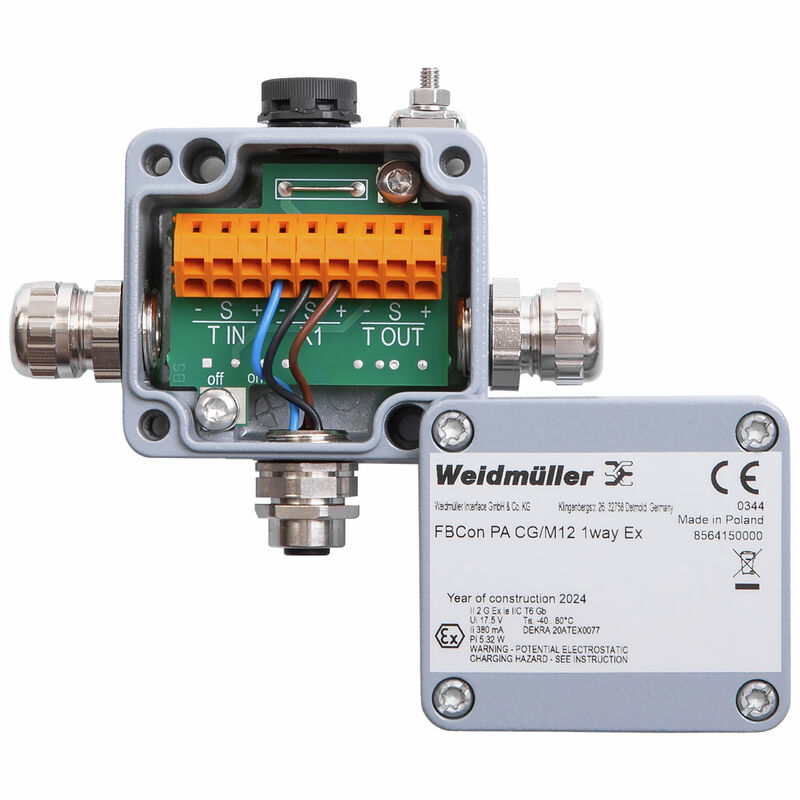

| Type | FBCON PA CG/M12 1WAY EX |
| GTIN (EAN) | 4032248238521 |
| Qty. | 1 items |
| Depth | 34 mm |
| Depth (inches) | 1.339 inch |
| Height | 37 mm |
| Height (inches) | 1.457 inch |
| Width | 58 mm |
| Width (inches) | 2.283 inch |
| Length | 64 mm |
| Length (inches) | 2.52 inch |
| Net weight | 257 g |
| Storage temperature | -40 °C...80 °C |
| Ambient temperature | -40 °C...80 °C |
| Operating temperature | -40 °C...80 °C |
| SIL in compliance with IEC 61508 | None |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6bI, 6c, 7cI |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 3a5f5913-76fc-4ff5-8563-4463f80bbe02 |
| Bus system |
Profibus-PA
Foundation Fieldbus |
| Cable entry |
Brass cable gland
Branch line M12 |
| Conductor O.D., max. | 9.5 mm |
| Conductor O.D., min. | 5.5 mm |
| Connection type PE | M12 spur line |
| Contact carrier material | Brass |
| Contact material | CuZnAu |
| Design of housing | With pressure compensation element |
| Housing main material |
Aluminium
AISi12 |
| Number of contact sockets | 1 |
| Pollution severity | 2 |
| Protection degree | IP66 |
| Type of distribution | 1-way distributor EEx |
| Type of mounting |
surface-mounted
Front mounting |
| Approval/Certificate/Document of Conformity | |
| Engineering Data | |
| CADENAS eCATALOG | |
| Product Change Notification | |
| Software | |
| User Documentation | |
| Catalogues |
| ETIM 6.0 | EC001604 |
| ETIM 7.0 | EC001604 |
| ETIM 8.0 | EC001604 |
| ETIM 9.0 | EC001604 |
| ECLASS 9.0 | 27-24-26-08 |
| ECLASS 9.1 | 27-24-26-08 |
| ECLASS 10.0 | 27-24-26-08 |
| ECLASS 11.0 | 27-24-26-08 |
| ECLASS 12.0 | 27-44-01-11 |
| ECLASS 13.0 | 27-44-01-11 |
| ECLASS 14.0 | 27-44-01-11 |
| Approvals |    |
| ROHS | Conform |
| UL File Number Search | |
| Certificate no. (cULus) | E141197 |
