Properties

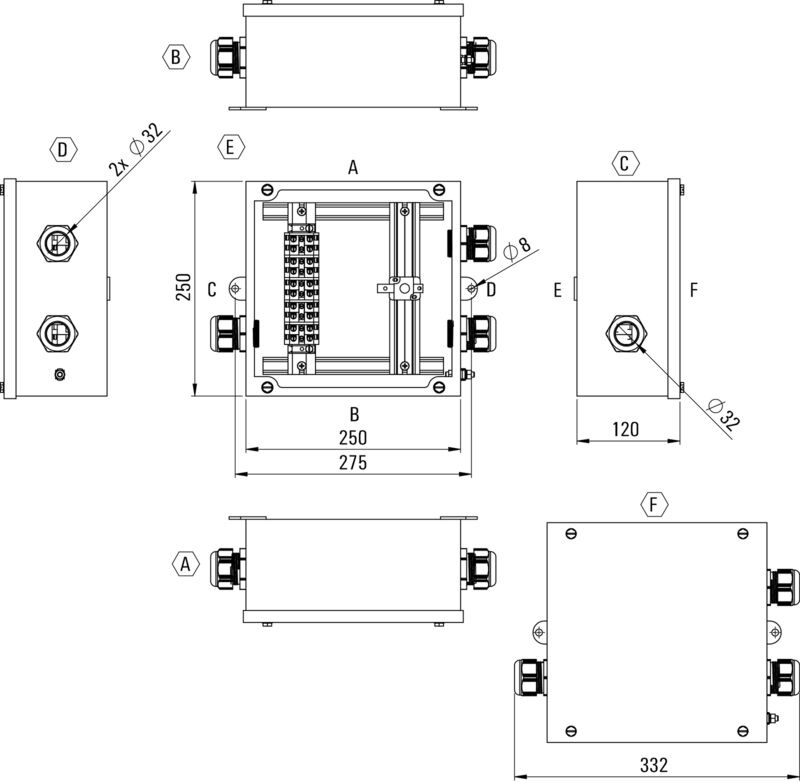

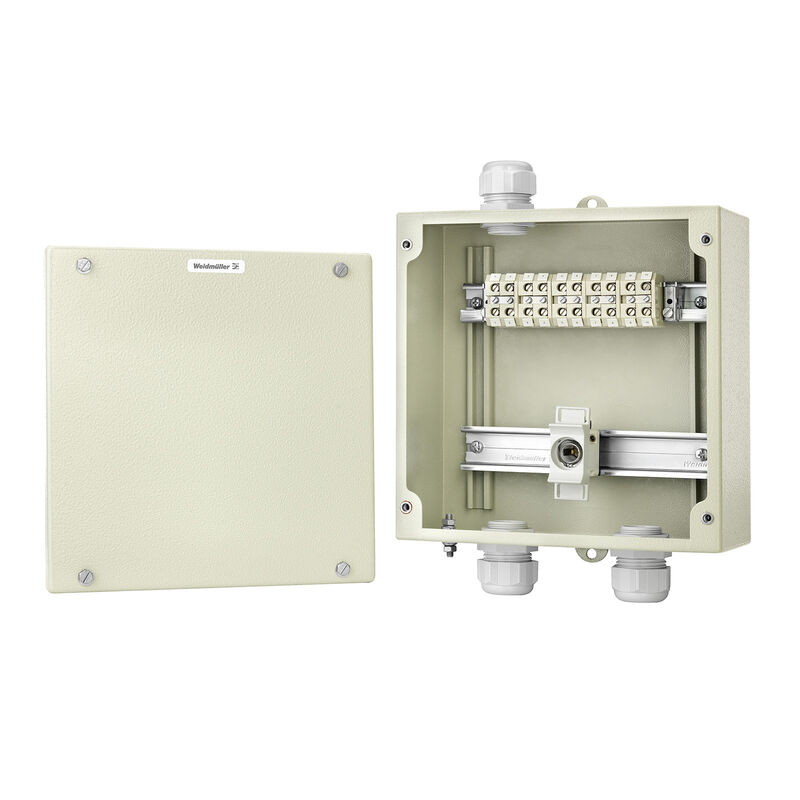

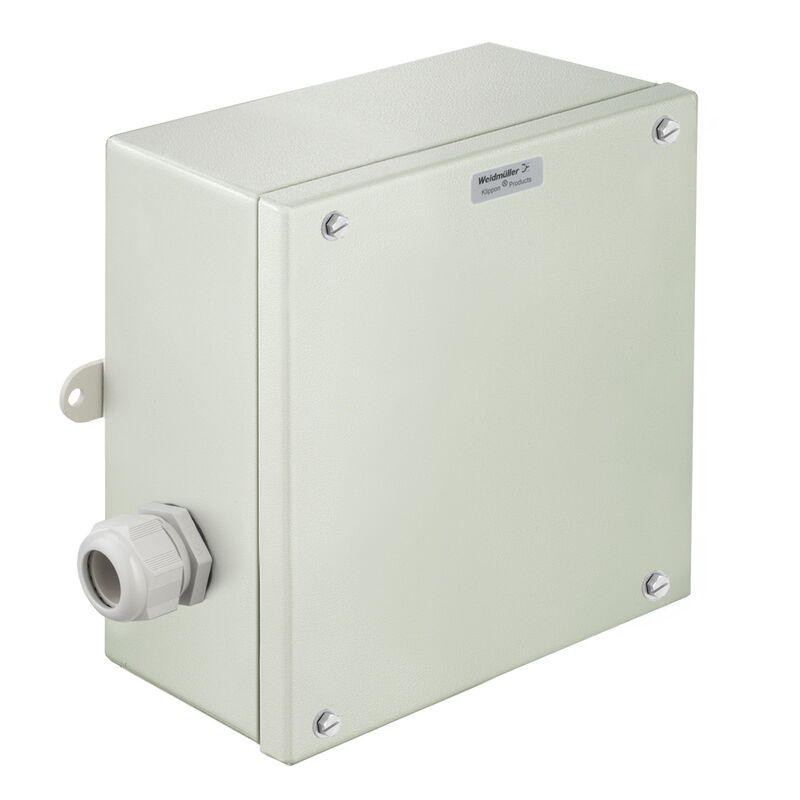

| Version | Klippon STB (Small Terminal Box), Enclosures, Height: 250 mm, Width: 250 mm, Depth: 120 mm, Material: Sheet steel, Powder-coated, Pebble grey |
| Order No. | 8000054773 |
| Type | KLIPPON STB 4 MS FH M32 E90 |
| GTIN (EAN) | 4064675362661 |
| Qty. | 1 items |
| Depth | 120 mm |
| Depth (inches) | 4.724 inch |
| Height | 250 mm |
| Height (inches) | 9.842 inch |
| Width | 250 mm |
| Width (inches) | 9.842 inch |
| Net weight | 5,010 g |
| Operating temperature | -20 °C...80 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| SAKK 10 | 10 |
| Fuse holder available | Yes |
| Material | Sheet steel |
| Surface finish | Powder-coated |
| Colour | Pebble grey |
| Colour chart (similar) | RAL 7032 |
| Protection degree | IP66 |
| Drill holes side C | 1 x M32 |
| Drill holes side D | 2 x M32 |
| Material | Sheet steel |
| Product information |
The fire rating up to E90 acc. to DIN 4102-12 depends on concrete configurations / installations (details see “Declaration of Manufacturer” in “Downloads”) The enclosure is used for functional integrity and serves as a distribution box for cables with 5 potentials. |
| Approval/Certificate/Document of Conformity |
[MPA NRW Certificate - fire rated assembled boxes acc. to DIN 4102-12](https://mdcop.weidmueller.com/mediadelivery/asset/900_207499)
[DoM DE PS2510 210414 001ISS00 - Fire Rated Boxes](https://mdcop.weidmueller.com/mediadelivery/asset/900_211350) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_216494) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8000054773) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002503 |
| ETIM 7.0 | EC002503 |
| ETIM 8.0 | EC002503 |
| ETIM 9.0 | EC002503 |
| ECLASS 9.0 | 27-18-05-02 |
| ECLASS 9.1 | 27-18-05-02 |
| ECLASS 10.0 | 27-18-05-02 |
| ECLASS 11.0 | 27-18-05-02 |
| ECLASS 12.0 | 27-18-05-02 |
| ECLASS 13.0 | 27-18-05-02 |
| ECLASS 14.0 | 27-18-05-02 |
| ROHS | Conform |
