LSF-SMT 3.81/19/90 1.5SN BK TU

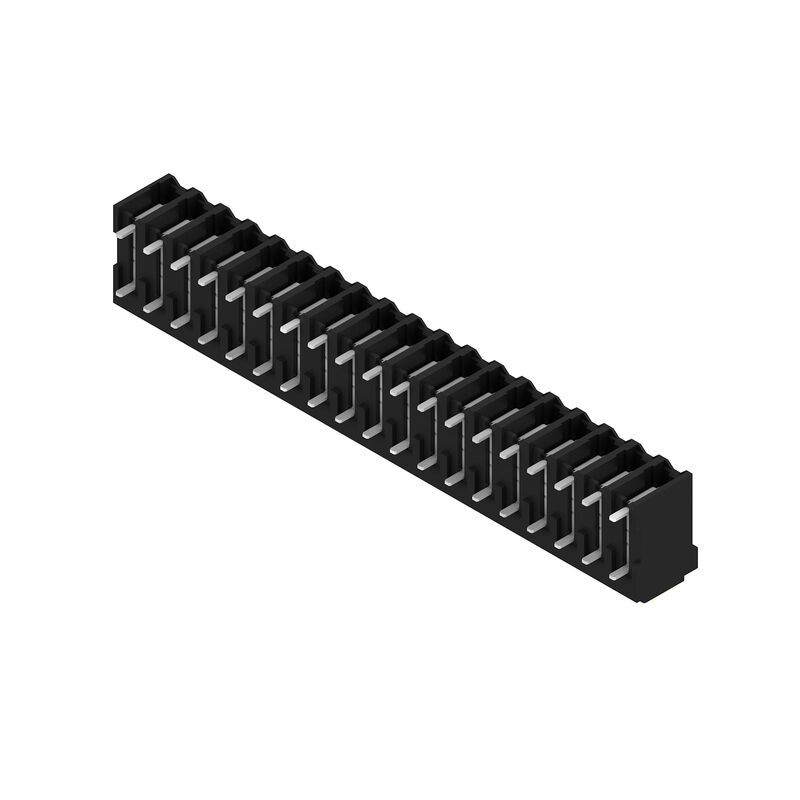

Product image
LSF-SMT 3.81/19/90 1.5SN BK TU
Product image
LSF-SMT 3.81/19/90 1.5SN BK TU
Dimensional drawing
LSF-SMT 3.81/19/90 1.5SN BK TU
Graph
LSF-SMT 3.81/19/90 1.5SN BK TU
Graph

LSF-SMT 3.81/19/90 1.5SN BK TU

Printed circuit board terminals, 3.81 mm, Number of poles: 19, 90°, Solder pin length (l): 1.5 mm, black, PUSH IN with push button, Clamping range, max. : 1.5 mm², Tube

Produkt ID 1869540000
Download datablad Engineering Support Product Downloads
Anvendte produkter 66
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance System parameters Material data Conductors suitable for connection Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Type tests Important note Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Version
Printed circuit board terminals, 3.81 mm, Number of poles: 19, 90°, Solder pin length (l): 1.5 mm, black, PUSH IN with push button, Clamping range, max. : 1.5 mm², Tube
Order No.
1869540000
Type
LSF-SMT 3.81/19/90 1.5SN BK TU
GTIN (EAN)
4032248445394
Qty.
7  Styk
Product data
IEC: 320 V / 17.5 A / 0.2 - 1.5 mm²
UL: 300 V / 12 A / AWG 28 - AWG 14
Packaging
Tube

Dimensions and weights

Depth
14,75  mm
Depth (inches)
0,581  inch
Height
10  mm
Height (inches)
0,394  inch
Height of lowest version
8,5  mm
Width
72,78  mm
Width (inches)
2,865  inch
Net weight
13,664  g

Temperatures

Continuous operating temp., max.
120  °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System parameters

Product family
OMNIMATE Signal - series LSF
Wire connection method
PUSH IN with push button
Mounting onto the PCB
THT/THR solder connection
Conductor outlet direction
90°
Pitch in mm (P)
3,81  mm
Pitch in inches (P)
0,15  "
Number of poles
19
Pin series quantity
1
Fitted by customer
No
Number of rows
1
Solder pin length (l)
1,5  mm
Solder pin length tolerance
0 / -0.3 mm
Solder pin dimensions
0.35 x 0.8 mm
Solder pin dimensions = d tolerance
0 / -0.1 mm
Solder eyelet hole diameter (D)
1,1  mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
Number of solder pins per pole
2
Stripping length
8  mm
L1 in mm
68,58  mm
L1 in inches
2,7  "
Touch-safe protection acc. to DIN VDE 0470
IP 20
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch
Protection degree
IP20
Volume resistance
1.60 mΩ

Material data

Insulating material
LCP GF
Colour
black
Colour chart (similar)
RAL 9011
Insulating material group
IIIa
Comparative Tracking Index (CTI)
≥ 175
Moisture Level (MSL)
1
UL 94 flammability rating
V-0
Contact material
Copper alloy
Layer structure of solder connection
4...6 µm Sn matt
Storage temperature, min.
-40  °C
Storage temperature, max.
70  °C
Operating temperature, min.
-50  °C
Operating temperature, max.
120  °C
Temperature range, installation, min.
-30  °C
Temperature range, installation, max.
120  °C

Conductors suitable for connection

Clamping range, min.
0,13  mm²
Clamping range, max.
1,5  mm²
Wire connection cross section AWG, min.
AWG 28
Wire connection cross section AWG, max.
AWG 14
Solid, min. H05(07) V-U
0,2  mm²
Solid, max. H05(07) V-U
1,5  mm²
Flexible, min. H05(07) V-K
0,2  mm²
Flexible, max. H05(07) V-K
1,5  mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0,25  mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
0,75  mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0,25  mm²
w. wire end ferrule, DIN 46228 pt 1, max.
1,5  mm²
Clampable conductor
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,25 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9025760000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,34 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9025770000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0690700000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,75 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9021040000
Reference text
Length of ferrules is to be chosen depending on the product and the rated voltage.
The outside diameter of the plastic collar should not be larger than the pitch (P)

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 60947-7-4
Rated current, min. number of poles (Tu=20°C)
17,5  A
Rated current, max. number of poles (Tu=20°C)
16  A
Rated current, min. number of poles (Tu=40°C)
17,5  A
Rated current, max. number of poles (Tu=40°C)
14  A
Rated voltage for surge voltage class / pollution degree II/2
320  V
Rated voltage for surge voltage class / pollution degree III/2
160  V
Rated voltage for surge voltage class / pollution degree III/3
160  V
Rated impulse voltage for surge voltage class/ pollution degree II/2
2,5  kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
2,5  kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
2,5  kV
Short-time withstand current resistance
3 x 1s with 80 A

Rated data acc. to CSA

Institute (CSA)
CSA
Certificate No. (CSA)
200039-1664286
Rated voltage (Use group B / CSA)
300  V
Rated voltage (Use group D / CSA)
300  V
Rated current (Use group B / CSA)
10  A
Rated current (Use group D / CSA)
10  A
Wire cross-section, AWG, min.
AWG 28
Wire cross-section, AWG, max.
AWG 14
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group B / UL 1059)
300  V
Rated voltage (Use group D / UL 1059)
300  V
Rated current (Use group B / UL 1059)
12  A
Rated current (Use group D / UL 1059)
10  A
Wire cross-section, AWG, min.
AWG 28
Wire cross-section, AWG, max.
AWG 14
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

Packaging
Tube
VPE length
557  mm
VPE width
21  mm
VPE height
15  mm
Surface resistance
Rs = 109 - 1012 Ω

Type tests

Test: Durability of markings
  • Standard:
    DIN EN 60512-1-1 / 01.03
  • Test:
    mark of origin, type identification, pitch, durability
  • Evaluation:
    available
  • Test:
    approval marking UL
  • Evaluation:
    on packaging label
Test: Clampable cross section
  • Standard:
    DIN EN 60999-1 section 7 and 9.1 / 12.00, DIN EN 60947-1 section 8.2.4.5.1 / 12.02
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.14 mm²
    • Type of conductor and conductor cross-section:
      stranded 0.14 mm²
    • Type of conductor and conductor cross-section:
      solid 1.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 1.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 24/1
    • Type of conductor and conductor cross-section:
      AWG 24/19
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed
Test for damage to and accidental loosening of conductors
  • Standard:
    DIN EN 60999-1 section 9.4 / 12.00
  • Requirement:
    0.2 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 24/1
    • Type of conductor and conductor cross-section:
      AWG 24/19
  • Evaluation:
    passed
  • Requirement:
    0.3 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      stranded 0.25 mm²
    • Type of conductor and conductor cross-section:
      solid 0.5 mm²
  • Evaluation:
    passed
  • Requirement:
    0.4 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 1.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 1.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed
Pull-out test
  • Standard:
    DIN EN 60999-1 section 9.5 / 12.00
  • Requirement:
    ≥10 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 24/1
    • Type of conductor and conductor cross-section:
      AWG 24/19
  • Evaluation:
    passed
  • Requirement:
    ≥20 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      stranded 0.25 mm²
    • Type of conductor and conductor cross-section:
      H05V-U0.5
  • Evaluation:
    passed
  • Requirement:
    ≥40 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U1.5
    • Type of conductor and conductor cross-section:
      H07V-K1.5
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Additional push button colours on request
  • Operating force of slider max. 40 N
  • Rated current related to rated cross-section & min. No. of poles.
  • Wire end ferrule with plastic collar to DIN 46228/4
  • Wire end ferrule without plastic collar to DIN 46228/1
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • Crimping shape "A" for wire end ferrules with PZ 6/5 crimping tool recommended.
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months
