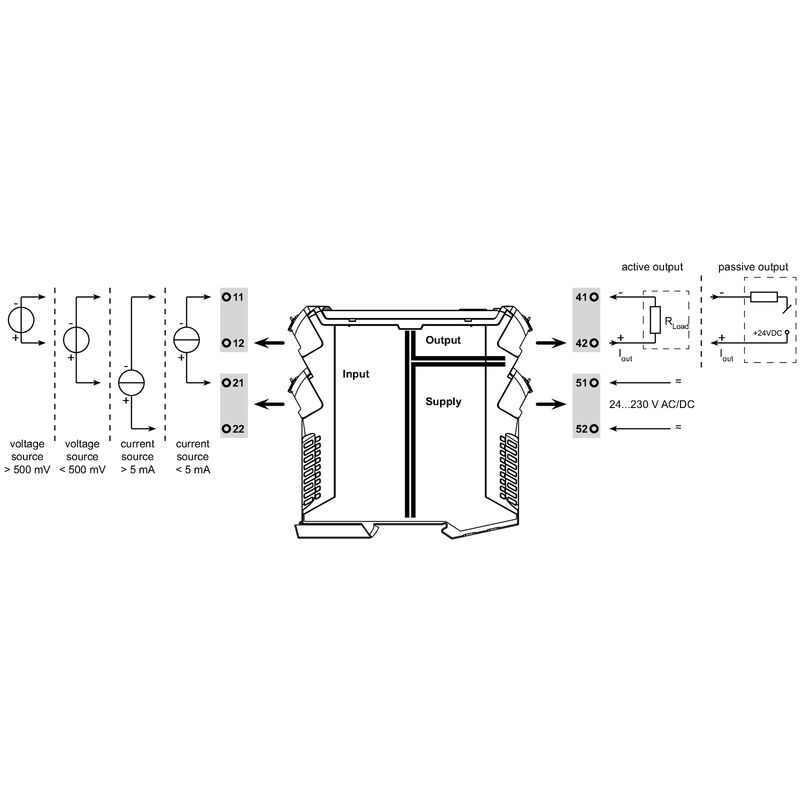

Wiring
ACT20P-PRO DCDC II-S
ACT20P-PRO DCDC II-S
ACT20P-PRO DCDC II-S
Dimensioned drawing
ACT20P-PRO DCDC II-S
Similar to illustration
ACT20P-PRO DCDC II-S
ACT20P-PRO DCDC II-S

ACT20P-PRO DCDC II-S

Analogue isolating amplifier, 24…230 V AC/DC power supply, Input : I/U universal, Output : I/U universal

Produkt ID 1481970000
Download datablad Engineering Support Software Support Product Downloads
Tilbehør 2 Enkeltdele 1 Anvendte produkter 9
Approvals General ordering data Dimensions and weights Temperatures Probability of failure Environmental Product Compliance Input Output Display General data Insulation coordination Data for Ex applications (ATEX) Connection data Important note Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319217/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_322323/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319213/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319234/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319240/-S800/-T1z1mm-S80)
Approvals
CULUS;
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E314307
Certificate no. (cULusEX)
E345958

General ordering data

Version
Analogue isolating amplifier, 24…230 V AC/DC power supply, Input : I/U universal, Output : I/U universal
Order No.
1481970000
Type
ACT20P-PRO DCDC II-S
GTIN (EAN)
4050118291032
Qty.
1  Styk

Dimensions and weights

Depth
113,7  mm
Depth (inches)
4,476  inch
Height
119,2  mm
Height (inches)
4,693  inch
Width
12,5  mm
Width (inches)
0,492  inch
Net weight
130  g

Temperatures

Storage temperature
-40 °C...85 °C
Operating temperature
-20 °C...60 °C
Humidity at operating temperature
0...95 % (no condensation)
Humidity
5...95 %, no condensation

Probability of failure

SIL in compliance with IEC 61508
None
MTBF
76  a

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
2f6dd957-421a-46db-a0c2-cf1609156924

Input

Input current
configurable
± 0.1mA...± 100 mA
Measuring range min. 200 µA
Input resistance, current
<5 mA: approx. 100 Ω; >5 mA: approx. 5 Ω
Input resistance, voltage
≥ 1 MΩ
Input signal
Current or voltage input is selectable
Input voltage
configurable
±40 mV…±300 V
Measuring range. min 40 mV
(Example: 0...+40 mV or -40...0 mV or -20....+20 mV or….)
Measuring range, max: 300 V
Number of inputs
1
Sensor
4- wire sensor (with own power supply)

Output

Cut-off frequency (-3 dB)
> 10 kHz/ <10 Hz
Load impedance current
≤ 600 Ω
load impedance voltage
≥ 1 kΩ
Offset current
20 µA
Offset voltage
<10 mV
Output current
configurable
0...±20 mA
Output voltage, note
Adjustable
0...±10 V
Type
active (as current source) or passive (as current sink)
connected control can be active / passive

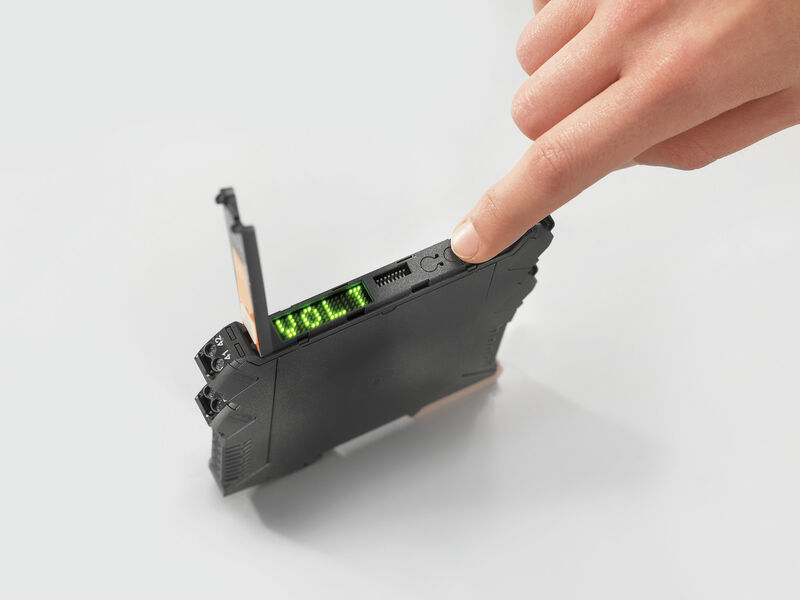

Display

Display value
current measured value

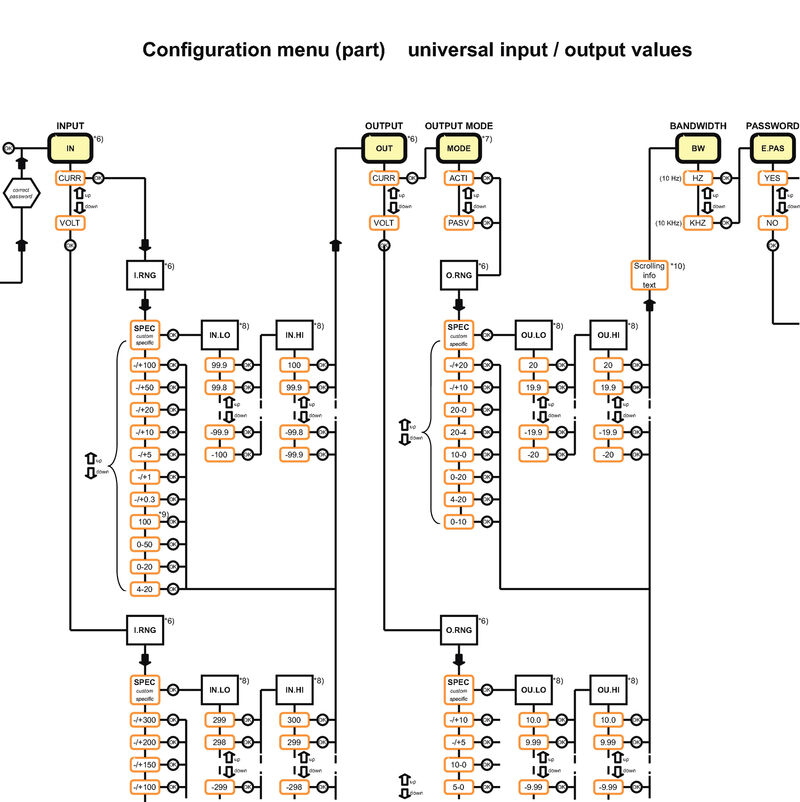

Configuration data
Type
Dot-matrix display with ticker text, green

General data

Accuracy
<0.05 % of measuring range

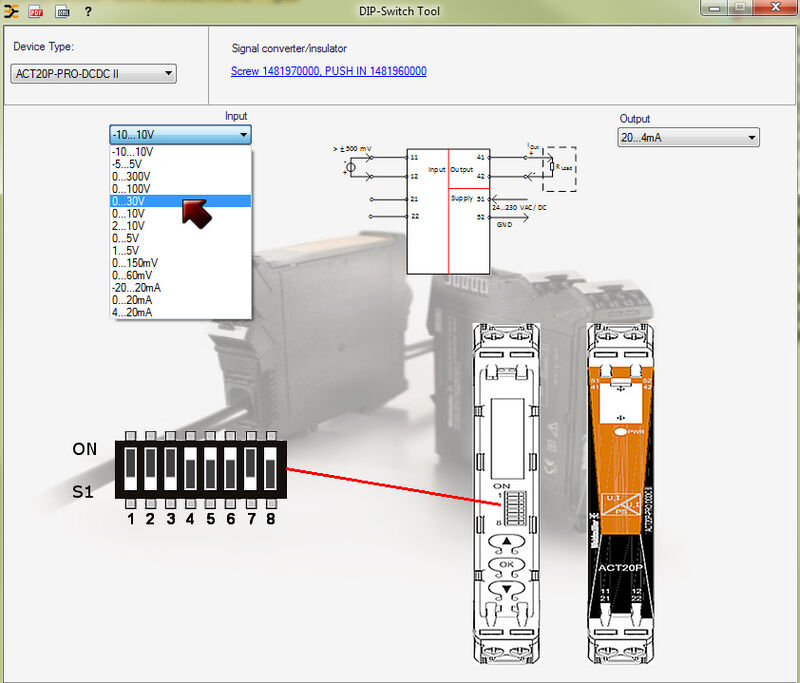

Configuration
DIP switch
or via display and push-buttons
Nominal power consumption
2  VA
Operating altitude
≤ 2000 m
Power consumption
≤2.3 W
Protection degree
IP20
Rail
TS 35
Step response time
≤50 µs
Temperature coefficient
≤0,01% des Messbereichs⁄°C
Voltage supply
24…230 V DC ±20 %
24…230 V AC ±10 % @ 48…62 Hz

Insulation coordination

EMC standards
EN 61326-1
Galvanic isolation
3-way isolator
between input ⁄ output ⁄ supply
Impulse withstand voltage
5 kV (1.2/50 µs)
Insulation voltage
4 kVeff
input / output / power supply
Pollution severity
2
Rated voltage
600 V
Surge voltage category
II

Data for Ex applications (ATEX)

Marking
II 3 G Ex nA IIC T4 Gc

Connection data

Type of connection
Screw connection
Tightening torque, min.
0,4  Nm
Tightening torque, max.
0,6  Nm
Clamping range, rated connection
2,5  mm²
Clamping range, min.
0,5  mm²
Clamping range, max.
2,5  mm²
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section AWG, max.
AWG 12

Important note

Product information
The universally configurable DC isolating amplifier ACT20P-PRO DCDC II isolates and converts analogue signals. An analogue input signal (current or voltage) is linearly converted into an analogue output signal (current or voltage) and galvanically isolated. The power supply is galvanically isolated from the input and output (3-way isolation).

Properties
  • universal wide-range voltage supply
  • universally configurable via DIP switch or via the LED display using control buttons
  • Active or passive signal output
  • Operating status display on a front panel LED
  • Galvanic 3-way isolation between input, output and supply.
