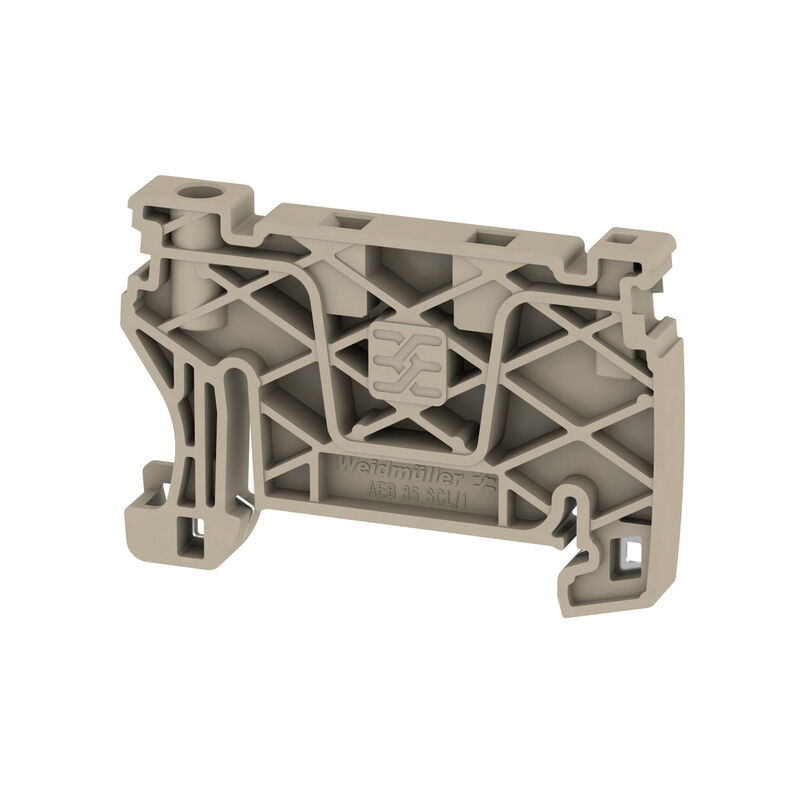

AEB 35 SCL/1 V0

A-series, End bracket

Item No. 2661280000

Properties

General ordering data

Version	A-series, End bracket
Order No.	2661280000
Type	AEB 35 SCL/1 V0
GTIN (EAN)	4050118702163
Qty.	20 items

Dimensions and weights

Depth	36.5 mm
Depth (inches)	1.437 inch
Depth including DIN rail	37 mm
Height	52.6 mm
Height (inches)	2.071 inch
Width	6 mm
Width (inches)	0.236 inch
Net weight	5.55 g

Temperatures

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-60 °C
Continuous operating temp., max.	130 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%
Product Carbon Footprint	Cradle to gate: 0.064 kg CO2 eq.

Material data

Material	Wemid
Colour	dark beige
UL 94 flammability rating	V-0

System specifications

Rail

TS 35

Additional technical data

Interlock	screwless
Type of mounting	Snap-on

General

Rail

TS 35

Downloads

Approval/Certificate/Document of Conformity	[Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_205632)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.2661280000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2661280000)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2661280000&norm=0)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC001041
ETIM 7.0	EC001041
ETIM 8.0	EC001041
ETIM 9.0	EC001041
ECLASS 9.0	27-14-11-35
ECLASS 9.1	27-14-11-35
ECLASS 10.0	27-14-11-35
ECLASS 11.0	27-14-11-35
ECLASS 12.0	27-14-11-35
ECLASS 13.0	27-25-03-02
ECLASS 14.0	27-25-03-02

Approvals

ROHS

Conform
