Properties
| Version | A-series, End plate |
| Order No. | 2668790000 |

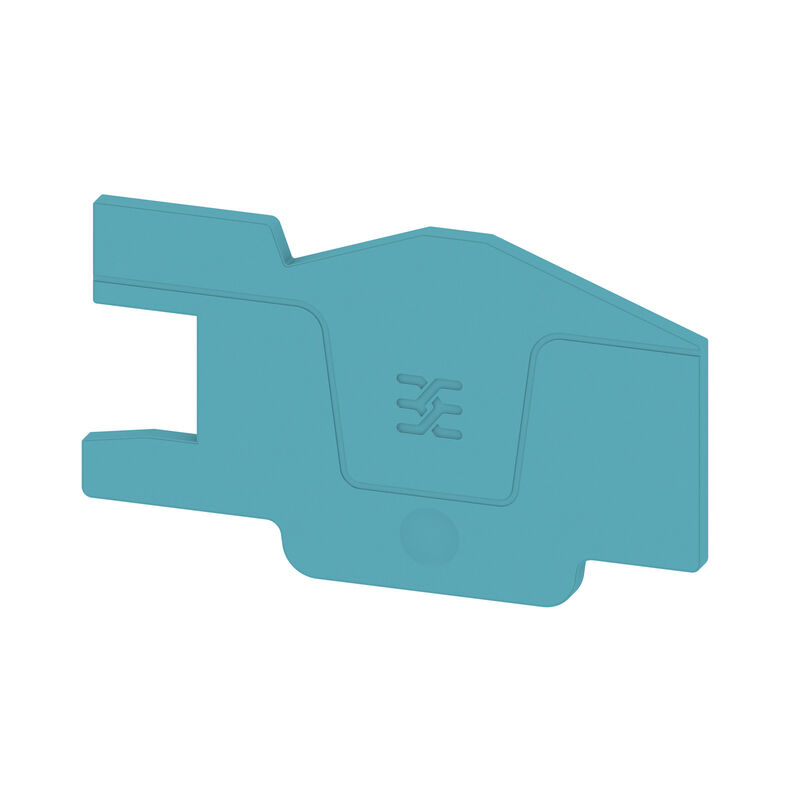

| Type | AEP ITB 2.5 BB 2C BL |
| GTIN (EAN) | 4064675030416 |
| Qty. | 20 items |
| Depth | 36.55 mm |
| Depth (inches) | 1.439 inch |
| Height | 62.64 mm |
| Height (inches) | 2.466 inch |
| Width | 2.1 mm |
| Width (inches) | 0.083 inch |
| Net weight | 2.55 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| REACH SVHC | / |
| Material | Wemid |
| Colour | blue |
| UL 94 flammability rating | V-0 |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_251691) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2668790000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2668790000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000886 |
| ETIM 7.0 | EC000886 |
| ETIM 8.0 | EC000886 |
| ETIM 9.0 | EC000886 |
| ECLASS 9.1 | 27-14-11-33 |
| ECLASS 10.0 | 27-14-11-33 |
| ECLASS 11.0 | 27-14-11-33 |
| ECLASS 12.0 | 27-14-11-33 |
| ECLASS 13.0 | 27-25-03-01 |
