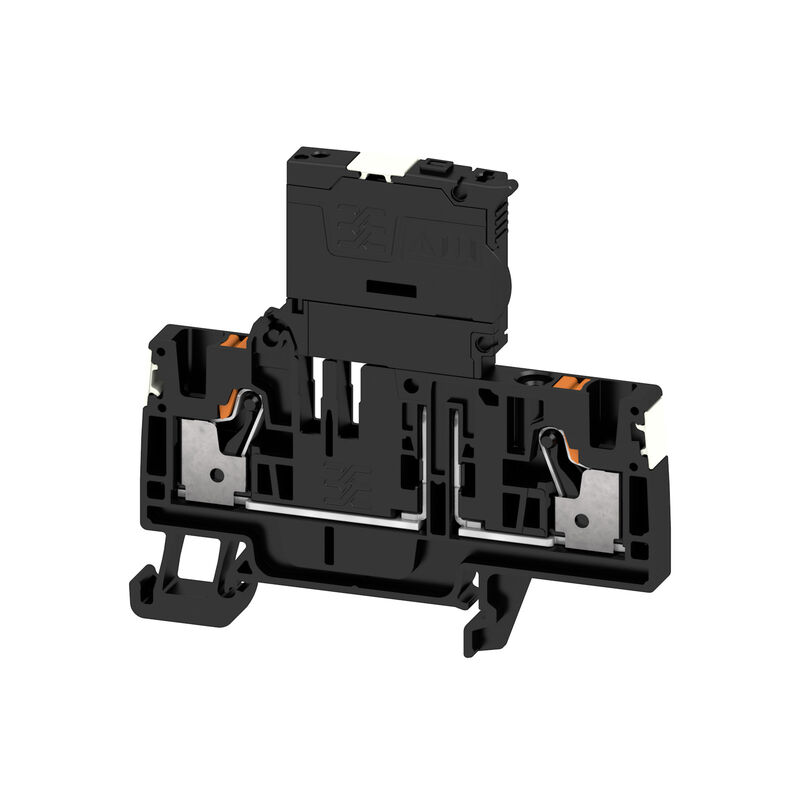

Fuse terminal, PUSH IN, 4 mm², 250 V, 6.3 A, black

Item No. 2675290000
Open in Configurator
Download data sheet Engineering Support Product Downloads
Accessories 37 Related products 239
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data Rating data IECEx/ATEX System specifications Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) Fuse terminals General Rating data Classifications

Approvals

Omologazioni
![](https://assets.dam.weidmueller.com/assets/api/8761d6a8-633c-4aff-8793-97a5d2b0ca50/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/35c2d189-508a-474d-b19d-eb9035fb9c7c/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0a8958f9-c226-4e12-af16-493ec79d92c5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
Fuse terminal, PUSH IN, 4 mm², 250 V, 6.3 A, black
N. d’ordine
2675290000
Tipo
AFS 4 2C 100-250V DL BK
GTIN (EAN)
4050118733433
Qty.
50 items

Dimensions and weights

Profondeur
68 mm
Depth (inches)
2,677 inch
Depth including DIN rail
69 mm
Posizione verticale
74 mm
Height (inches)
2,913 inch
Szélesség
6,1 mm
Width (inches)
0,24 inch
Net weight
19,11 g

Temperatures

보관 온도
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C

Environmental Product Compliance

RoHS 준수 상태
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Colour
black
UL 94 flammability rating
V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)
TUEV17ATEX8064U
Certificate No. (IECEX)
IECEXTUR17.0030U
Current (ATEX)
6.3 A
Wire cross section max. (ATEX)
4 mm²
Current (IECEX)
6.3 A
Wire cross section max. (IECEX)
4 mm²

System specifications

End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of potentials per tier
1
Levels cross-connected internally
Yes
Mounting rail
TS 35
N-function
No
PE function
No
PEN function
No

Additional technical data

Open sides
right
Type of mounting
TS 35

Conductors for clamping (additional connection)

Connection type, additional connection
PUSH IN

Conductors for clamping (rated connection)

Blade size
0.6 x 3.5 mm
Clamping range, max.
6 mm²
Clamping range, min.
0,14 mm²
Connection cross-section, finely stranded, min.
0,14 mm²
Connection cross-section, stranded, max.
6 mm²
Connection cross-section, stranded, min.
0,14 mm²
Connection direction
top
Gauge to IEC 60947-1
A4
Number of connections
2
Stripping length
12 mm
Tube length for twin wire-end ferrule
  • Tube length:
    • min.:
      8 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • min.:
      0,5 mm²
    • max.:
      1,5 mm²
Tube length for wire-end ferrule with plastic collar DIN 46228/4
  • Tube length:
    • min.:
      6 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • min.:
      0,5 mm²
    • max.:
      1 mm²
  • Tube length:
    • min.:
      8 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • min.:
      1,5 mm²
    • max.:
      2,5 mm²
  • Tube length:
    • min.:
      10 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • nominal:
      4 mm²
Tube length for wire-end ferrule without plastic collar DIN 46228/1
  • Tube length:
    • min.:
      6 mm
    • max.:
      10 mm
  • Cross-section for conductor connection:
    • min.:
      0,5 mm²
    • max.:
      1 mm²
  • Tube length:
    • min.:
      7 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • min.:
      1,5 mm²
    • max.:
      2,5 mm²
  • Tube length:
    • min.:
      9 mm
    • max.:
      15 mm
  • Cross-section for conductor connection:
    • min.:
      4 mm²
    • max.:
      6 mm²
Twin wire-end ferrules, max.
1,5 mm²
Twin wire-end ferrules, min.
0,5 mm²
Type of connection
PUSH IN
Type of connection 2
PUSH IN
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section, finely stranded, max.
6 mm²
Wire connection cross section, finely stranded, min.
0,14 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
6 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,14 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,14 mm²
Wire connection cross-section, solid core, max.
4 mm²
Wire connection cross-section, solid core, min.
0,14 mm²

Fuse terminals

Leakage current, max.
0,5 mA
Type of voltage for indicator
AC/DC
카트리지 퓨즈
G-Si. 5 x 20
퓨즈 홀더(카트리지 홀더)
Pivoting

General

Ledardiameter, AWG, max
AWG 12
Ledardiameter, AWG, min.
AWG 26
Mounting rail
TS 35
Normer
DIN EN 60947-7-3

Rating data

Rated cross-section
4 mm²
Rated voltage
250 V
Rated DC voltage
250 V
Nominal current
6,3 A
Current at maximum wires
6,3 A
Standards
DIN EN 60947-7-3
Volume resistance according to IEC 60947-7-x
1 mΩ
Rated impulse withstand voltage
4 kV
Power loss in accordance with IEC 60947-7-x
1,02 W
Pollution severity
3
Surge voltage category
III

Classifications

ETIM 8.0
EC000899
ETIM 9.0
EC000899
ETIM 10.0
EC000899
ECLASS 14.0
27-25-01-13
ECLASS 15.0
27-25-01-13
