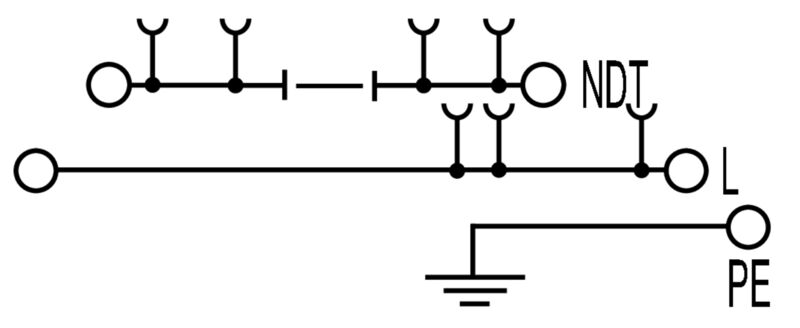

Multi level installation terminal block, PUSH IN, dark beige, 2.5 mm², 24 A, 250 V, Number of connections: 5, Number of levels: 3

Item No. 2669030000
Open in Configurator
Download data sheet Engineering Support Product Downloads
Accessories 32 Related products 67
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Conductors for clamping (rated connection) CSA rating data General Rating data UL rating data Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/756ea985-024d-4142-85a7-acc2e9775394/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Version
Multi level installation terminal block, PUSH IN, dark beige, 2.5 mm², 24 A, 250 V, Number of connections: 5, Number of levels: 3
Order No.
2669030000
Type
AITB 2.5 NDT-L-PE
GTIN (EAN)
4064675030614
Qty.
50 items

Dimensions and weights

Depth
50.1 mm
Depth (inches)
1.972 inch
Height
103 mm
Height (inches)
4.055 inch
Width
5.1 mm
Width (inches)
0.201 inch
Net weight
13.324 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Colour
dark beige
Colour of operational elements
orange
UL 94 flammability rating
V-0

System specifications

End cover plate required
Yes
Number of potentials
3
Number of levels
3
Number of clamping points per level
2
Levels cross-connected internally
No
Mounting rail
TS 35
N-function
No
PE function
Yes
PEN function
No

Additional technical data

Open sides
right
Snap-on
Yes
Type of mounting
Snap-on

Conductors for clamping (rated connection)

Connection direction
top
Dimens. caña destornillador
0.6 x 3.5 mm
Embouts doubles, max.
0.75 mm²
Embouts doubles, min.
0.5 mm²
Gauge to IEC 60947-1
A3
Klemmbereich, max.
4 mm²
Longueur de tube pour embout avec collerette plastique DIN 46228/4
  • Tube length:
    • min.:
      6 mm
    • max.:
      8 mm
  • Cross-section for conductor connection:
    • min.:
      0.14 mm²
    • max.:
      0.34 mm²
  • Tube length:
    • min.:
      6 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • min.:
      0.5 mm²
    • max.:
      1 mm²
  • Tube length:
    • min.:
      8 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • min.:
      1.5 mm²
    • max.:
      2.5 mm²
Lunghezza tubo per terminali senza collare in plastica DIN 46228/1
  • Tube length:
    • nominal:
      5 mm
  • Cross-section for conductor connection:
    • nominal:
      0.25 mm²
  • Tube length:
    • min.:
      6 mm
    • max.:
      10 mm
  • Cross-section for conductor connection:
    • min.:
      0.5 mm²
    • max.:
      1 mm²
  • Tube length:
    • min.:
      7 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • min.:
      1.5 mm²
    • max.:
      2.5 mm²
Number of connections
5
Plage de serrage, min.
0.14 mm²
Section de raccordement du conducteur, AWG, min.
AWG 28
Section de raccordement du conducteur, rigide, max.
4 mm²
Section de raccordement du conducteur, rigide, min.
0.14 mm²
Section de raccordement du conducteur, souple avec embout DIN 46228/1, max.
4 mm²
Section de raccordement du conducteur, souple avec embout DIN 46228/1, min.
0.14 mm²
Section de raccordement du conducteur, souple avec embout DIN 46228/4, max.
2.5 mm²
Section de raccordement du conducteur, souple avec embout DIN 46228/4, min.
0.14 mm²
Section de raccordement du conducteur, souple, max.
4 mm²
Section de raccordement du conducteur, souple, min.
0.14 mm²
Section de raccordement, semi-rigide, max.
4 mm²
Section de raccordement, semi-rigide, min.
0.14 mm²
Stripping length
10 mm
Tube length for twin wire-end ferrule
  • Tube length:
    • min.:
      8 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • min.:
      0.5 mm²
    • max.:
      0.75 mm²
Typ připojení
PUSH IN
Type of connection 2
PUSH IN
Wire connection cross section AWG, max.
AWG 12

CSA rating data

Certificate No. (CSA)
200039-70089609
Current size B (CSA)
20 A
Current size C (CSA)
20 A
Current size D (CSA)
10 A
Ledararea max. (CSA)
12 AWG
Napięcie rozm. C (CSA)
300 V
Voltage size B (CSA)
300 V
Voltage size D (CSA)
300 V
Wire cross section min. (CSA)
26 AWG

General

Mounting rail
TS 35
Standards
IEC 60947-7-1 (-7-2)
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 28

Rating data

Rated cross-section
2.5 mm²
Rated voltage
250 V
Rated DC voltage
250 V
Nominal current
24 A
Current at maximum wires
27 A
Standards
IEC 60947-7-1 (-7-2)
Volume resistance according to IEC 60947-7-x
1.33 mΩ
Rated impulse withstand voltage
4 kV
Power loss in accordance with IEC 60947-7-x
0.77 W
Rated voltage (L / L)
400 V
Rated voltage (L / N)
250 V
Rated voltage (L / PE)
250 V
Pollution severity
3
Surge voltage category
III

UL rating data

Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
12 AWG
Conductor size Factory wiring min. (cURus)
26 AWG
Conductor size Field wiring max. (cURus)
12 AWG
Conductor size Field wiring min. (cURus)
26 AWG
Current size B (cURus)
20 A
Current size C (cURus)
20 A
Current size D (cURus)
10 A
Voltage size B (cURus)
300 V
Voltage size C (cURus)
300 V
Voltage size D (cURus)
300 V

Classifications

ETIM 8.0
EC001329
ETIM 9.0
EC001329
ETIM 10.0
EC001329
ECLASS 14.0
27-25-01-10
ECLASS 15.0
27-25-01-10
