Properties
| Version | Tools, Sheathing strippers |
| Order No. | 9030060000 |

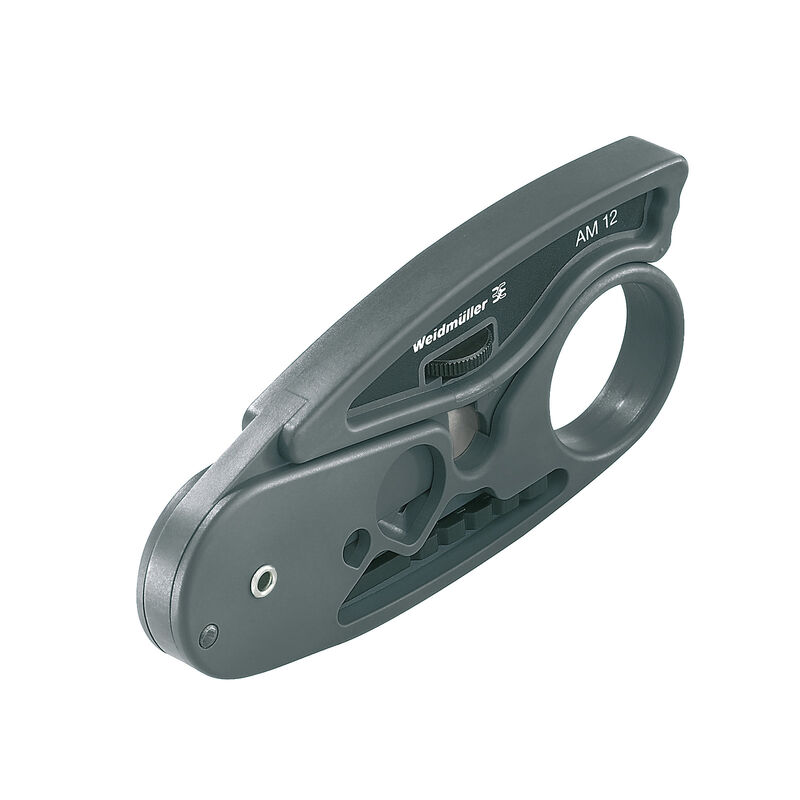

| Type | AM 12 |
| GTIN (EAN) | 4008190337827 |
| Qty. | 1 items |
| Depth | 10 mm |
| Depth (inches) | 0.394 inch |
| Height | 46 mm |
| Height (inches) | 1.811 inch |
| Width | 97 mm |
| Width (inches) | 3.819 inch |
| Net weight | 32.42 g |
| RoHS Compliance Status | Not affected |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | cf06c250-ed1e-4a45-9c1b-c5c8cbf13bf0 |

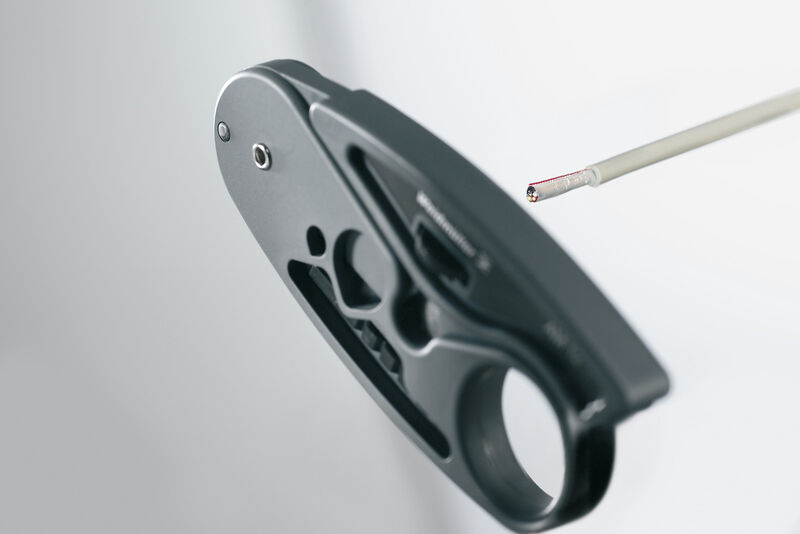

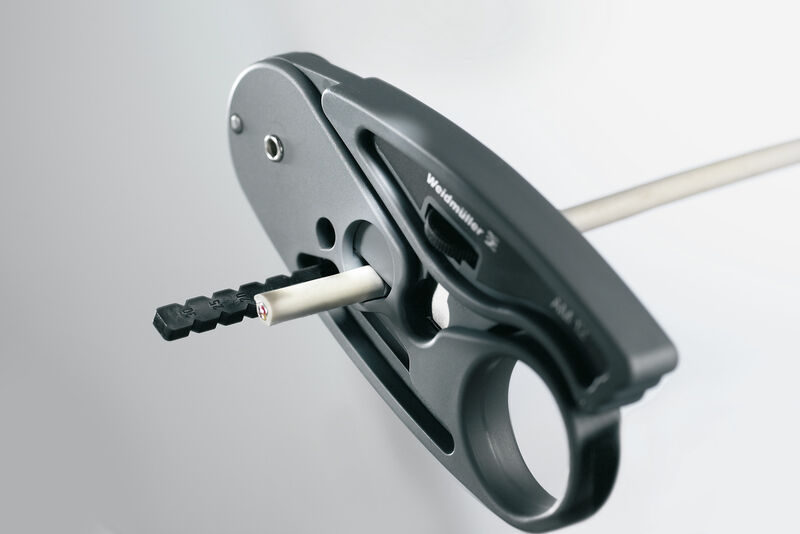

| Description of article | Sheathing stripper for UTP and STP data cables |
| Cable type | UTP and STP data cables |
| Conductor cross-section, min. | 0.25 mm² |
| Copper cable - flexible, max. | 4 mm² |
| Cut depth | adjustable |
| Max. conductor diameter | 12.5 mm |
| Min. conductor diameter | 0.5 mm |
| Stripping range AWG, max. | 11 AWG |
| Stripping range AWG, min. | 18 AWG |
| UTP und STP data cables, max. diameter | 8 mm |
| User Documentation | [Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_101206) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000163 |
| ETIM 7.0 | EC000163 |
| ETIM 8.0 | EC000163 |
| ETIM 9.0 | EC000163 |
| ECLASS 9.0 | 21-04-90-90 |
| ECLASS 9.1 | 21-04-37-06 |
| ECLASS 10.0 | 21-04-90-90 |
| ECLASS 11.0 | 21-04-90-90 |
| ECLASS 12.0 | 21-04-90-90 |
| ECLASS 13.0 | 21-04-90-90 |
| ECLASS 14.0 | 21-04-90-90 |
