Properties
| Version | Tools, Sheathing strippers |
| Order No. | 9204190000 |
| Type | AM 16 |
| GTIN (EAN) | 4032248608133 |
| Qty. | 1 items |
| Depth | 41 mm |
| Depth (inches) | 1.614 inch |
| Height | 53 mm |
| Height (inches) | 2.087 inch |
| Width | 58 mm |
| Width (inches) | 2.283 inch |
| Net weight | 56.9 g |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | cf06c250-ed1e-4a45-9c1b-c5c8cbf13bf0 |

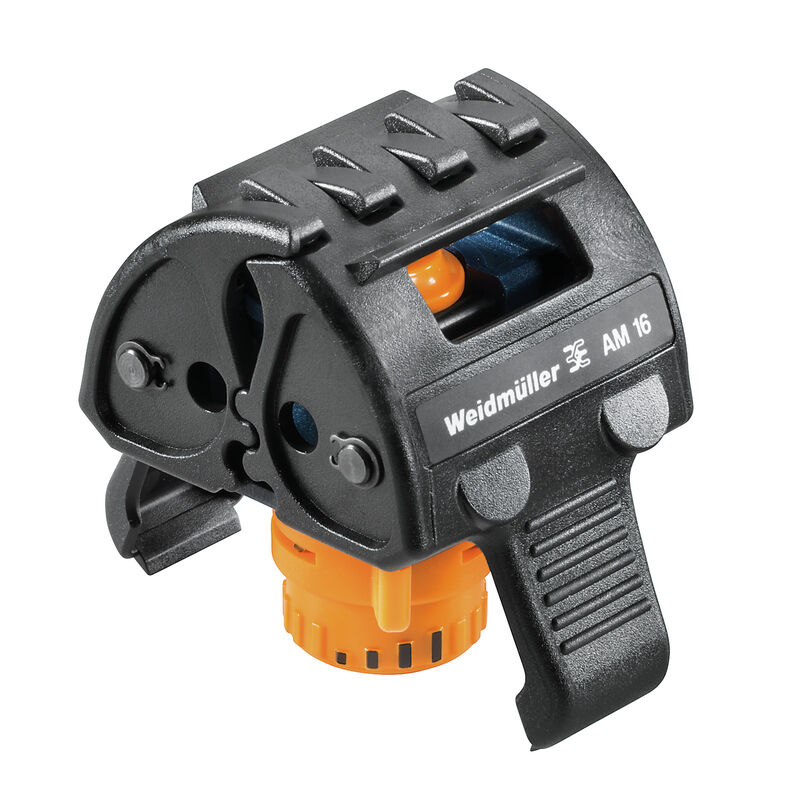

| Description of article | Sheathing strippers |
| Cable type | Round cable |
| Cut depth | 0.8 - 2.5 mm |
| Max. conductor diameter | 17 mm |
| Min. conductor diameter | 5 mm |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_66810) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=9204190000) |
| User Documentation | [Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_101174) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000163 |
| ETIM 7.0 | EC000163 |
| ETIM 8.0 | EC000163 |
| ETIM 9.0 | EC000163 |
| ECLASS 9.0 | 21-04-90-90 |
| ECLASS 9.1 | 21-04-37-06 |
| ECLASS 10.0 | 21-04-90-90 |
| ECLASS 11.0 | 21-04-90-90 |
| ECLASS 12.0 | 21-04-90-90 |
| ECLASS 13.0 | 21-04-90-90 |
