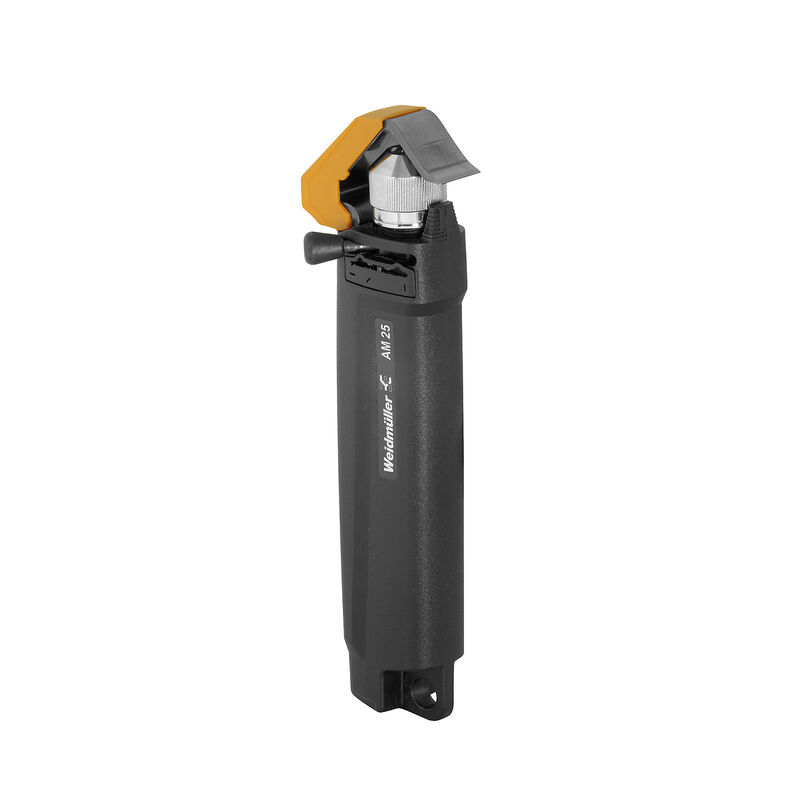

AM 25

Tools, Sheathing strippers

Item No. 9001540000

Properties

General ordering data

Version	Tools, Sheathing strippers
Order No.	9001540000
Type	AM 25
GTIN (EAN)	4008190138271
Qty.	1 items

Dimensions and weights

Depth	33 mm
Depth (inches)	1.299 inch
Height	157 mm
Height (inches)	6.181 inch
Width	47 mm
Width (inches)	1.85 inch
Net weight	120.67 g

Environmental Product Compliance

RoHS Compliance Status	Not affected
REACH SVHC	Lead 7439-92-1
SCIP	cf06c250-ed1e-4a45-9c1b-c5c8cbf13bf0

Technical data

Description of article

Sheathing strippers

Stripping tools

Cable type	PVC round cable
Cut depth	adjustable up to 4.5 mm
Max. conductor diameter	25 mm
Min. conductor diameter	6 mm

Downloads

Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_66790)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=9001540000)
User Documentation	[Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_101194)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000163
ETIM 7.0	EC000163
ETIM 8.0	EC000163
ETIM 9.0	EC000163
ECLASS 9.0	21-04-90-90
ECLASS 9.1	21-04-37-06
ECLASS 10.0	21-04-90-90
ECLASS 11.0	21-04-90-90
ECLASS 12.0	21-04-90-90
ECLASS 13.0	21-04-90-90
ECLASS 14.0	21-04-90-90
